Selecting the right wattage for a nozzle band heater is crucial for efficient and effective heating in various industrial applications. As a nozzle band heater supplier, I've seen firsthand how the wrong wattage can lead to all sorts of problems, from inconsistent heating to equipment damage. In this blog post, I'll share some tips on how to choose the right wattage for your nozzle band heater.
Understanding Wattage Basics
Before we dive into the selection process, let's quickly go over what wattage is and why it matters. Wattage is a measure of the rate at which electrical energy is converted into heat. In the context of a nozzle band heater, it determines how quickly and how hot the heater can get. A higher wattage heater will heat up faster and reach higher temperatures, but it will also consume more electricity. On the other hand, a lower wattage heater will heat up more slowly and may not be able to reach the desired temperature, especially in larger or more demanding applications.
Factors to Consider When Selecting Wattage
There are several factors you need to take into account when choosing the right wattage for your nozzle band heater. Let's take a look at each of these factors in more detail.
1. Size of the Nozzle
One of the most important factors is the size of the nozzle. Larger nozzles generally require more wattage to heat up evenly and quickly. This is because they have a larger surface area that needs to be heated, and more heat is lost to the surrounding environment. As a rule of thumb, you should aim for a watt density of around 10-15 watts per square inch for most applications. To calculate the surface area of your nozzle, you can use the following formula:
Surface Area (in²) = π x Diameter (in) x Length (in)
Once you have the surface area, you can estimate the wattage needed by multiplying the surface area by the desired watt density.
2. Desired Temperature
The temperature you need to reach also plays a significant role in wattage selection. If you need to heat the nozzle to a very high temperature, you'll need a higher wattage heater. However, it's important to note that most nozzle band heaters have a maximum temperature rating, so make sure you choose a heater that can handle the temperature you need. You can usually find the maximum temperature rating on the heater's product specifications.
3. Insulation
The level of insulation around the nozzle can also affect the wattage requirement. If the nozzle is well-insulated, less heat will be lost to the surrounding environment, and you'll need less wattage to maintain the desired temperature. On the other hand, if the nozzle is poorly insulated, more heat will be lost, and you'll need a higher wattage heater to compensate.
4. Heating Time
How quickly you need to heat up the nozzle is another factor to consider. If you need to heat the nozzle up rapidly, you'll need a higher wattage heater. However, keep in mind that a higher wattage heater will also consume more electricity, so there's a trade-off between heating time and energy consumption.
Calculating the Required Wattage
Now that you understand the factors that affect wattage selection, let's go through the steps to calculate the required wattage for your nozzle band heater.
- Determine the Surface Area: Use the formula mentioned earlier to calculate the surface area of your nozzle.
- Choose the Watt Density: Based on the application and the type of material being heated, choose an appropriate watt density. As mentioned before, a watt density of 10-15 watts per square inch is a good starting point for most applications.
- Calculate the Wattage: Multiply the surface area by the watt density to get the required wattage. For example, if the surface area of your nozzle is 20 square inches and you choose a watt density of 12 watts per square inch, the required wattage would be 20 x 12 = 240 watts.
Types of Nozzle Band Heaters and Their Wattage Requirements
There are several types of nozzle band heaters available, each with its own unique characteristics and wattage requirements. Let's take a look at some of the most common types.
1. Blow Moulding Machine Heater Band
Blow moulding machine heater bands are used in the production of plastic containers and other hollow objects. They typically require a high wattage to heat the plastic quickly and evenly. The wattage requirements can vary depending on the size of the machine and the type of plastic being used, but generally range from 500 to 2000 watts.
2. Modular Band Heater
Modular band heaters are designed to be easily installed and removed, making them ideal for applications where the heater needs to be replaced or serviced frequently. They come in a variety of sizes and wattages, and can be customized to fit specific requirements. The wattage of modular band heaters can range from a few hundred watts to several thousand watts.

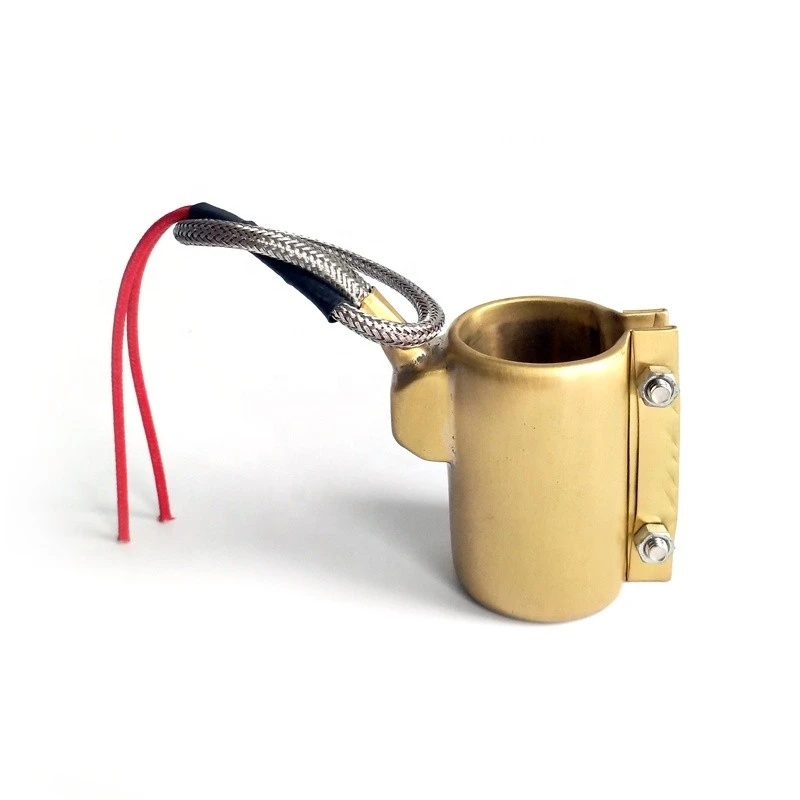

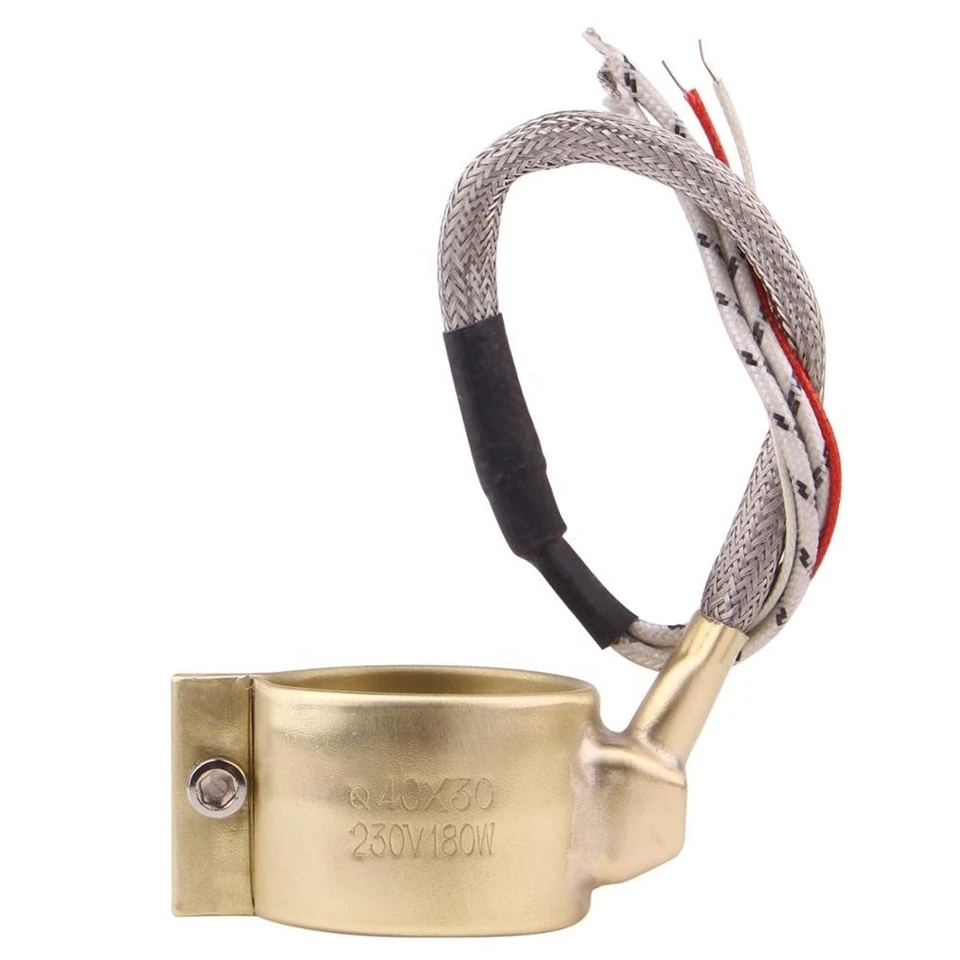

3. Brass Nozzle Band Heaters
Brass nozzle band heaters are known for their high thermal conductivity and durability. They are often used in applications where fast and efficient heating is required. The wattage of brass nozzle band heaters can vary depending on the size and design of the heater, but typically range from 100 to 1000 watts.
4. Mica Nozzle Band Heater
Mica nozzle band heaters are popular because they are inexpensive and easy to manufacture. They offer good insulation and can handle a wide range of temperatures. The wattage of mica nozzle band heaters can range from a few tens of watts to several hundred watts.
5. Industrial Nozzle Heater
Industrial nozzle heaters are designed for heavy-duty applications and can provide high levels of heat. They are often used in industries such as plastics processing, food processing, and chemical manufacturing. The wattage of industrial nozzle heaters can be quite high, ranging from several thousand watts to tens of thousands of watts.
Working with a Supplier
When it comes to selecting the right wattage for your nozzle band heater, it's always a good idea to work with a reputable supplier. A supplier with experience in the industry can help you determine the best wattage for your specific application and provide you with high-quality heaters that meet your requirements.
At our company, we have a team of experts who can assist you in selecting the right wattage for your nozzle band heater. We offer a wide range of nozzle band heaters, including Blow Moulding Machine Heater Band, Modular Band Heater, Brass Nozzle Band Heaters, Mica Nozzle Band Heater, and Industrial Nozzle Heater. Our heaters are made from high-quality materials and are designed to provide reliable and efficient heating.
If you're in the market for a nozzle band heater or need help selecting the right wattage, don't hesitate to contact us. We'd be happy to discuss your requirements and help you find the perfect solution for your application.
Conclusion
Selecting the right wattage for a nozzle band heater is essential for achieving optimal performance and efficiency. By considering factors such as the size of the nozzle, the desired temperature, the level of insulation, and the heating time, you can calculate the required wattage and choose a heater that meets your needs. Working with a reputable supplier can also provide you with expert advice and high-quality products.
If you have any questions or need further assistance with selecting the right wattage for your nozzle band heater, please feel free to reach out to us. We're here to help you make the best choice for your application.
References
- Fundamental Principles of Industrial Heating, Industrial Heating Equipment Manufacturers' Association
- Handbook of Plastics Processing, O. Olabisi
