Cartridge heaters are essential heating components for industrial applications. Their compact cylindrical design enables efficient heat transfer in confined spaces. These heaters are commonly used in:
Jaye Heater's Cartridge Heater Features:
Heating Coil: High grade nickel chromium resistance wire
Insulation: Magnesium Oxide (MgO) And Mgo Tube.
Sheath: SUS304, SUS321, SUS316L, Incoloy800, 840, Titanium
Sealing: Ceramics, silicone, glass, RTV adhesive, silicone oil, etc
Termination: Allowing for terminations with leads either straight or at a right angle.
Lead Wire Type: Fiberglass is the typical lead wire in high-temperature industrial settings, though variations may be employed based on specific task requirements.
Cartridge heaters made by Jaye have two types of outlet leads: crimped-on or swaged-in Leads construction that consists in a high-grade nickel chromium resistance wire wound around a high-quality MgO core or tube that is centered in a stainless steel casing. Compared with the same large heat electric heating element, Cartridge Heater can save 5% of the electrothermal material, and the thermal efficiency can reach more than 90%.
In swaged-in lead wire configuration, the lead wire is mechanically secured to the cartridge heater using a swaging process. This involves tightly compressing the lead wire against the heater sheath.
Advantages: Provides a robust mechanical connection, reducing the risk of detachment. Improved resistance to vibration and mechanical stress.
Crimp-on lead wire involves attaching the lead wire to the cartridge heater by crimping a metal connector onto the exposed end of the heater's lead.
Advantages: Relatively simple and cost-effective. Allows for easier replacement of lead wires if needed.
Choosing between swaged-in and crimp-on lead wires often depends on the specific requirements of the application. Swaged-in leads are preferred for applications with high vibration or mechanical stress, where a more secure connection is crucial. Crimp-on leads may be suitable for applications where cost-effectiveness and ease of replacement are higher priorities.

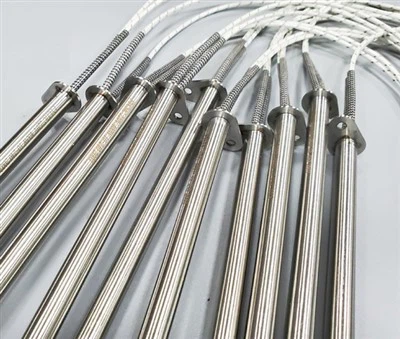

Products Description Cartridge Heaters for Plastic Injection Mold Heating Systems are suitable for plastic injection mold heating because they provide high power density, precise temperature control, and uniform heat distribution , meeting the requirements of rapid heating...

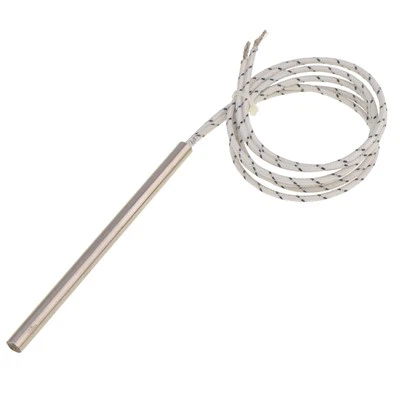

Cartridge Heater for Tissue Packaging Machines In the fast-paced world of tissue packaging, every second counts. From facial tissues to toilet paper rolls, packaging lines demand consistent, reliable heat to ensure perfect seals, high throughput, and minimal downtime. Jaye...
Products Description I/U/W/L/Round tubular fin heating element is constructed from premium-grade stainless steel, high-purity magnesium oxide (MgO) powder, and electrically resistant heating elements integrated with stainless steel fins. This finned heating element is...
Products Description The Single End Rod Hollow Cartridge Heater is an industrial-grade heating element engineered for high-efficiency thermal transfer in demanding applications. Its core construction integrates a seamless metal sheath (commonly SS304, 321, 316, or...
Products Description Electric Heating Rod Insertion Cartridge Heater is a type of industrial heating element typically constructed with a ceramic cap, magnesium oxide (MgO) powder or tubing, a nickel-chromium alloy resistance wire (such as NiCr2080), high-temperature lead...
A Cartridge Heater with Metal Braided Wire is a cylindrical, tubular heating element that is externally sheathed with a flexible, braided metal sleeve (typically stainless steel).
Metal Processing Cartridge Heaters, or cartridge heaters, are cylindrical heating elements with a heating element wrapped around a ceramic core. These heaters provide a pleasing and dependable approach to apply focused heat at high temperatures, particularly where compact,...
Square Type Cartridge Heater is an efficient heat source designed for varied industrial applications that require accurate and uniform temperature. A square design allows for a better use of space and improved application specific heating, compared to a cylindrical cartridge...
Flat Type Cartridge Heater is a unique electrical heating element that is utilized across a number of different industries. The flat shape enables easier use in tight or specialized spaces, when compared with traditional round cartridge heaters. The heater's primary...
A high performance cartridge heater is a type of tubular heating element used to for localized heating in industrial processes that require accurate control. The cartridge heater is inserted in drilled holes in metal blocks for localized heat delivery! it provides heat...
The heating cartridge is a small and efficient piece of equipment that produces heat inside the hotend construction of 3D printers. The heating cartridge is meant to heat the hotend to the proper temperature. When the desired temperature is achieved, the filament can be...
Cartridge Heaters are high-performance cylindrical heating elements designed for precision thermal applications. Engineered to embed directly into metal cavities, they deliver rapid, localized heat transfer-making them ideal for 3D printer hotends, heated beds, and auxiliary...
Cartridge heaters are extensively used in plastic injection molding processes to heat the molds and maintain optimal temperature for molding materials.
In extrusion applications, cartridge heaters are employed to heat and maintain the temperature of extruder barrels, ensuring proper material flow and processing.
Cartridge heaters are used in packaging machinery for tasks such as sealing, cutting, and forming, where controlled and localized heating is necessary.
Cartridge heaters are utilized in medical equipment, such as sterilization chambers, fluid warming devices, and diagnostic equipment induustry applications
Cartridge heaters play a role in aerospace applications, including de-icing systems, thermal testing, and ensuring consistent temperatures in sensitive components.
Cartridge heaters are used in food processing equipment for tasks like heating molds, sealing packaging, and maintaining specific temperatures in cooking or baking processes.
Cartridge heaters are employed in 3D printers to heat the print bed or extruder, helping control the viscosity of the printing material.
Cartridge heaters are found in various laboratory devices, such as ovens, incubators, and analytical equipment requiring controlled heating.
Cartridge heaters are used to heat liquids or gases in tanks, pipes, or vessels in industrial settings.
Cartridge heaters find applications in automotive manufacturing, such as in the heating elements of fluid circulation systems and engine testing.
The versatility of cartridge heaters, along with their ability to provide localized and precise heating, makes them suitable for a wide range of industrial processes. Their compact design allows for easy integration into different systems where controlled and efficient heating is essential.
