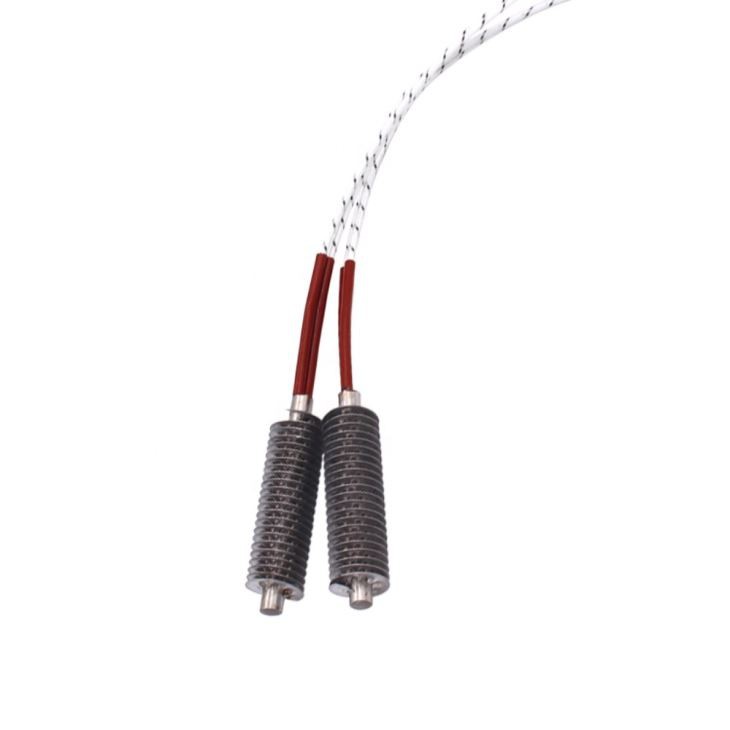

The finned electric cartridge heater is the fins wounded on the basis of the Cartridge Heater (single-headed electric heated tube), so that the surface temperature of the single-headed electric heating tube can be uniformly dissipated.The advantage of the finned cartridge ignitor heater made by Jaye industry is the high heating efficiency, uniformly heating dissipating, high quality and long working service life time.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of finned cartridge ignitor heater in China, also supports custom service. Welcome to wholesale high quality finned cartridge ignitor heater at competitive price from our factory.
The finned cartridge ignitor heater is the fins wounded on the basis of the Cartridge Heater (single-headed electric heated tube), so that the surface temperature of the single-headed electric heating tube can be uniformly dissipated. Generally, the finned electric cartridge heater is used in dry air burning and liquid heating environment. When heating the electric pipe, you need to pay attention to the hot air circulation and temperature control, so as to extend the life of the electric cartridge heater.
Technical parameters of Finned Cartridge Ignitor Heater:
Item name | 120V 300W 3/8'' x 3 1/4'' finned cartridge ignitor heater |
Resistance heating wire | Ni-Cr or Fe-Cr |
Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti |
Insulation | High-purity MgO |
Maximum temperature | 800 degree Celsius |
Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
Power available | according to your requirement |
Wattage Tolerance | +5%, -10% |
Thermocouple | K type or J type |
Lead wire | 300mm length; Different type of wire (Teflon/silicone high temperature fiber glass) is available |
The advantage of the finned cartridge ignitor heater made by Jaye industry is the high heating efficiency, uniformly heating dissipating, high quality and long working service life time.
If you have any requirements, please let us know your detail specifications with the information of the diameter, length, Voltage, watt and if possible, technical drawing will be best.
