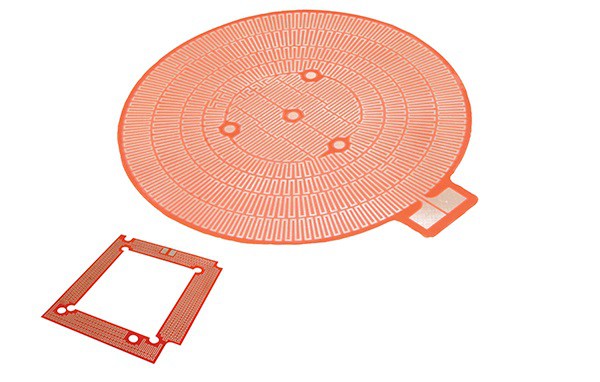

Etched Foil silicone heaters are made by using a metallic foil laminated to a silicone rubber sheet. The sheet is printed with the desired circuit pattern then chemically etched, leaving the printed pattern. Another layer of silicone rubber is then vulcanized over the top of the circuit. Wide range of options for the Silicone rubber Heater made by Jaye industry can provide for customers to ensure that the desired performance characteristics are met. Thermostats, thermistors, specialty lead wire configurations, insulating foam layering, dual-voltage output, registration holes and cutouts are just a few of the ways to choose.
Etching: A thin metal foil is chemically etched to create the desired heating pattern.
Lamination: The etched foil is laminated between layers of silicone rubber.
Curing: The assembly is cured to bond the layers and enhance durability.
Testing: Each heater is tested for electrical continuity, insulation resistance, and thermal performance to ensure quality and reliability.
Thin Metal Foil: Made by etching a thin metal foil (usually nickel or nickel-chromium alloy) into a specific pattern.
Uniform Heating: Provides even heat distribution across the surface due to the precise etching pattern.
Rapid Heating: Thin foil design allows for faster heat-up times.
Thin Profile: Generally thinner than wire-wound heaters, making them ideal for applications with tight space constraints.
Custom Patterns: The etched design can be tailored to fit specific heating requirements and complex shapes.
The advantage of etched foil heaters The thermal control and thermal precision of the etched foil heater is also due to the large surface area of the etched element. The flat surface area of the etched element provides a uniform and significantly more surface for efficient...
Etched Foil Heater Etched foil heater can be manufactured from etched foil or from resistance wire as a wire wound circuit.The circuit pattern is vulcanized between two layers of silicon rubber and can be easily mounted to heat sinks or devices that need to be heated. Its...
Compared with wire-wound silicone heating elements, the silicone rubber etching foil heating element offer greater heat coverage and up to twice the wattage density of wire wound. The foil thickness range depending on your required heater resistance. Etched designs are...
Constant temperature is very important for the blood analysis work. Jaye industry make the silicone rubber heater mat for blood analyzer, this silicone rubber heater is available both with the etched foil heating element and wire wound heating element. A silicone rubber...
Silicone rubber heaters made by Jaye industry are widely used in the medical device indu stry, and also very popular on the X Ray, CT, MRI scanner heating. An etched foil or a wire wound silicone rubber heater is bonded to the developer tray in an automatic Scanner machine....
Silicone rubber heaters made by Jaye industry are very popular used on the food service industry, they are installed under stainless steel food warming tables at fast food restaurants. Like the KFC, McDonald's or other restaurants or hotel. The heaters maintain water at...
Jaye Industry provide the etched silicone rubber heating element which designed to the exact shape and size needed, the heaters conforms the component or equipment you want. It is lightweight and flexible. Use of these silicone heaters without limitation, it can be applied to...
High temperature glass fiber etched silicone rubber heater made by Jaye industry is composed of two pieces of glass fiber cloth and silica gel glass fiber cloth made of two pieces of pressed silica gel. Etching (0.02mm) metal foil plate be pressed onto silica gel sheet.
According to the CAD drawing output film, through the printing and etching process to the required film. As it is a sheet product (standard thickness is 1.5mm), it has good flexibility and can fully contact with the heated object. Because of its flexibility, it is easier to...
Silicone Rubber Etched Foil Heater are made by using a metallic foil laminated to a silicone rubber sheet. The sheet is printed with the desired circuit pattern then chemically etched, leaving the printed pattern.Another layer of silicone rubber is then vulcanized over the...
If you need a silicone rubber heater with a higher temperature without sacrificing flexibility, the high temperature silicone heater is your right choise,Jaye makes the high temperature silicone rubber heater customized, you can customize any shape or size of the the silicone...
Battery Heating Silicone heater is a kind of Silicone rubber heater desgined especially for heating the battery, mainly used in the new energy cars.the most suitable working temperature (charge and discharge) is 35 ~ 45 ℃.
Etched foil flexible heaters, known for their thin profile, precise heat distribution, and rapid response time, are employed in a wide range of applications across various industries. Here are some common applications:
Etched foil flexible heaters' versatility, efficiency, and reliability make them ideal for these and many other applications, where precise temperature control and rapid response times are essential.
