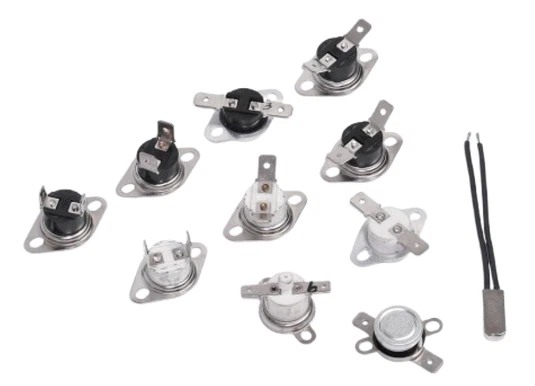

KSD thermostats made by Jaye Heater Technology offer reliable temperature control with several key advantages. Featuring a snap-action mechanism, they ensure quick and precise temperature regulation by opening or closing the circuit when the preset temperature is reached. These thermostats are compact, durable, and cost-effective, making them ideal for use in home appliances, automotive, and industrial heating systems. With a wide temperature range and high accuracy, they provide consistent performance, enhancing the safety and efficiency of heating devices. Jaye Heater Technology's KSD thermostats are built to last, offering both reliability and longevity for various applications.
|
Voltage & Current |
AC 125V max 15A; AC250V 5A 10A 15A max 16A |
|
Circuit resistance |
≤50mΩ (Initial value) |
|
Insulation resistance |
AC50Hz 1500V / min, no breakdown blinding (Normal State) |
|
Life cycle |
≥100000 times |
|
Contact type |
Normally closed or Normally open |
A = Contact Opens When Temperature Rises to Set Point (Normally Closed)
B = Contact Closes When Temperature Rises to Set Point (Normally Open)
M = Manual Reset
The Grade of Temp. Tolerance is "A", When The Operating Temp. is Less Than 105℃.
The Grade of Temp. Tolerance is "B", When The Operating Temp. is Over 106℃.
|
Grade |
A |
B |
|
Action ±°C |
3 |
5 |
|
Reset +°C |
4 |
8 |
|
|
|
|
|
|
KSD301-P01 |
KSD301-P02 |
KSD301-P03 |
KSD301-P04 |
|
|
|
|
|
|
KSD301-P05 |
KSD301-P06 |
KSD301-P07 |
KSD301-P08 |
|
|
|
|
|
|
KSD301-P09 |
KSD301-P10 |
KSD301-P11 |
KSD301-P12 |
|
|
|
|
|
|
KSD301-P17 |
KSD301-P18 |
KSD301-P19 |
KSD301-P20 |
|
|
|
|
|
|
KSD301-P21 |
KSD301-P22 |
KSD301-P23 |
KSD301-P24 |
|
|
|
|
|
|
KSD301-P25 |
KSD301-P26 |
KSD301-P27 |
KSD301-P28 |
