Engineered for optimal thermal management in demanding industrial applications, nozzle band heaters deliver precise temperature control for critical plastic processing operations. These high-performance heating elements maintain consistent thermal profiles at injection molding and extrusion nozzles, ensuring:
• Continuous material flow - Preventing premature solidification
• Process stability - Maintaining viscosity parameters
• Production consistency - Delivering uniform product quality

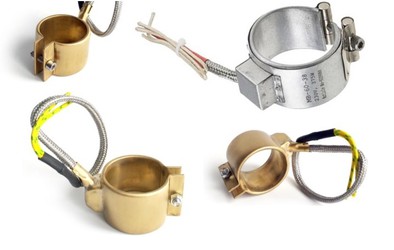

Nozzle band heaters are available in mica, ceramic, micro tubular and sealed type. Nozzle band heaters with inbuilt thermocouple are also available. Band heaters can be found in several types of dimensions, wattage, voltages and material. All types of required Nizzle Band Heater can be custom made by Jaye Heater.
| Operating temperature range: | 50°C to 450°C (standard) |
| Watt densities | up to 35 W/cm² available |
| Multiple voltage configurations | 120V, 240V, 480V |
| Temperature Sensor | J type of K type thermocouple |
Post terminals provide critical electrical connections for nozzle band heaters, ensuring reliable power transmission. Here are the key terminal types and their applications:
Follow this checklist to ensure you order the correct nozzle band heater from Jaye Heater for your application:

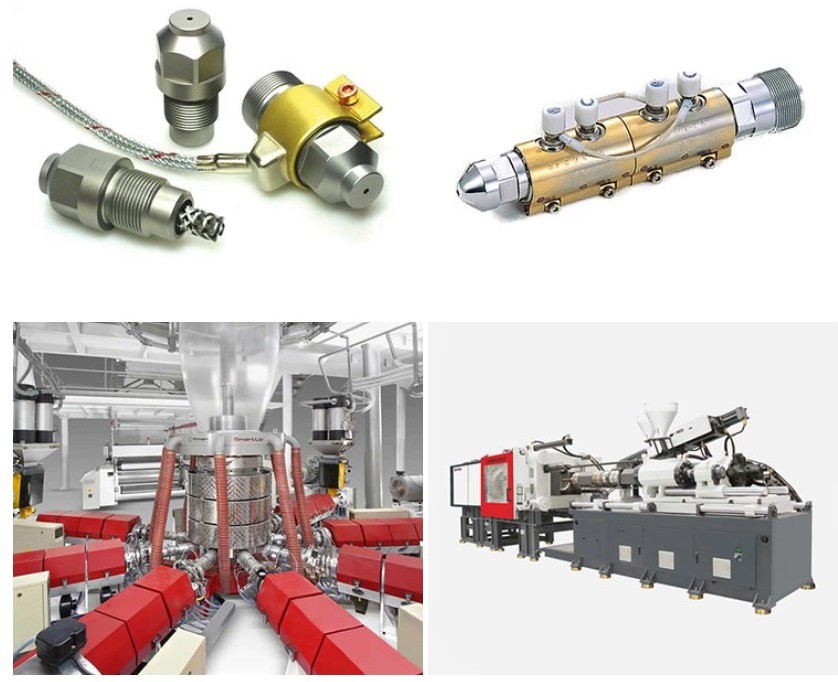

Nozzle Band Heaters, also known as Extruder Nozzle Heaters, are designed for heating and maintaining the temperature of injection molding and extrusion machine nozzles. Installed tightly around the nozzle, they efficiently convert electrical energy into heat, ensuring stable...
A Brass Nozzle Band Heater is a cylindrical clamp-on electric heater specifically designed to fit snugly around brass nozzles used in plastic injection molding, extrusion, or hot runner systems.
Injection Brass Nozzle Mica Band Heater Jaye Heater specializes in manufacturing premium-quality Injection Brass Nozzle Mica Band Heaters, designed to deliver fast, efficient, and uniform heating for plastic injection molding machines. With durable mica-insulated...
Brass Coils heater for packaging machine, also known as brass immersion heaters or brass heating elements, are precision heating elements designed for efficient nozzle heating in a variety of industrial and commercial applications.
A Brass Nozzle Band Heater is a specialized heating device designed for precise temperature control in industrial applications, particularly for plastic injection molding machines, extruders, and other equipment requiring localized heating. Made from high-quality brass, this...
The Puzzle Band Heater is a new type of band heater with a unique modular structure. Unlike traditional band heaters, it is easy to install in tight or irregular spaces. Its segmented construction allows it to be assembled piece by piece, making it easier to fit around...
Brass nozzle band heaters for Blow Molding Machines are heating elements specifically designed to fit around the nozzle of a machine, such as an injection molding or extrusion equipment. They provide targeted heating to the nozzle, ensuring consistent and precise temperature...
The Nozzle Band Heater with Steel Braided is a top-quality heating solution that is widely used in a variety of applications. This innovative heater is designed with high-quality materials, making it extremely durable and long-lasting. The Nozzle Band Heater with Steel...
Injection Molding Machine Nozzle Coil Heater Brass Band Heater This state-of-the-art heater has been crafted with precision using top-notch materials, ensuring the highest quality performance for your business needs. With its advanced brass band heater technology, it provides...
A nozzle band heater is a specialized industrial heating element designed to wrap around injection molding machine nozzles or cylindrical components. It provides precise and uniform heating, ensuring consistent material flow and preventing clogs. Widely used in various...
With its high-quality copper and brass construction, Jaye's nozzle band heater is built to last. It offers efficient and uniform heating, ensuring that your equipment operates at its optimum temperature at all times. Designed for easy installation and maintenance, the Copper...
In roder to get a accurate temperature controol, some nozzle heaters need to build in thermocouple. Nozzle Heater With Thermocouple made from Jaye Heater is made of heating wire, mica(insulation), stainless steel(brass)skin and lead wire. The heating temperature can reach...
+
-
1️⃣ Measure Nozzle Diameter (ID within ±0.5mm)
2️⃣ Select Wattage:
20-30 W/cm² for standard plastics
35-50 W/cm² for high-temp materials
3️⃣ Choose Voltage (120V/240V/480V)
4️⃣ Insulation Type:
Mica (up to 450°C)
Ceramic (up to 750°C)
+
-
Installation:
Maintenance:
Avoid:
+
+
-
2-4 years with proper maintenance.
