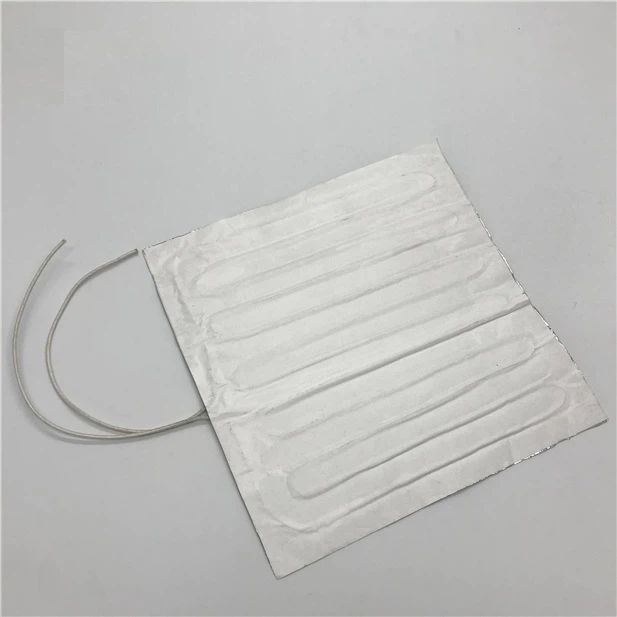

Jaye Heater's Aluminum Foil Defrost Heater is a flexible heating element constructed from a thin, etched aluminum foil circuit laminated between layers of durable insulation, such as silicone rubber or polyimide. This construction creates a heater that is not only highly efficient but also exceptionally thin and conformable. It can be easily customized to fit the specific shape and size of your evaporator coils, ensuring complete coverage and maximum defrosting effectiveness.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum foil defrost heater in China, also supports custom service. Welcome to wholesale high quality aluminum foil defrost heater at competitive price from our factory.
Jaye Heater's Aluminum Foil Defrost Heater is a flexible heating element constructed from a thin, etched aluminum foil circuit laminated between layers of durable insulation, such as silicone rubber or polyimide. This construction creates a heater that is not only highly efficient but also exceptionally thin and conformable. It can be easily customized to fit the specific shape and size of your evaporator coils, ensuring complete coverage and maximum defrosting effectiveness.
| Heating Element | Precision-Etched Aluminum Foil | |||
| Insulation/Substrate | Silicone Rubber, Polyimide (Kapton), or Mica | |||
| Standard Voltages | 12V, 24V, 120V, 240V (Fully Customizable) | |||
| Power Density | Customizable, typically 1 - 10 W/in² | |||
| Max Operating Temperature | Up to 200°C (392°F) depending on insulation | |||
| Thickness | Typically 0.5mm - 1.5mm | |||
| Adhesive | High-Temperature Acrylic or Silicone PSA (Optional) | |||
1
Quality assurance
2
Price advantage
3
Factory wholesale
4
Good service
Configuration:
1. The Heating element can be high temperature PVC or silicone insulated heating cable.
2. This cable is placed between two aluminum sheets or Adhesive at one side only.
3. The aluminum foil element has adhesive backing as standard for quick and easy fixing to the area requiring temperature maintenance.
4. Cut outs in the materical are possible,allowing for perfect fitting to the part on which the element will be mounted.
1. Defrost or freeze protection of refrigerator or ice box
2. Freeze protection of plate heat exchangers
3. Temperature maintenance of heated food counters in canteens
4. Anti-condensation of electronic or electric control boxes
5. Hermetic compressors heating
6. Anti-condensation of bathrooms mirrors
7. Anti-condensation of refrigerated display cabinets
8. Domestic appliances,medical...
9. Seeding, Flower or vesitable Cultivating
