A Polyimide Film Heater is a highly specialized, flexible, and thin-film heating element constructed using a polyimide (often Kapton®) film as both the substrate and the insulation layer.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of polyimide film heater in China, also supports custom service. Welcome to wholesale high quality polyimide film heater at competitive price from our factory.
Products Description
The polyimide film heater core of the heater is an etched-foil element, typically made from a conductive alloy like nickel-chromium (NiCr), which is laminated between or onto layers of the polyimide film. This manufacturing process, derived from printed circuit board (PCB) technology, allows for extreme precision in trace patterning, enabling complex shapes, uniform heat distribution, and integration of features like thermal fuses and sensors directly into the heater.
Products Advantages
While "thin and flexible" are common descriptors, the true engineering advantages are more profound:
Exceptional Thermal Conductivity & Rapid Response: The thinness of the polyimide film and the direct contact of the etched trace with the surface allow for extremely fast heat-up and cool-down times (often in seconds). This enables precise temperature control, crucial for applications like semiconductor processing or medical diagnostic equipment.
Ultra-Thin Profile and Minimal Thermal Mass: With thicknesses as low as 0.07mm, these heaters add negligible bulk and weight. Their low thermal mass means most of the energy is used to heat the target application, not the heater itself, leading to higher efficiency.
Superior Chemical and Radiation Resistance: Polyimide is inherently resistant to most solvents, oils, and fuels. It also withstands exposure to UV light and gamma radiation, making it suitable for harsh environments in aerospace, chemical processing, and medical sterilization (autoclaving).
Excellent Dielectric Strength: The polyimide film acts as a robust electrical insulator, capable of withstanding high voltages (typically 1.5kV to 4kV AC) even at minimal thicknesses. This ensures operational safety and reliability in electrically sensitive systems.
Mechanical Durability and Dimensional Stability: Polyimide maintains its properties across a wide temperature range (-269°C to +400°C). It does not melt or drip, and it exhibits minimal shrinkage or expansion, ensuring long-term reliability under thermal cycling.
Products specifications
Description
Information
Material
Polyimide
Maximum Operating Temperature - C
200 ºC
Maximum Operating Temperature - F
392 ºF
Maximum Watt Densities
7.75 W/cm^2
Maximum Watt Densities
50 W/in^2
Products Applications
Aerospace & Defense: De-icing for UAVs and satellite components, thermal conditioning of avionics, and heating for optical lenses in surveillance systems.
Medical & Life Sciences: Precise heating for Point-of-Care Diagnostic Devices (e.g., PCR cyclers), blood analyzers, respiratory equipment, and patient warming systems. Compatible with autoclave sterilization.
Semiconductor & Electronics Manufacturing: Wafer stage heating, vacuum chamber heating, and thermal management for 3D printing and PCB pre-heating.
New Energy & Automotive: Battery thermal management for EVs (pre-heating cells in cold weather), heating for LiDAR and sensor systems in autonomous vehicles.

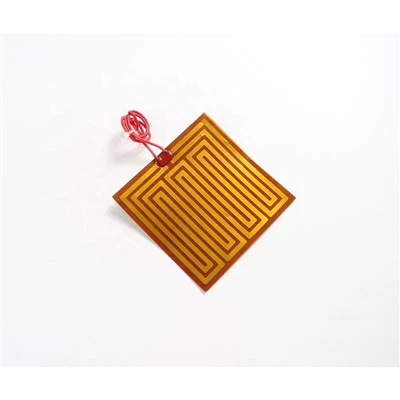

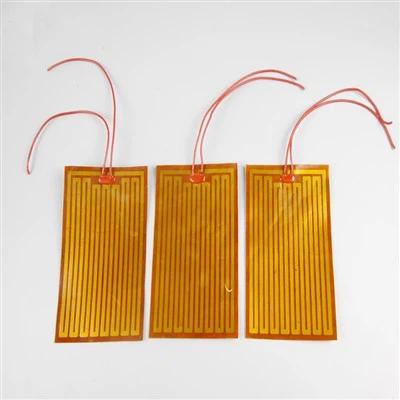

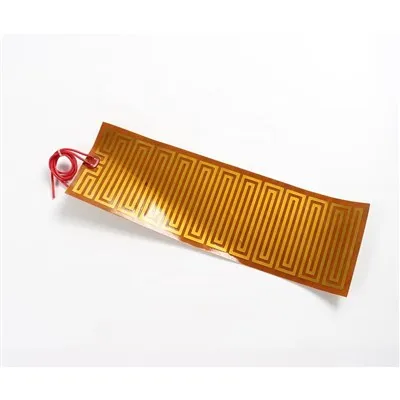

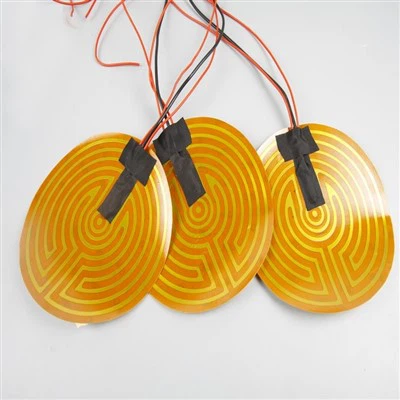

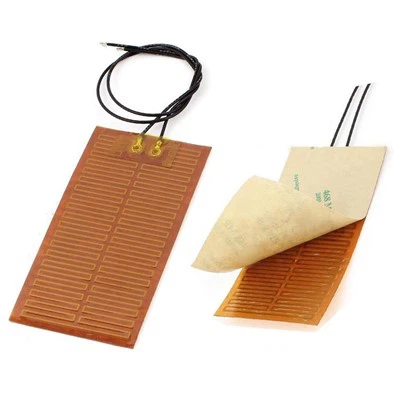

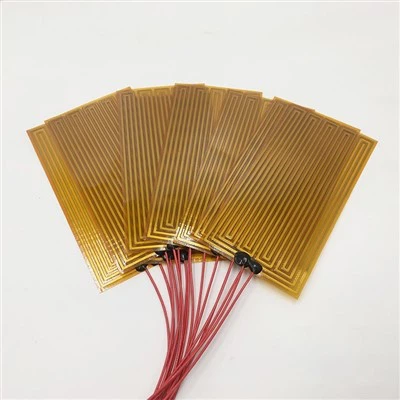

Products Pictures
