Screen-printed Heating Elements On Steel

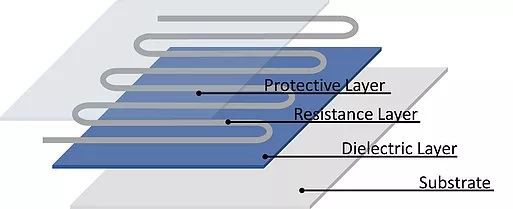

Screen-printed heating elements on steel are manufactured in a completely different way from traditional elements (PTC, electromagnetic, etc.). It is composed of a stainless steel substrate, on which an insulating layer (in accordance with the requirements of dielectric strength) is printed, then a layer of resistive paste, then a contact layer and a connecting layer, and finally all these layers are covered with an insulating layer on top (Only provide protection against mechanical damage).
Features of Screen-printed Heating Elements On Steel
1. The temperature rises rapidly.
2. Very low heat capacity.
3. Small temperature fluctuations.
4. The characteristic of long service life. The heating efficiency is as high as 97%.
Specifications of Screen-printed Heating Elements On Steel
Voltage:220v
Power:Customized
Material:stainless steel
Tube Thickness: 0.8-1 mm
Service Life:>10,000 hours
Screen-printed heating elements on steel is suitable for flat or tubular surfaces. The liquid takes away heat through the contact surface of the substrate to achieve a stable effect. Generally heating liquid, it is not allowed to dry.
