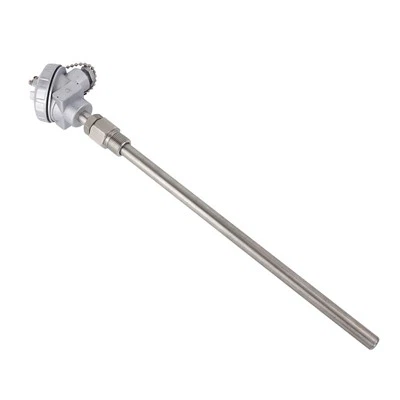

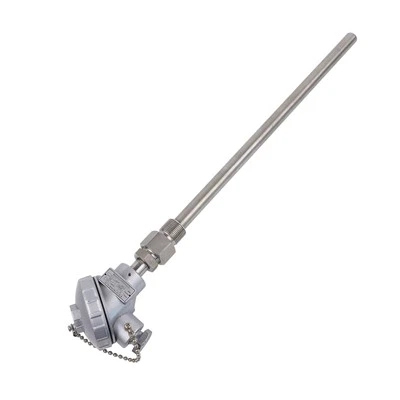

Industrial Thermocouple Accessory Aluminum Kne

The name "KNE HEAD" is often associated with a specific commercial product or design philosophy that implements kinematic principles in a robust and user-friendly package

Send Inquiry Chat Now

product description

Application

Packing & Delivery

Quality

KNE Thermocouple is a highly specialized and advanced kinematic coupling system, specifically a type known as a Kinematic Non-Overconstraining Externally Actuated Design. It is a precision engineering solution designed for ultra-repeatable and predictable positioning and connection between two objects.

Specification

Product name	Thermocouple Head
Material	ACD12 aluminum, SS304, SS316
Protection tube entry	PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4", M20X1.5
Color available	silvery, yellow, red, blue, black, etc
Screw distance	33mm, 36mm, 40mm
Form of terminal block	2 poles, 3 poles, 4 poles, 6 poles

Thermocouple-8

Advantage

Extreme Repeatability

This is its primary advantage. Because the position is defined by only six points of contact on hardened, polished surfaces, the same two parts can be disconnected and reconnected with exceptionally high repeatability. The repeatability is often in the single-digit microns or even sub-micron range.

Predictable and Known Behavior

The performance is mathematically predictable. Engineers can calculate the expected repeatability, stiffness, and load capacity based on the geometry and materials of the balls and grooves. This reduces uncertainty in the design phase.

Thermocouple-4

Freedom from Internal Stress

Traditional mounting methods can warp or stress components if the mounting surfaces are not perfectly flat or if bolts are over-torqued (a problem known as "over-constraint").

Wear Resistance

The contact between the sphere and the V-groove is a Hertzian contact, which is very resistant to wear. Furthermore, any wear that does occur simply allows the sphere to sit slightly deeper in the groove, often without degrading the repeatability of the position (a principle known as the "Law of Cosine Errors").

Thermocouple-5

Application

Metrology and Precision Measurement:

Coordinate Measuring Machines (CMMs): Used to precisely mount and quickly change probe heads, styli, or even the workpiece itself, ensuring measurement integrity after re-fixturing.
Laser Interferometers and Autocollimators: Mounting of mirrors and optics for alignment systems, where a shift of even a micron can invalidate measurements.
Calibration Equipment: Providing a known, repeatable reference datum for calibrating other instruments.

Semiconductor Manufacturing (Semiconductor Fab Equipment):

Photolithography Steppers/Scanners: These machines, which pattern circuits onto silicon wafers, use kinematic couplings to mount and align the incredibly precise lenses, reticle masks, and wafer stages. The need for nanometer-scale alignment is absolute.
Wafer Inspection and Metrology Tools: For mounting and exchanging sensors, cameras, and light sources without losing alignment.

Optics and Photonics:

Mounting of Lenses, Mirrors, and Lasers: In optical benches and complex systems like space telescopes or gravitational wave detectors (e.g., LIGO), components must be positioned and aligned with extreme precision and must remain stress-free to avoid optical distortion.
Modular Optical Systems: Allowing researchers to quickly swap out lasers, filters, or detectors on an optical table while maintaining their relative position.

Automation and Robotics:

End-of-Arm Tooling (EOAT): Enabling robots to change tools (e.g., grippers, welders, drills) with very high repeatability. This is critical for flexible manufacturing cells.
Reconfigurable Fixturing: In assembly lines, workholding fixtures can be quickly changed over for a new product while ensuring the part is held in an exact, known position.

Aerospace and Defense:

Mounting of Inertial Guidance Systems and Gyroscopes: These sensitive instruments must be mounted in a stress-free way to ensure accuracy.
Modular Payloads for Aircraft and Satellites: Allowing sensors or instruments to be removed and re-installed without the need for complex realignment procedures.

Research and Development:

Used in countless physics, engineering, and materials science labs for setting up experiments where precise and stable positioning of sensors, samples, or instruments is non-negotiable.

Thermocouple-2
