The main technical parameters Action temp range: 0—250℃ (optional) Disconnect tempaccuracy: ±(4-5)%℃ Temp difference: 10K – 30K Contact resistance: ≤50mΩ Electric strength: 2000V AC/0.5mA/1min withstand voltage test, no flashover, no breakdown Adjustable shaft rotation angle: 120°, 150°, 180°, 210°, 250°, 270°, 300°, 310° Service life: 15A/125V ～UL 100000 cycles; 16A/250V ～VDE/CQC 100,000 cycles
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mechanical kst thermostat switch in China, also supports custom service. Welcome to wholesale high quality mechanical kst thermostat switch at competitive price from our factory.

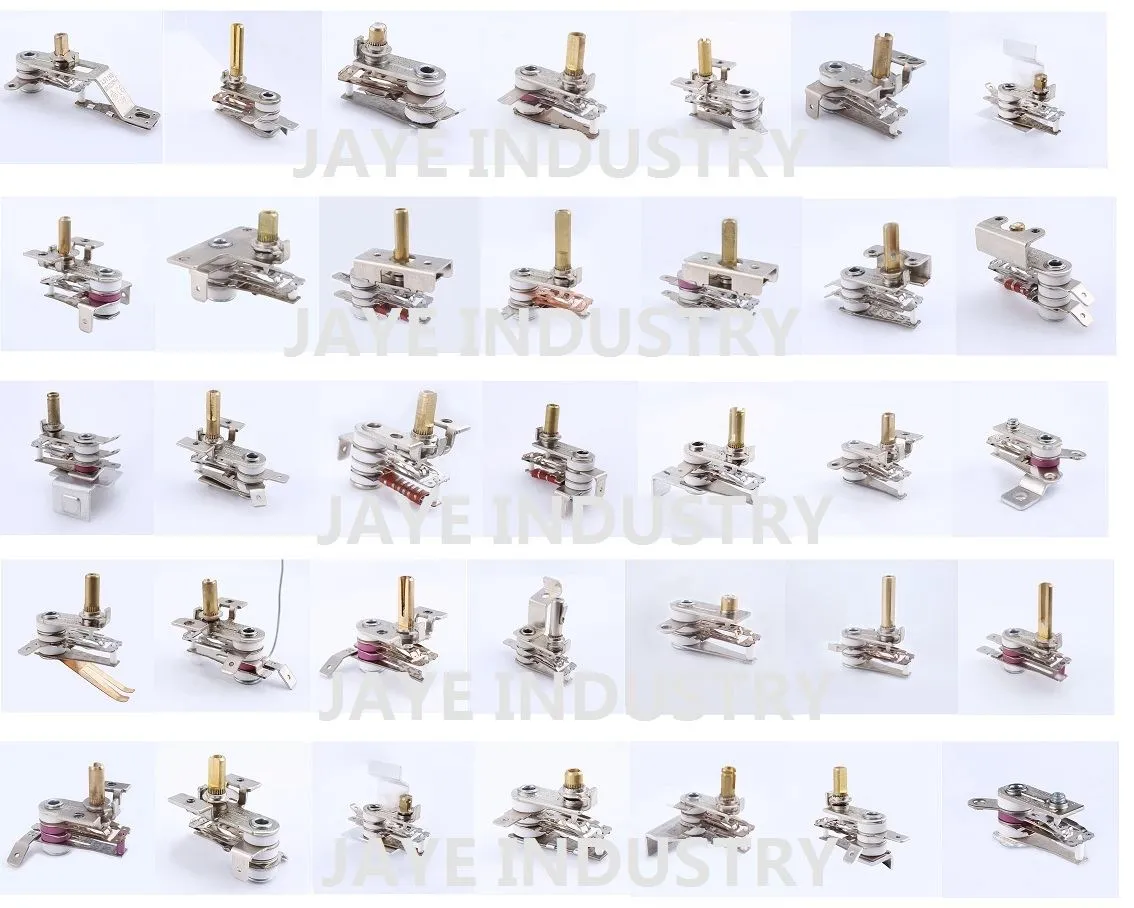

The mechanical KST thermostat switch series products made by Jaye are temperature-sensitive adjustable temperature control switches, which have the characteristics of sensitive response to temperature changes, small temp range, high temp control accuracy, and low electromagnetic interference.
Product Usage
They can be widely used for temp control and constant temp control of electric irons, electric ovens, frying pans, milk warmers, heat wave stoves, light wave stoves, electric heaters, electric pressure cookers, rice cookers and other electrical appliances.
The working principle and function of the mechanical KST thermostat switch:

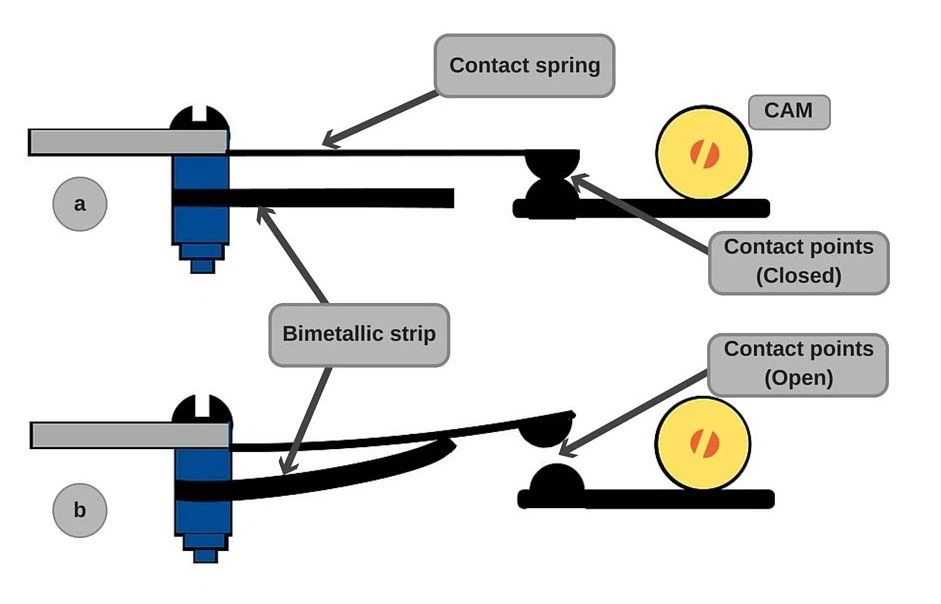

Mechanical KST thermostat switch is a kind of bimetal strip after a fixed temp as a heat sensitive reaction component. When the temp of the main part of the product increases, the heat generated is transferred to the bimetal strip, and it will act quickly when the operating temp is set. The function of the mechanism makes the contact open or close. When the temp drops to the reset temp setting, the bimetallic strip quickly returns to its original state, so that the contact closes or opens, achieving the purpose of connecting or disconnecting the circuit, thereby controlling the circuit
2. It is mainly used in occasions where the circuit needs to be turned on and off automatically with temp changes, so that the temp of the appliance is controlled within a constant temp range.
The structure and size of the installed version can be changed according to the actual use of the customer, and the temp can be determined according to the actual use of the customer. For more products, please contact us.
The main technical parameters
Action temp range: 0—250℃ (optional)
Disconnect tempaccuracy: ±(4-5)%℃
Temp difference: 10K – 30K
Contact resistance: ≤50mΩ
Electric strength: 2000V AC/0.5mA/1min withstand voltage test, no flashover, no breakdown
Adjustable shaft rotation angle: 120°, 150°, 180°, 210°, 250°, 270°, 300°, 310°
Service life: 15A/125V ～UL 100000 cycles; 16A/250V ～VDE/CQC 100,000 cycles
