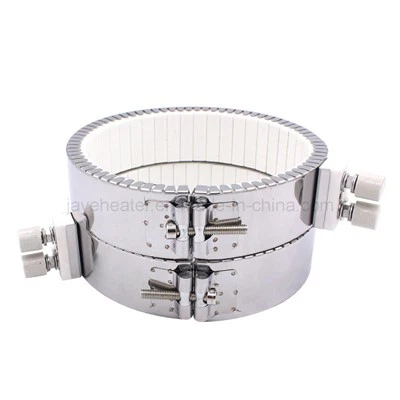

Ceramic band heaters are high-efficiency heating devices engineered for consistent thermal transfer in industrial processes. These heaters utilize advanced ceramic insulation and corrosion-resistant metal alloys to deliver targeted heat to cylindrical surfaces like extruder barrels, injection molding machines, and chemical reactors.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 480v ceramic band heater in China, also supports custom service. Welcome to wholesale high quality 480v ceramic band heater at competitive price from our factory.
ceramic band heater is a specialized heating device designed for uniform heat distribution on cylindrical industrial equipment. Constructed with alumina ceramic insulators and stainless steel clamps, it is the preferred solution for applications requiring rapid heating, precise temperature control, and long-term durability in harsh environments.
| Product name | Industrial Ceramic Band Heaters For 3D printing | |
| Voltage | 240V, 220V other can be customized. | |
| Power Density | 80W-2000W | |
| Heating Element | Nichrome 80/20 | Kanthal A1 (FeCrAl) |
| Insulation Resistance | >100 MΩ @ 500VDC | >200 MΩ @ 500VDC |
| Max Operating Temp | 650°C | 750°C |
Outer Shell:
1. 304/316L stainless steel with laser-welded seams
2.Clamping force adjustable via M8/M10 bolts
Heating Element:
1.Spiral-wound resistance wire with ceramic bead spacers
2.Optimized coil pitch for even heat distribution
insulation System:
1. 96% purity alumina ceramic segments (10x10mm tiles)
2.Ceramic fiber blanket backup layer (1600°C rated)
Terminal Protection:
1.IP66-rated junction box with silicone gaskets
2.High-temp ceramic terminal blocks (1000°C withstand)
Step 1: CNC laser-cutting of steel clamps (±0.2mm precision)
Step 2: Robotic winding of NiCr coils (tension-controlled)
Step 3: Vacuum-impregnated ceramic insulation
Step 4: 100% Hi-Pot testing at 2500V AC for 60 seconds
If you are interested in mica band heater, please share information as below:
Submit your specs now:
Inner Diameter: ______ mm
Target Temperature: ______ °C
Voltage/Frequency: ______ V/Hz
Quantity: ______ units
