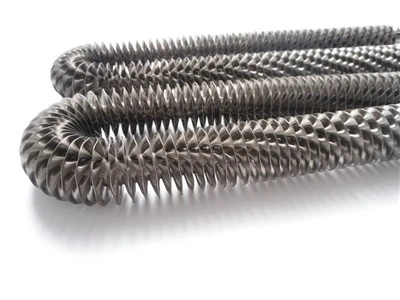

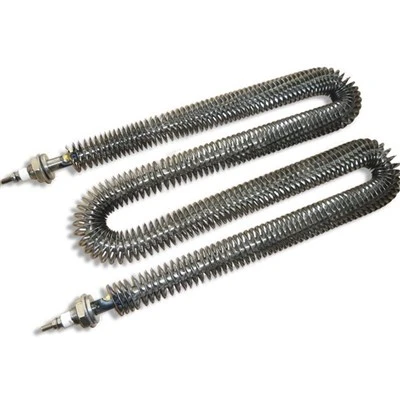

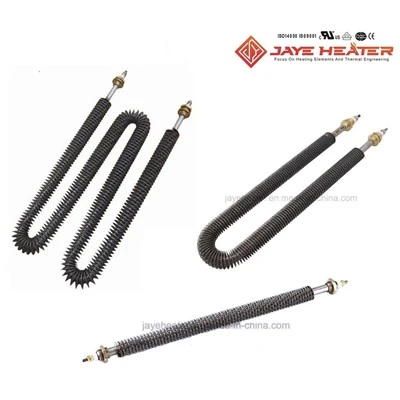

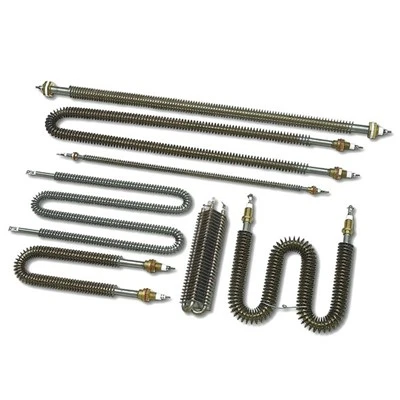

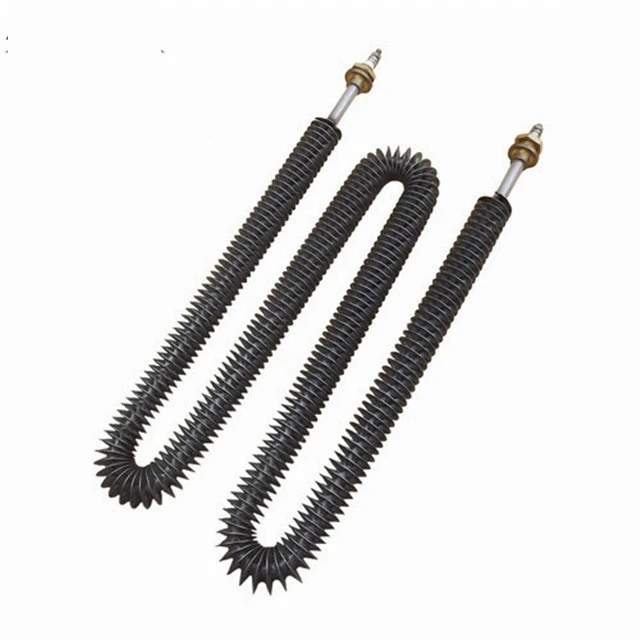

A W Type finned tubular heater is an electric heating element designed for heating air and gases with high efficiency. It is manufactured by adding closely spaced metal fins onto the surface of a tubular heating element and bending the heater into a compact W-shaped configuration. The fins significantly increase the heat transfer area, allowing more heat to be delivered to moving air while keeping the surface temperature lower than a standard tubular heater.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of w type finned heater in China, also supports custom service. Welcome to wholesale high quality w type finned heater at competitive price from our factory.
A W Type Finned Tubular Heater is an electric heating element specifically designed for efficient air heating and heat transfer.
The W-shaped structure provides a longer heating path while occupying less installation space, making it ideal for equipment where high heating capacity is required but the available space is limited.

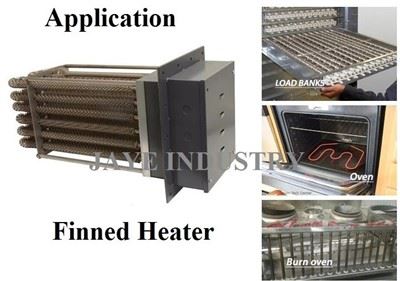

W Type finned heaters are widely used in industrial ovens, air duct heaters, drying equipment, ventilation systems, packaging machinery, heat treatment equipment, and other forced-air heating applications.
| Power (W) | Length L (mm) | Fin Zone A (mm) | Fittings |
| 2000 | 500 | 470 | M18*1.5 |
| 2500 | 625 | 595 | M18*1.5 |
| 3000 | 750 | 720 | M18*1.5 |
| 3500 | 875 | 845 | M18*1.5 |
| 4000 | 1000 | 970 | M18*1.5 |
| 4500 | 1125 | 1095 | M18*1.5 |
W Type finned tubular heaters are commonly used in:
They are especially suitable wherever air is the heating medium.
1. Can the heater be customized?
Yes. Voltage, power, dimensions, materials, terminal style, and mounting method can all be customized.
2.Which fin material should I choose?
Carbon steel fins are economical for general applications, while stainless steel fins are recommended for humid or corrosive environments.
3.What information is needed for a quotation?
For an accurate quotation, please provide:
