Jaye Heater is a professional manufacturer of electric heating elements, providing high-quality and cost-effective heating solutions for industrial equipment manufacturers worldwide. With advanced production technology and strict quality control, our heating products deliver stable performance, excellent thermal efficiency, and reliable service life. The Insulated Mica Band Heater is designed for cylindrical heating applications that require uniform heat transfer and accurate temperature control. With mica insulation and high-quality resistance wire construction, these heaters are widely used in plastic processing machines, injection molding equipment, extrusion machines, packaging equipment, and industrial heating systems. Jaye Heater provides customized mica band heaters to meet different equipment structures and operating requirements.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of insulated mica band heater in China, also supports custom service. Welcome to wholesale high quality insulated mica band heater at competitive price from our factory.

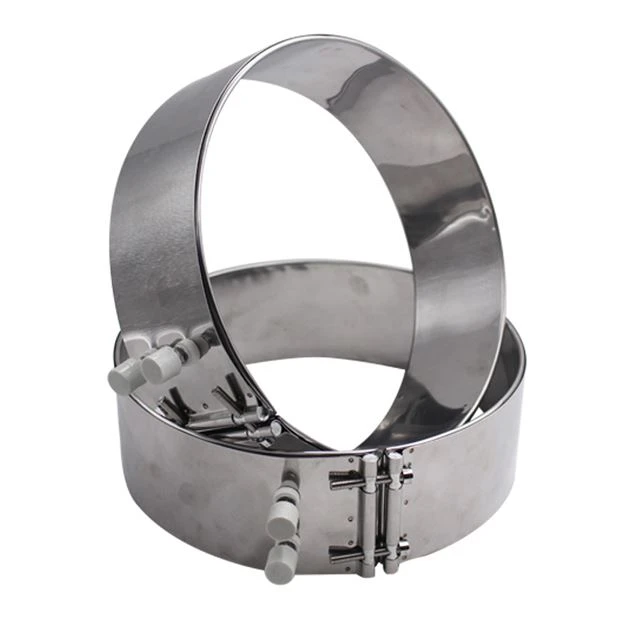

The Insulated Mica Band Heater is designed for cylindrical heating applications that require uniform heat transfer and accurate temperature control. With mica insulation and high-quality resistance wire construction, these heaters are widely used in plastic processing machines, injection molding equipment, extrusion machines, packaging equipment, and industrial heating systems. Jaye Heater provides customized mica band heaters to meet different equipment structures and operating requirements.
| Voltage | 12-480V. Can be customized as per required. |
| Power | 50-1000W. Can be customized as per required. |
| Sheath material | Stainless steel or brass |
| Insulation material | Mica or ceramic |
| Resistance wire | NI80Cr20 or Fe-Cr |
| Working temperature | Max. 700degrees |
| Resistance tolerance | +10%, -5% |
| Wattage tolerance | +5%, -10% |
Insulated mica band heaters are designed to provide efficient surface heating with reliable electrical insulation.
The mica insulation layer provides excellent heat resistance and electrical protection, making these heaters suitable for demanding industrial applications.
Injection molding machines require precise barrel temperature control to ensure stable plastic melting and processing. Insulated mica band heaters provide uniform heating around the machine barrel, helping improve production efficiency and maintain consistent product quality.
Once there's the inquiry, pls kindly inform us of the below:
1.Quantity and Part Number (if known)
2.Inside Diameter (I.D.)
3.Width (W)
4.Voltage (2-pc construction; specify total voltage)
5.Wattage (2-pc construction; specify total wattage)
6.Basic Construction Type
7.Lead Lengths Desired (stock length is 12") or Post Terminals (stock is 10-24 thread size)
8.Any Special Options Required
Yes. Jaye Heater provides customized mica band heaters according to customer requirements. Custom options include diameter, width, voltage, wattage, terminal type, opening position, and installation design.
The required wattage depends on:
Cylinder diameter and length
Target working temperature
Heating time
Material being heated
Heat loss from the equipment
Operating environment
Our engineers can help select the suitable power rating based on your application.
Please provide:
Heater inner diameter
Heater width
Voltage
Wattage
Terminal position
Working temperature
Quantity
Machine model or drawing (if available)
The working temperature depends on the heater design, insulation material, and application conditions. Standard mica band heaters are commonly used for applications up to around 450°C.
