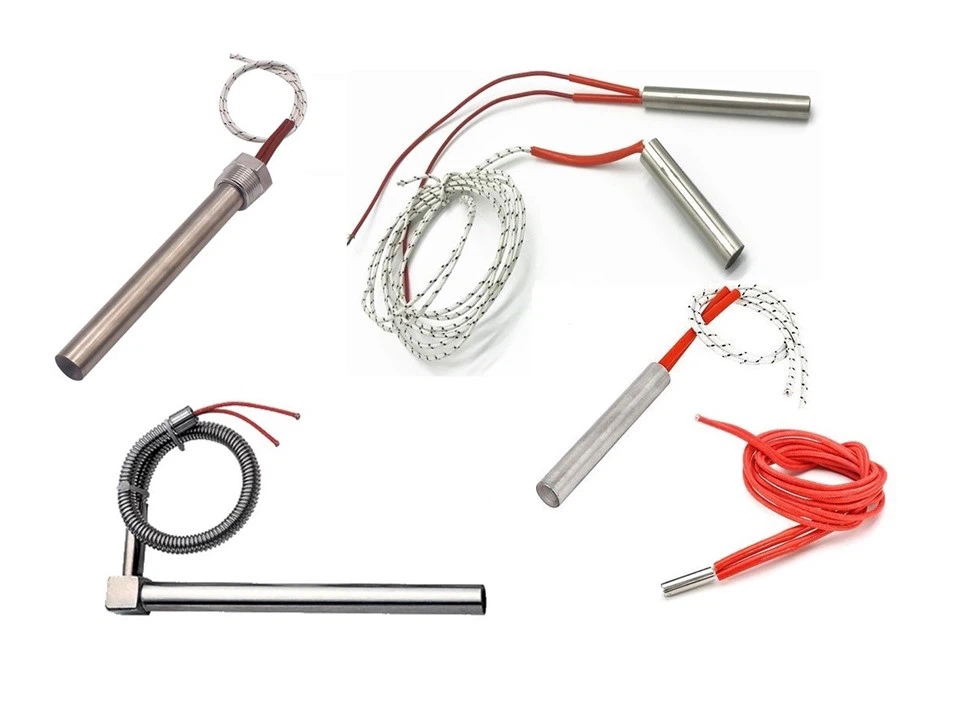

A high performance cartridge heater is a type of tubular heating element used to for localized heating in industrial processes that require accurate control. The cartridge heater is inserted in drilled holes in metal blocks for localized heat delivery! it provides heat directly where it needed and demands, uniformly and efficiently. A cartridge heater is made of high quality metals and outer insulations to allow for a respectable service life and consistent operation in high temperature processes.
A high performance cartridge heater is a type of tubular heating element used to for localized heating in industrial processes that require accurate control. The cartridge heater is inserted in drilled holes in metal blocks for localized heat delivery! it provides heat directly where it needed and demands, uniformly and efficiently. A cartridge heater is made of high quality metals and outer insulations to allow for a respectable service life and consistent operation in high temperature processes.
| Sheath Metals | Stainless Steel 304/306/Incoloy |
| Heating Type | Ni-Chromium as resistance wire |
| Voltage | 12V - 480V AC/DC |
| Wattage | Max 60 W/cm² or 387W/in² |
| Wire Types | fiberglass insulation, PTFE or stainless steel braid |
| Operating Temperature | 600 °C (The actual temperature needs to be tested by the customer) |
High Temperature Capability
Capable of continuous operation at temperatures ranging up to 800°C (1472°F) (dependent upon insulation and material). These heaters can be used in many high temperature industrial processes.
Tight Tolerance
Heaters are designed so that there is a close fit in the drilled hole or block. This allows better heat transfer efficient and minimize hot spots providing maximum uniformity.
Accurate Temperature Control
Can utilize any thermocouple, RTD's or PID controllers for consistent temperature performance. More consistent temperature stability reduces the chance of over-heating or under-heating.
Various Custom Sizes and Power
We have diameters that range from 3 mm to 25 mm, lengths from 20 mm to 500 mm. We can provide a range of wattage and voltage to fit a specific heating requirement.
Plastic Injection Molding - Controlled temperature in the nozzle and the mold.
Packaging Equipment - Used sealing bars, hot knives, and conveyor equipment.
If you are interested in mica band heater, please share information as below:
