There are mainly two types of material for the flange, Brass and stainless steel. Stainless steel Or brass flanges are most been used as a way to position a heater within an application. Flanged Threaded Cartridge heater are used largely used to heat liquid, solid or gas.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flange threaded cartridge heater in China, also supports custom service. Welcome to wholesale high quality flange threaded cartridge heater at competitive price from our factory.
Flange Threaded Cartridge Heater
There are mainly two Types of material for the flange, Brass and Stainless steel. Stainless steel Or brass flanges are most been used as a way to position a heater within an application. Flanged Threaded Cartridge heater are used largely used to heat liquid, solid or gas. depends on the acutal working condiction of the heating device., Flange Immersion Cartridge heater immersion the liquit to heat, mainly in Water and Oil. For water immersion heating, We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater. For Oil Immersion Heater, Commonly used as engine sump heaters. When heating some oils, only 2 watts per square centimetre can be used otherwise the high cartridge heater surface temperature causes the oil to oxidise and carbon to be built-up on the surface of the heater. When this occurs, the carbon can thermally insulate the cartridge heater, causing the unit to heat up internally, often resulting in electrical failure.
Flange style and size according to customer requirement and tube diameter. These flanges can be located in any no-heat section of the heater sheath. To order, specify flange, flange size and location.
TYPE 1 | TYPE 2 |
 |  |
TYPE 3 | TYPE 4 |
 |  |
The size of threaded bushing is matched according to pipe diameter. The specifications of threaded bushing include G thread, NPT thread, BSPP thread, etc.

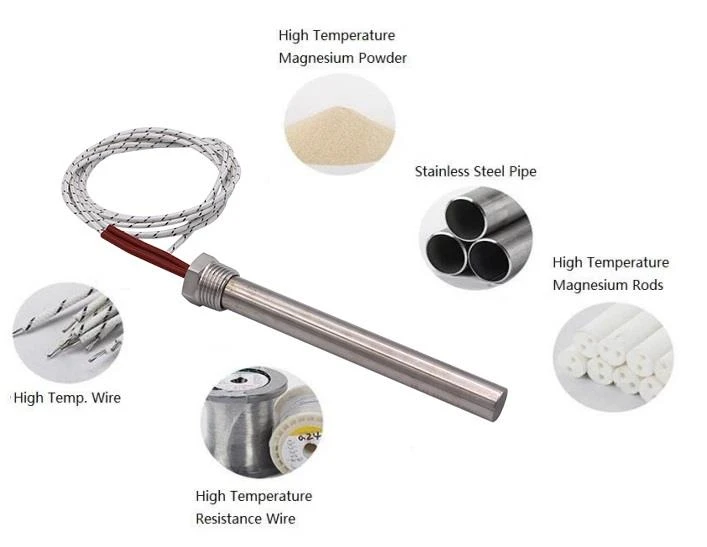

Technical parameter of Flange Threaded cartridge heater
Tube diameter: Φ3mm-Φ30mm
Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
Insulation Material: High-purity and high grade MgO
Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
Wattage density: high/middle/low (5-25w/cm2)
Lead Connection Option: Crimped or Swaged leads
Lead wire Type: 10" Standard (Teflon/silicone high temperature fiberglass)
Application:
Liquid Immersion
Plastic Molds
Dies
Labeling
Medical Equipment
Platens
Packaging Equipment
Hot Stamping
Sealing
Injection Molding
Cartridge Heater is one of the best heating elements that Jaye Industry are making. Which is popular selled to Southeast Asia, Europe, North America, South America, South Africa United States, United Kingdom, France, Italy, Germany, Poland, Japan, Spain, Portugal, Brasil, Chile, Argentina, Mexico, Saudi Arabia, Turkey, Egypt, India, Indonesia, Malaysia, Korea, Australia, Singapore and other countries and regions from all over the world. 'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
