Cartridge heaters are often used in die mold heating applications due to their compact size and ability to deliver high heat output in a small area. These heaters are cylindrical in shape and can be inserted directly into the die mold for precise and efficient heating.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cartridge heater for die mold heating in China, also supports custom service. Welcome to wholesale high quality cartridge heater for die mold heating at competitive price from our factory.

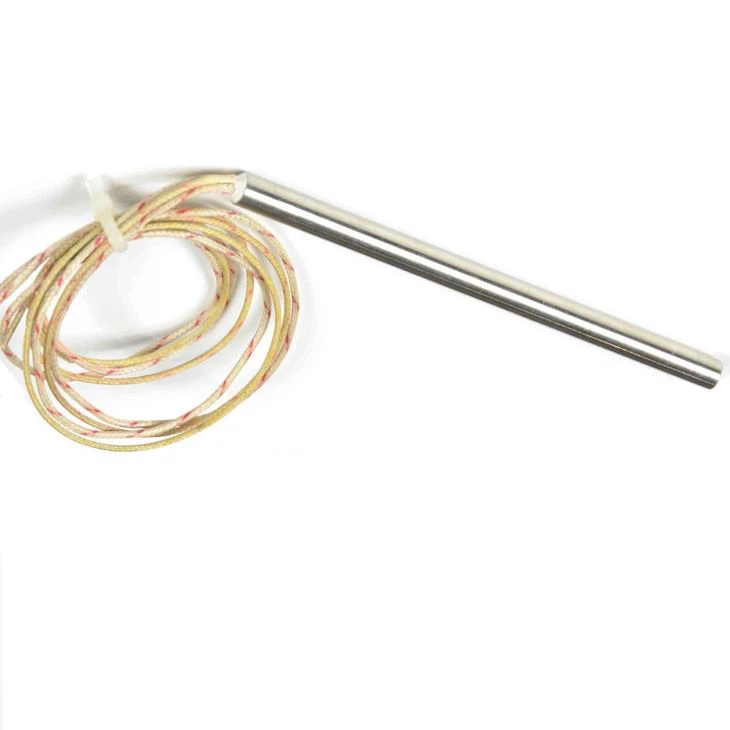

The Cartridge heater for die mold heating uses high-quality metal tubes as the shell. High-resistance heating wires wounded around the MgO tube and are arranged along the diameter of the shell. The gap is tightly filled with excellent conductivity and insulating material. The diameter of tube can be processed according to the requirements of positive and negative tolerances. Jaye Industry suggests that connect and set the temperature control first, and then energize the heating pipe.
High heat output: Cartridge heaters are designed to provide high levels of heat output in a small area. This makes them ideal for heating up molds quickly and efficiently.
Compact size: Cartridge heaters are cylindrical in shape and come in a variety of sizes, ranging from 1/8" to 1" in diameter and 1" to 24" in length. This compact size makes them easy to install and use in a variety of different molds.
Fast heating: Because of their small size and high heat output, cartridge heaters are able to heat up quickly, which can reduce production time and increase efficiency.
Precise heating: Cartridge heaters can be inserted directly into the mold, which allows for precise heating control. This is especially important for molding applications that require consistent and precise temperatures.
Versatile: Cartridge heaters can be used in a variety of different molding applications, including plastics, rubber, and metal molding.
Durable: Cartridge heaters are typically constructed from durable materials, such as stainless steel or Incoloy, which can withstand high temperatures and harsh environments.
The surface load of the mold heating cartridge heater is much higher than the air heating cartridge heater, and the heat transfer of air is slower than that of solids. It can not be directly heating in the air without connecting with the mold. When it is temporarily not used in the warehouse, it should be stored in a dry place. When the insulation resistance is lowered to less than 1MΩ after being placed, Jaye industry suggest dry them in an oven at about 150-200℃ for several hours or the component can be heated by turning on the power, and then power off and naturally cooled, that is, the insulation resistance can be recovered.
When selecting a cartridge heater for die mold heating, there are several factors to consider.
First, you will need to determine the required wattage and voltage for your specific application. This will depend on factors such as the size and material of the mold, as well as the desired temperature range.
Next, you will need to consider the size and shape of the cartridge heater itself. Most cartridge heaters are available in standard sizes ranging from 1/8" to 1" in diameter and 1" to 24" in length. However, custom sizes can also be ordered if needed.
Finally, you will need to select the appropriate sheath material for your application. Common sheath materials for cartridge heaters include stainless steel, Incoloy, and titanium. The sheath material you choose will depend on factors such as the temperature range, the corrosiveness of the materials being molded, and the desired lifespan of the heater.
1- Diameter of the cartridge heater
2- Length of the cartridge heater
3- Lead wire type: swaged-in lead wire or crimped-on lead wire.
4- Voltage and Watt
5- If you have drawing would be great helpful
6- Order quantity
Cartridge heaters made by Jaye Heater Technology are a reliable and effective option for die mold heating applications due to their high heat output, compact size, and precise heating control. and all our cartridge heaters are high level inpected before out of our factory, just contact with us if you have any needs.
