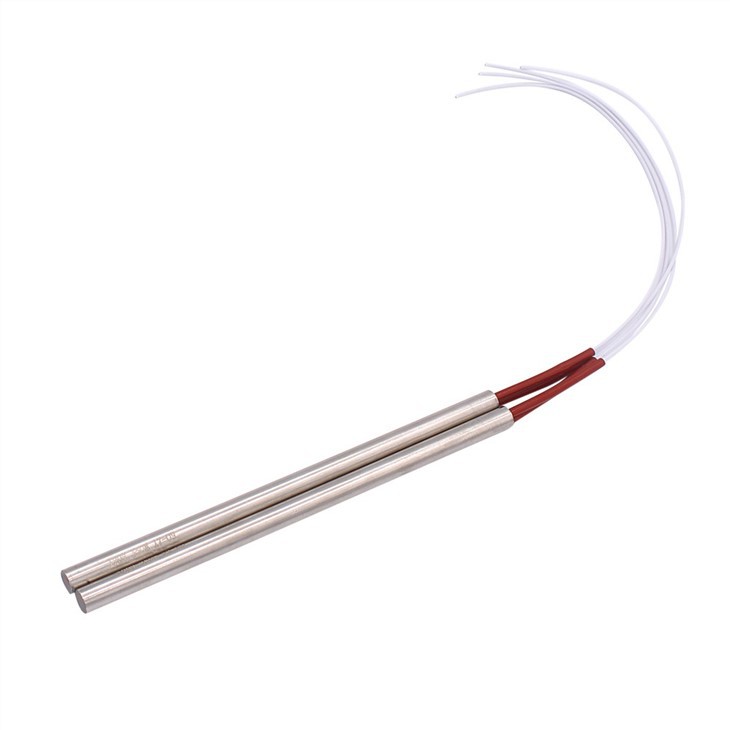

Taper Cartridge Heaters

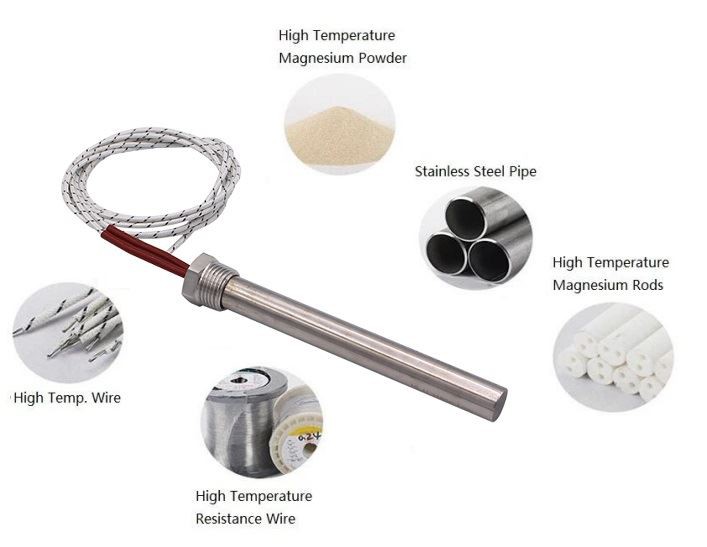

Its typical structure (the most popular structure) is the same as the traditional one, which is generally composed of 5 parts: insulator, sealing material, lead rod, filler, wire, metal sheath, and terminal. Its manufacturing process is to penetrate the spiral wire into seamless steel pipes, copper pipes or aluminum pipes, and the gaps are evenly filled with insulating and thermally conductive oxidizing media, such as crystalline magnesium oxide powder (or oxidation Aluminum or clean quartz sand, etc.). Then use a tube shrinking machine to reduce the diameter of the tube to make the oxide medium compact (density reaches 3.3g/cm3 or more) to ensure isolation from the air, and the center position does not shift and touch the tube wall.

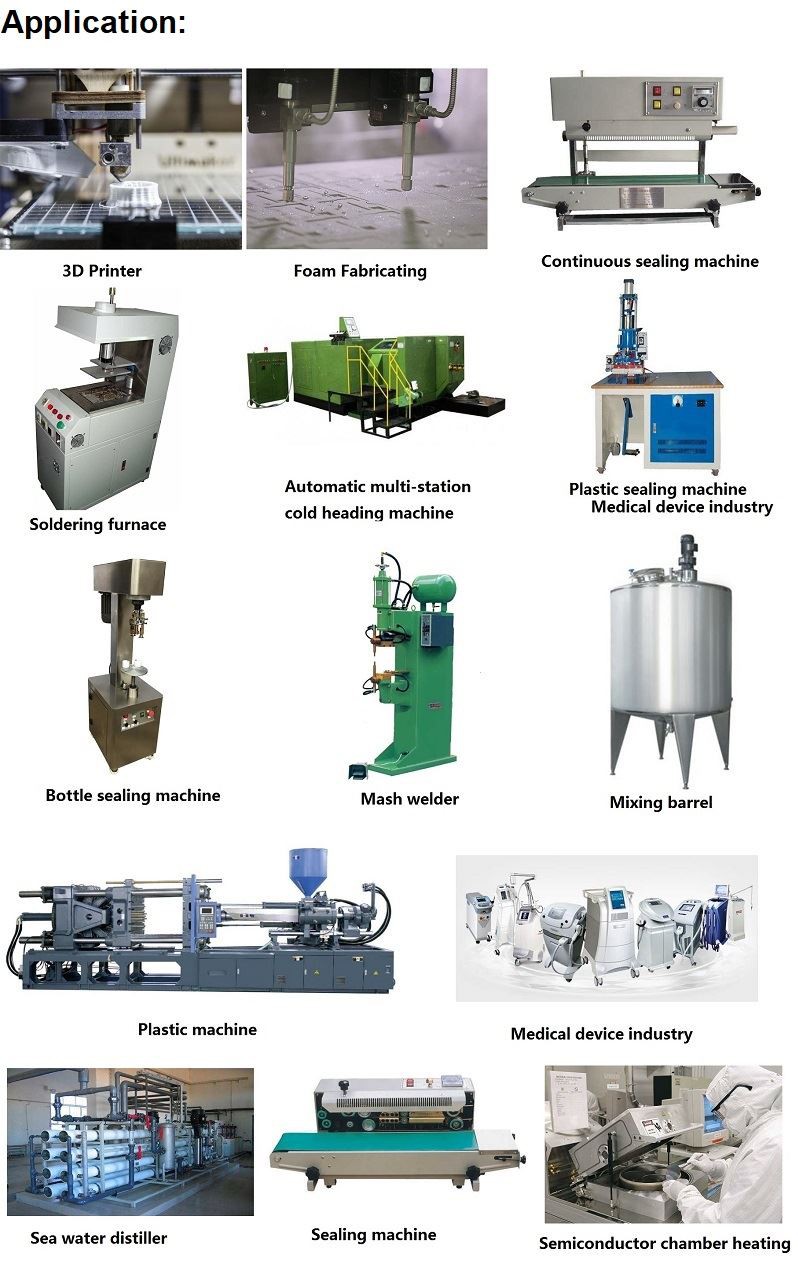

Scope of application
1. Mold heating has been accepted by a wide range of customers in modern industrial applications.
2. Heating system in plastic machinery.
3. Pharmaceutical production line.
4. Laboratory heat treatment test.
5. Chemical industry, etc.
advantage
1. Small diameter, 3-25MM can be achieved.
2. The length is not limited, and it can be 20-2000MM.
3. High power, 2-5 times the normal power, which can be achieved (surface area 20 watts/square centimeter), and even abroad (surface area 60 watts/square centimeter).
4. It has the characteristics of simple structure, high mechanical strength, safety and reliability, easy installation, long service life, non-polluting, and low price. At the same time, it saves electricity and is safe to use. It can be bent into various shapes, light and easy to disassemble and assemble.
