In the realm of industrial heating, the Ceramic Bobbin Heater stands out as a robust and precise thermal solution, powering everything from plastic processing machinery to laboratory instruments. Its engineered simplicity delivers remarkable performance where it matters most. Let's break down this essential component—from its core definition to its critical advantages and specifications.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic bobbin heater tube in China, also supports custom service. Welcome to wholesale high quality ceramic bobbin heater tube at competitive price from our factory.

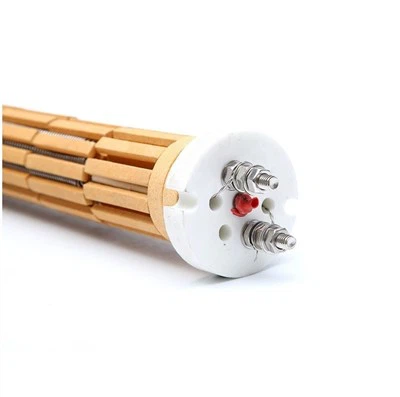

A Ceramic Bobbin Heater is a type of resistive heating element consisting of a high-purity ceramic core (often made from alumina or steatite) around which a resistance wire-typically nickel-chromium or iron-chromium-aluminum-is wound. When energized, the wire generates heat, which is then transferred uniformly through the ceramic body to the target application. Designed with integrated electrical insulation such as mica or ceramic fiber, these heaters ensure both thermal efficiency and operational safety.
With the ability to withstand temperatures up to 1200°C, ceramic bobbins offer outstanding thermal stability, making them suitable for continuous high-heat operations.
Thanks to the ceramic's favorable thermal conductivity and low heat capacity, these heaters achieve near-instant heat-up. The precision winding pattern ensures consistent temperature profiles without localized overheating.
The inherent hardness and corrosion resistance of ceramic materials make these heaters ideal for harsh industrial environments-including those involving chemicals, plastics, or repetitive mechanical stress.
Available in a wide range of diameters (as small as 6mm), lengths, and mounting configurations, they can be tailored to fit space-constrained applications such as hot runner systems or extrusion dies.
Delivering thermal efficiency exceeding 90%, and compatible with PID temperature controllers, ceramic bobbin heaters enable precision within ±1°C-reducing energy waste and total cost of ownership.
| Parameter | Typical Range / Options | Remarks |
| Power Density | 10–50 W/cm² | Must be matched to heat dissipation conditions to avoid ceramic cracking. |
| Operating Voltage | 12V, 24V, 110V, 220V, 380V | Low voltage for hazardous areas; high voltage requires proper insulation. |
| Resistance Tolerance | ±10% | Tighter tolerances (±5%) available for precision applications. |
| Lead Wire Type | Silicone, fiberglass, or metal braided | Temperature resistance from -60°C to 500°C; braided offers extra durability. |
The ceramic bobbin heater represents an intelligent fusion of advanced material science and precision thermal engineering. For engineers and designers seeking reliable, compact, and highly efficient heating solutions, understanding its technical DNA is essential. As material technologies evolve, we can expect these heaters to push further into higher power densities and smarter thermal management-continuing to drive innovation across industries.
