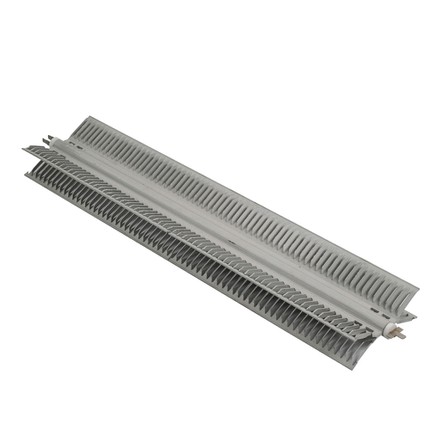

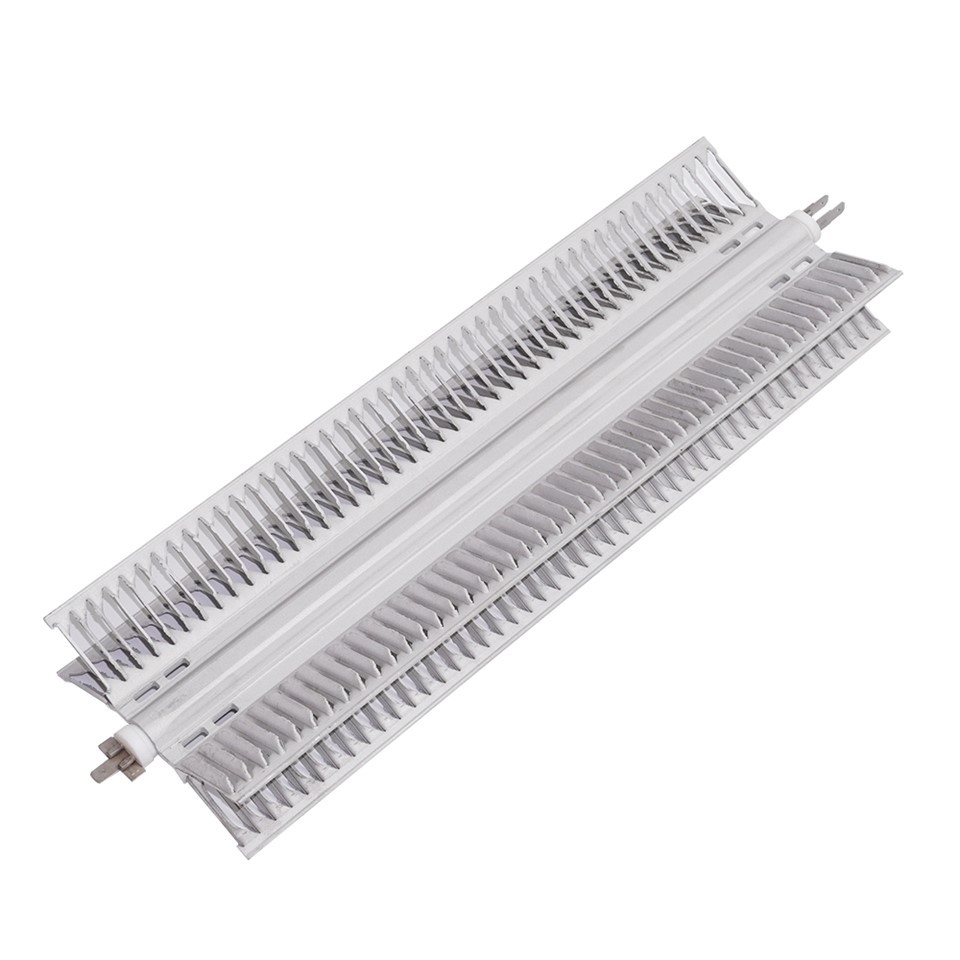

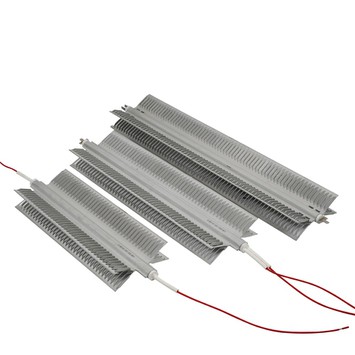

Aluminum finned heating elements are designed for efficient heat transfer in air and gas heating applications. They consist of a nickel-chromium (NiCr) resistance wire embedded in a magnesium oxide (MgO) insulated metal sheath, with aluminum fins crimped onto the tube to maximize surface area and heat dissipation. These heaters are widely used in HVAC systems, industrial process heating, and ventilation due to their fast response, uniform heat distribution, and durability.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum finned air heater in China, also supports custom service. Welcome to wholesale high quality aluminum finned air heater at competitive price from our factory.
Aluminum finned heating elements are uniquely designed for efficient heating as it relates to air, and gas heating applications. They consist of a nickel-chromium (NiCr) resistance wire powered by electricity and encased or stored in a magnesium oxide (MgO) insulated metal sheath where the aluminum fins are crimped around the tube designed to maximize the tube surface area and heat dissipated from the heater.
Finned heaters are popular heating elements found in HVAC systems, process application heating industries and special ventilation systems to name a few applications because of their fast time responses, conduction of heat in a uniform manner and durability as heating elements.
| Material | Sheath: Stainless steel (SS304/SS316) / Fins: Aluminum (or stainless steel for corrosive environments) |
| Voltage | 110V, 220V, 380V, 480V (AC/DC) |
| Max Temperature | 300°C – 500°C (depending on sheath material) |
| Power Range | 1 kW – 100 kW (customizable) |
Energy Savings – Faster heat transfer reduces power consumption.
Compact Design – Higher wattage in a smaller space vs. bare elements.
Wide Compatibility – Works with blowers, fans, and natural convection systems.
