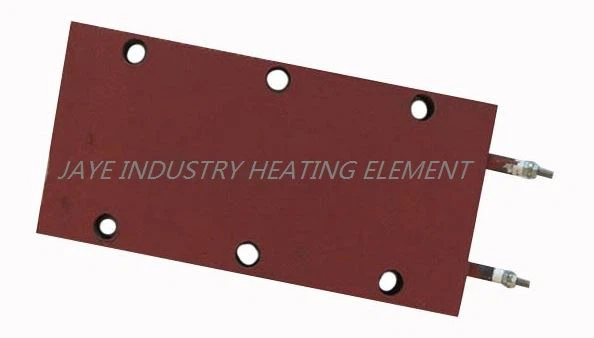

Aluminum Heating Plates

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum heating plates in China, also supports custom service. Welcome to wholesale high quality aluminum heating plates at competitive price from our factory.





An Industrial Electric Die-Cast Aluminum Heating Plate is a heating element manufactured using a high-pressure die-casting process. The core manufacturing sequence involves precisely placing a pre-formed metal resistance wire (typically made of nickel-chromium or iron-chromium-aluminum alloy) into a mold. Then, aluminum alloy with high thermal conductivity is injected into the mold under high pressure and temperature, encapsulating the heating wire in a single, solid step.



This advanced process creates a molecular-level bond between the heating wire and the aluminum shell, eliminating air gaps. The result is a robust, monolithic heating unit with exceptional heat transfer efficiency. Essentially, it acts as a "thermal platform" that converts electrical energy into heat and uniformly transfers it across its large, flat surface to the target equipment.



Compared to traditional band heaters or mica heaters, die-cast aluminum heating plates offer unparalleled benefits:

Superior Thermal Conductivity & Temperature Uniformity

• High Thermal Conductivity: Aluminum is an excellent conductor of heat, allowing for rapid heat dissipation from the embedded wire across the entire plate surface.
• Zero-Gap Design: The die-casting process eliminates air-a thermal insulator-significantly reducing thermal resistance and achieving thermal efficiency often exceeding 90%.
• Uniform Thermal Field: The planar heating characteristic ensures an extremely low temperature gradient across the surface (typically within ±5°C). This is critical for processes like injection molding or hot pressing, guaranteeing consistent product quality.

Exceptional Mechanical Strength & Longevity

• Rugged Monolithic Structure: The aluminum casing provides not only thermal conductivity but also superior mechanical protection. The element is highly resistant to impact, vibration, and physical deformation, making it suitable for harsh industrial environments.
• Resistance to Moisture and Corrosion: The sealed aluminum shell effectively protects the internal heating wire from ambient air, moisture, dust, and many chemicals, significantly extending its service life compared to open-style heaters.

High Power Density & Rapid Thermal Response

• Due to its high thermal efficiency, a die-cast aluminum plate can withstand a higher surface load (power per unit area), enabling faster heat-up times and higher maximum operating temperatures.
• The relatively low thermal mass allows for quicker response during both heating and cooling cycles, facilitating precise temperature control.

Ease of Integration & Installation

• The flat plate design allows for straightforward installation onto flat or machined surfaces of various equipment, such as platens, molds, rollers, and medical device platforms.
• It can be custom-made into various shapes (round, square, custom profiles), sizes, and with specific mounting holes, offering high design flexibility.

Enhanced Safety & Reliability

• The fully enclosed construction prevents electric shock hazards.
• High mechanical strength mitigates the risk of short circuits or electric leakage caused by physical damage.
• Options for integrated thermal fuses (thermal cut-offs) and temperature sensors (e.g., thermocouples, RTDs) provide crucial over-temperature protection and precise control, ensuring operational safety.





Rated Voltage	Common options: Single-Phase 110V, 220V, 380V; Three-Phase 380V. Must match the power supply.
Rated Power	Wide range, from tens of watts to tens of kilowatts. Determined by size and design; the core indicator of heating capacity.
Resistance	The cold resistance is a critical design and inspection parameter, calculated to meet the power requirement (using P = U²/R).
Overall Dimensions	Length, Width, Height/Thickness. Highly customizable. Thickness is often related to power and structural strength.
Shape	Round, Square, Rectangular, or custom-shaped to fit equipment contours.
Mounting Method	Typically via screw holes (threaded or through-holes). Specification includes hole position, diameter, and quantity.



1. size
2. power and wattage
3. Drawing
4. quantity
5. pictures





The Industrial Electric Die-Cast Aluminum Heating Plate is far more than a simple "hot plate." It represents the perfect synergy of materials science, electro-thermal principles, and precision manufacturing. Its core characteristics of high efficiency, temperature uniformity, ruggedness, and safety establish it as a benchmark solution for industrial surface heating challenges. When selecting a heating element for your equipment, a thorough understanding of these attributes will empower you to make a more professional, cost-effective, and reliable choice.
