The stove top coil heating element, also known as a coil burner or electric coil, is a common type of heating element found in traditional electric stoves and cooktops.The Stove top coil heating elements made by Jaye Heater Technology has the feature of Durability, Cost-effective, Compatibility: and long service life....
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of stove top coil heating element in China, also supports custom service. Welcome to wholesale high quality stove top coil heating element at competitive price from our factory.

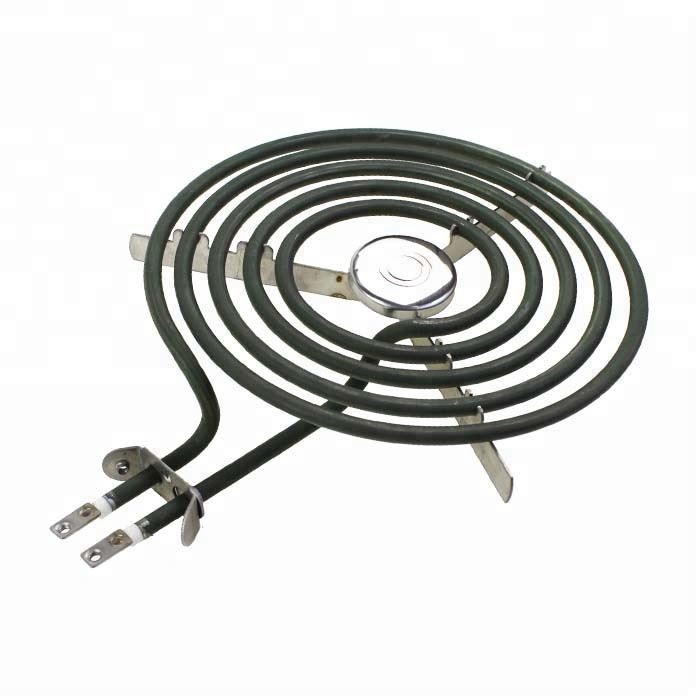

The stove top coil heating element, also known as a coil burner or electric coil, is a common type of heating element found in traditional electric stoves and cooktops. It consists of a coiled metal wire that heats up when an electric current passes through it, providing heat for cooking. Stove Top Coil Heating Element is a double-headed electric heating tube, with a metal tube as a protective shell, spiral high-quality electric heating alloy wires (nickel-chromium, iron-chromium alloy heating wires) are uniformly distributed along the central axis of the tube, and the gaps are tightly filled with good heat resistance It is made of crystalline magnesium oxide powder with high performance, thermal conductivity and insulation. Both ends of the nozzle are sealed with silica gel and processed by other processes.
Stove top coil heating elements have a few distinct features that make them popular in electric stoves and cooktops. Here are some common features associated with coil heating elements:
Durability: Coil heating elements are typically made from durable materials, such as stainless steel or nickel-chromium alloy. This construction makes them resistant to wear and tear, and they can withstand high temperatures and frequent use.
Simmering capability: Coil heating elements are well-suited for simmering food due to their ability to provide low, consistent heat. The low heat setting allows you to maintain a gentle simmer without the risk of scorching your food.
Compatibility: Coil heating elements are compatible with a wide range of cookware materials, including stainless steel, cast iron, aluminum, and copper. This versatility gives you the flexibility to use different types of pots and pans for various cooking needs.
Easy maintenance: Coil heating elements are relatively easy to clean and maintain. They can be wiped down with a damp cloth or sponge once they have cooled down. Spills and drips can be removed using mild soapy water. However, it's important to ensure that the heating element is completely dry before using it again.
Cost-effective: Stoves and cooktops with coil heating elements are generally more affordable compared to those with other types of heating elements, such as ceramic or induction. This affordability makes them a popular choice for budget-conscious consumers.
| Shell material: | stainless steel, stainless steel + scale waterproof coating, etc.; |
| Fastener material: | stainless steel, etc.; |
| Heating wire material: | 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2, Cr20Ni80, etc.; |
| Insulating filler: | insulating magnesium oxide powder, etc.; |
| Rated voltage: | 110V, 220V, 380V, etc., non-standard customized; |
| Power: | Determined according to the use environment; |
| Length: | According to customer requirements; |
| Cold-state insulation resistance: | The cold-state insulation resistance during the factory inspection should not be less than 50MΩ; after the sealing test, the insulation resistance after long-term storage or use should not be less than 1MΩ; |
| Cold leakage current: | ≤ 0.5 mA; |
1600v. 1/seg. |
1. The components should be stored out of dryness. If the insulation resistance drops below 1 megohm due to long-term storage, they can be dried in an oven at about 200°C for several hours (or pass the components under low pressure for several hours), or restore the insulation. Resistance
2. When carbon is found on the surface of the tube, it must be removed before use, so as not to reduce the efficiency or even burn out the components;
3. When melting bitumen, paraffin and other solid oils, the voltage should be lowered for use, and then raised to the rated voltage after melting, to prevent the concentration of electricity from reducing the service life of the components.
Jaye Heater Technology makes standard and customized stove top coil heating elements as per your specific design, we are always do our best to meet your heating requirements with high quality, reasonable price and fast delivery time.
