The Tubular Heating Element is highly versatile since it can be produced in almost any shape and size. Electric Oven Convection fan heaters are mostly been designed and made to be circle shape based on the inner room structure of the Convection oven.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electric oven convection fan heater in China, also supports custom service. Welcome to wholesale high quality electric oven convection fan heater at competitive price from our factory.

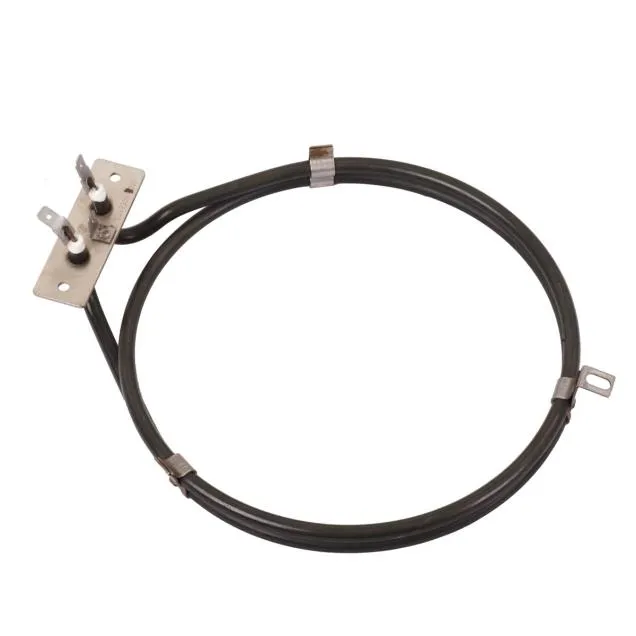

Electric Oven Convection Fan Heater
The Tubular Heating Element is highly versatile since it can be produced in almost any shape and size. Electric Oven Convection fan heaters are mostly been designed and made to be circle shape based on the inner room structure of the Convection oven. When making the Oven convection Fan Heaters, the Air flow, volatility, corrosive nature, and watt density are some of the factors to be analyzed within the design process of an oven convection fan heater.. Jaye industry make the Oven convection fan heater using the best material and quality control process ensure our heating elements gets the best thermal transfer and insulation resistance. Tubular Oven heaters are most economical solution for the Electric oven. Any diameter, shape or size can be customized by Jaye industry.
Product information | |
Tube Material | 304/316L/321/310S/incoloy |
Tube diameter | 6.5-10MM |
Tube wall thickness | 0.4-0.5mm |
Watt | Customized |
Voltage | 100V-380V |
Dimension | Customized |
Warranty | Three year |
High pop test | 1500V/2mA/1S |
Resistance insulation | 100MΩ MIN |
Leakage current | 0.5mA MAX |
Surface treatment | Electrolyte/polishing/black/green annealing |
Flange material | Stainless steel |
Main Features:
1.Easy installation.
2.Fast heat exchange rate.
3.Long transfer of heat radiation.
4.Excellent corrosion resistance.
5.Designed and built for safety.
6.Low cost with long service life and high efficiency.
Applications:
1. Electric oven.
2. Fish roasters
3. Oven Hot plates
4. Can vending machine
5. Heat accumulating heaters
6. Microwave oven ranges
7. Industrial heater
