Tubular Heater for Washing Machine

Tubular Heater for Washing Machine

The tubular heater for washing machine can be designed and made to be various shape and size. The Washing Machine tubular heater made by Jaye industry adopt the tube material of Incoloy, Stainless steel or copper sheath.and there are many types of terminals are available based on clients’ application requirements.

product description

Application

Packing & Delivery

Quality

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of tubular heater for washing machine in China, also supports custom service. Welcome to wholesale high quality tubular heater for washing machine at competitive price from our factory.



Tubular Heater For Washing Machine


The tubular heater for washing machine can be designed and made to be various shape and size. The Washing Machine tubular heater made by Jaye industry adopt the tube material of Incoloy, Stainless steel or copper sheath. and there are many types of terminals are available based on clients’ application requirements. As an important heating elements in the washing machine, the tubular heater have a very big power load surface, can heat the water to be hot rapidly to meet the washing condition requirements. And the Washing machine tubular heater with surface special treated like Enamel plating, can reduce the adhesive force of the calcium ion and further reduce the possibility of the scale and prolong the life working time of the washing machine heater..

The washing machine tubular heater made by Jaye industry always own the advantage of Fast Heating, high heating efficiency, long life working time. And all size and shape of washing machine heaters can be customized by Jaye industry.


Specifications:

Spare parts

Parameter

Remark

Sheatd Material

SUS316L

CopperSUS304,sus321,sus316L,incoloy804,incoloy800,As requested

Voltage

230V

As requested

Wattage

1000W-3500W

As requested

Tube Diameter

6.5mm/8.5mm

Tube diameter can be changed to 8.0mm,8.5mm,or otder as requested

Resistance Powder

High Grade Magnesium oxide


Resistance Wire

Ni80Cr20

Ocr25Al5 or other material if requested

Terminal

Nickel plated iron or Stainless Steel

Material of terminal housing could be stainless iron,stainless steel if required

Leads

Stainless steel

Materials of terminal piece could be stainless iron,stainless steel if required

Screw thread

1"or2"

Other thread also available. if required






Features:

1-High power load,Fast Heating Speed

2-High heating transfer efficiency

3-Durable, Reliable and Long life time

4-Customized Size and Shape.

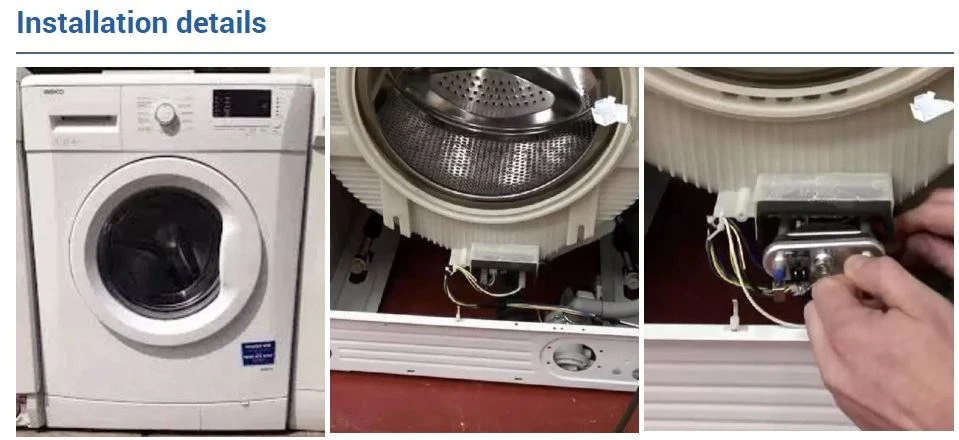

INSTALLATION DETAILS

Order Guide:

1-Drawings or Samples will be best.

2-Detail dimension specifications

3-Watt and Voltage

4-With NTC or not

5-Order quantity
