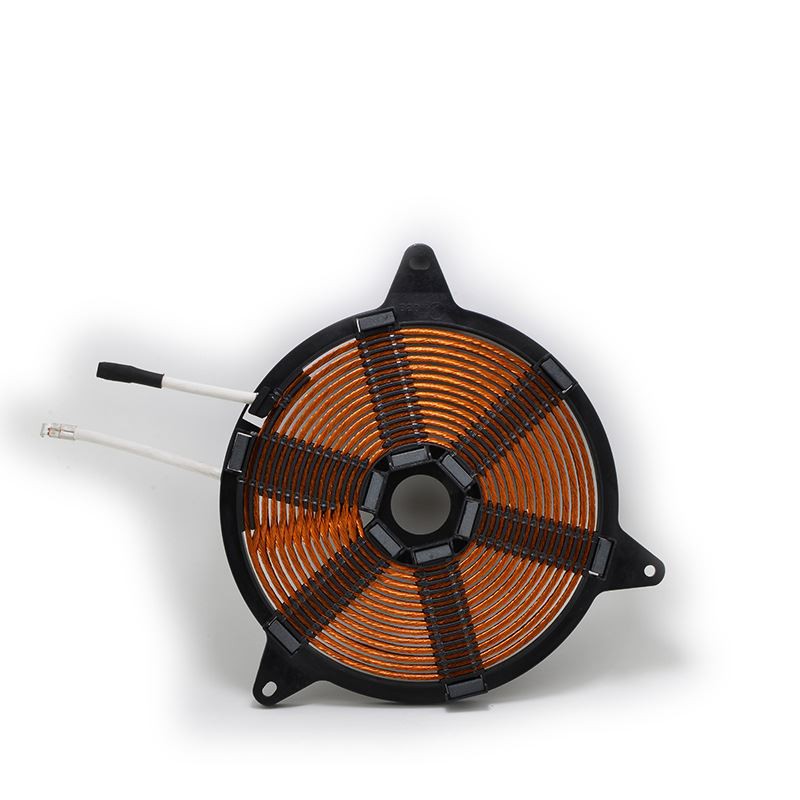

Electromagnetic Heating Coil
The induction cooker uses the heating plate to generate electromagnetic induction, which makes the iron pots produce high-frequency eddy current heating. The heating plate is composed of a heating plate coil and a heating plate tray.
Support material: 160-180℃PBT material, diameter; 244.87mm, diameter of center ring; 48.14mm, thickness: 17.59mm
Copper wire material: Model: QZY-2/paint temperature 180℃, insulation class: H class
Aluminum wire material: Model: 1PEW/F (L), paint temperature 180℃, insulation class: H class
Magnetic stripe: Mn-Zn ferrite
Terminal: Brass
Casing: glass fiber casing 1200KV-2000KV, 60S self-extinguishing, withstand voltage test 4.5-7.0KV.
Heat shrinkable tube: product wall thickness -0.20±0.05, insulation withstand voltage 600V, 60S without breakdown.
Scope of application: This product is suitable for household and commercial induction cookers, with a parameter range of 3KW to 5KW.
Pay attention to the "pot quality" of the pot. Since the induction cooker uses the principle of electromagnetic induction for energy conversion, there are strict requirements on the "pot quality" of the pot. If the "pot quality" is not good, it will not only affect the firepower of the induction cooker and reduce the thermal efficiency, but also shorten the service life and even cause damage to the induction cooker. Therefore, be sure to use a special iron pot for induction cookers.
