Polyimide foil heater, also known as Kapton foil heater, is a thin and flexible heating element that is commonly used in a variety of applications where space is limited, and a conformable heating solution is required. The Polyimide foil heater is made of a polyimide film, which is coated with a...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of polyimide foil heater in China, also supports custom service. Welcome to wholesale high quality polyimide foil heater at competitive price from our factory.

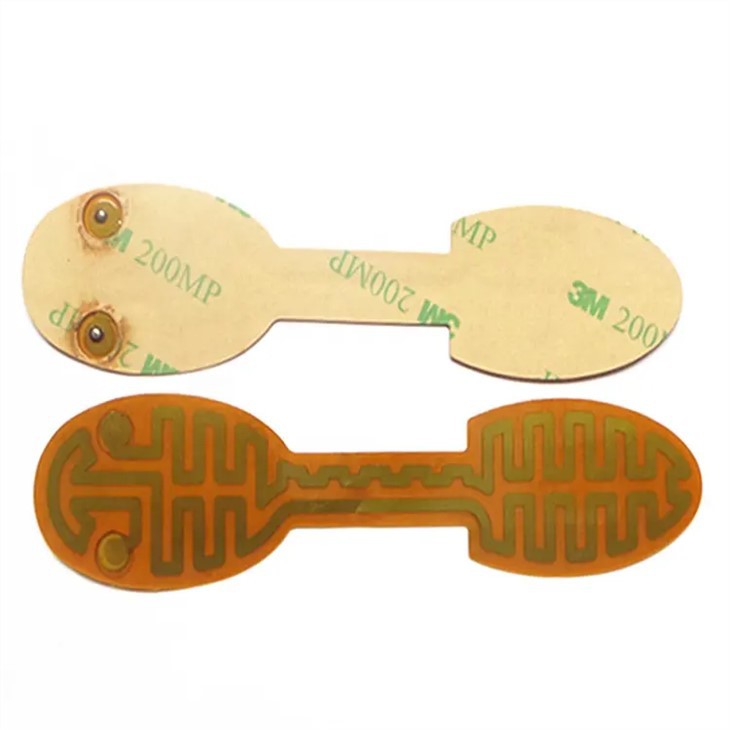

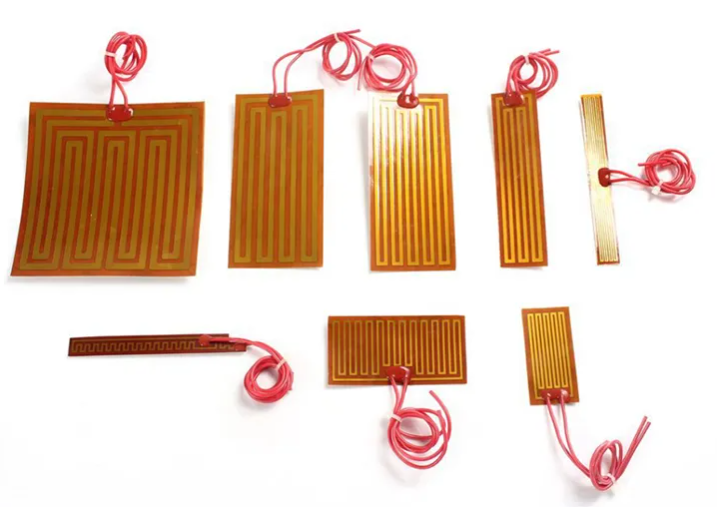

Polyimide foil heater, also known as Kapton foil heater, is a thin and flexible heating element that is commonly used in a variety of applications where space is limited, and a conformable heating solution is required. The Polyimide foil heater is made of a polyimide film, which is coated with a thin layer of metal that provides the heating element. This metal coating is typically made of copper or nickel, and the thickness of the coating can be varied to achieve the desired heating properties.
Specification of Polyimide foil heater
Polyimide foil heaters can be customized to meet specific requirements, including size and shape, voltage and power density, and temperature control features such as thermostats or thermocouples.
|
Voltage range |
1.5v~400v |
|
Power density range |
0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
|
Using temperature range |
-60~200°C(-140~392°F) |
|
Width range |
10mm~500mm(0.39"~19.68") |
|
Length range |
10mm~1800mm(0.39"~70.86") |
|
Thickness range |
Standard:0.126~0.266mm(0.005"~0.01") |
Feature of Polyimide foil heater
One of the key features of the Polyimide foil heater is its flexibility, which allows it to be bent and shaped to fit a variety of surfaces and applications. This flexibility also makes it easy to install and maintain, as the heater can be wrapped around or adhered to the surface being heated. The thin profile of the Polyimide foil heater also allows it to be used in applications where space is at a premium.
Another important feature of the Polyimide foil heater is its thermal efficiency. The thin metal coating allows for rapid and uniform heating of the surface, which can be especially useful in applications where precise temperature control is necessary. The Polyimide film also provides a high level of insulation, which helps to reduce heat loss and improve overall efficiency.
Application
Polyimide foil heater offers a versatile and reliable heating solution for a wide range of applications, with the ability to be customized to meet specific requirements. Its flexibility, thermal efficiency, and insulation properties make it an ideal choice for heating applications where space is limited and precise temperature control is necessary.
