Polyimide Insulated Flexible Heaters It's available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments. Polyimide is an organic polymer with very high dielectric...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of polyimide insulated flexible heaters in China, also supports custom service. Welcome to wholesale high quality polyimide insulated flexible heaters at competitive price from our factory.

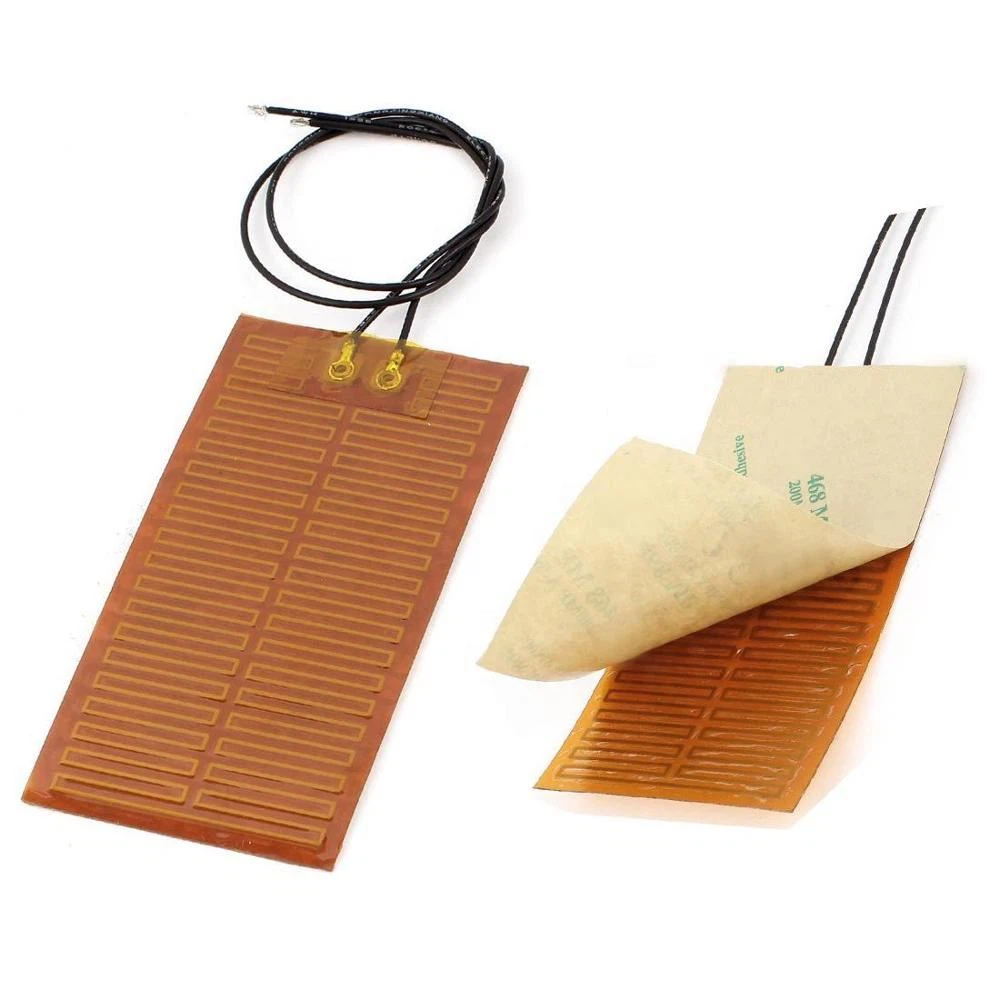

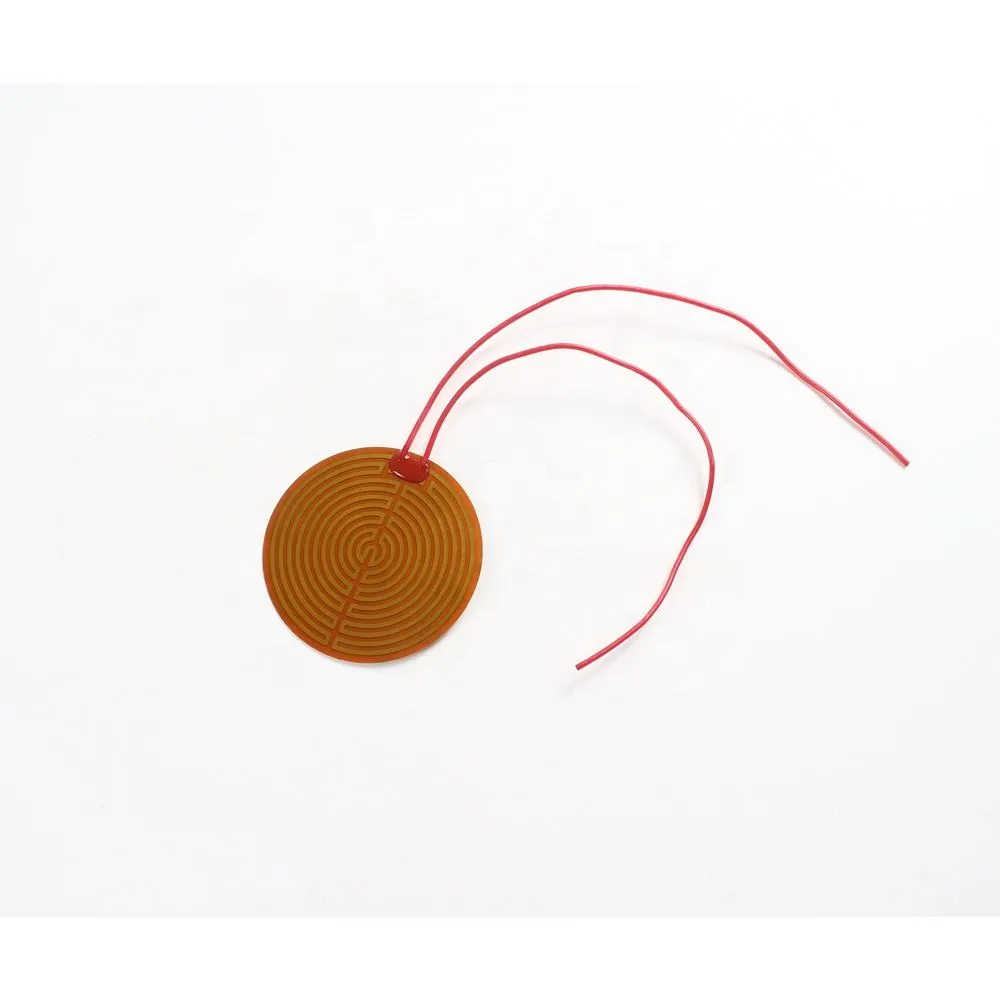

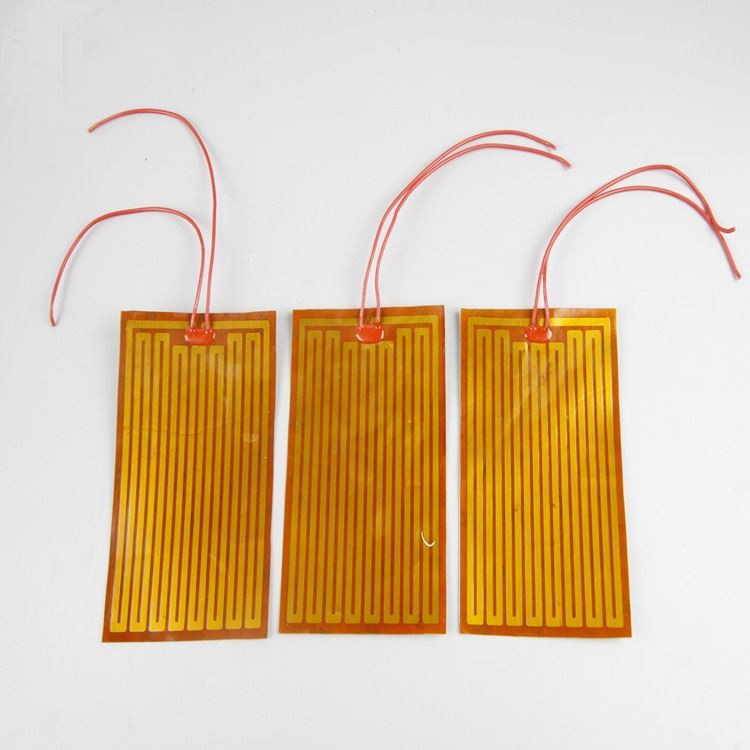

Polyimide Insulated Flexible Heaters
It's available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Specification :
1.Working voltage: 12 - 400V
2.Working temperature: -200°C - 200°C
3.Watt density: 1.1-6.5w/cm2
4.Mounting: PSA or mechanical
5.Max. size: 500x600mm
6.Thickness: ≤0.25mm
7.Exit: teflon, kapton or silicone insulated leads
Application:
1.The silicone rubber heaters have advantage of thinness, lightness and flexibility.
2.It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters.
3. The maxium wattage can be made for 2w/square cm.
4.The heaters can be made for any size and any shapes.
5.Inside the heater there are two types of heating way: one is resistance wire and another is heating film.
