Thick film heating elements are characterized by instant heating, so they are especially suitable for equipment that requires rapid hot water, such as smart water dispensers, plumbing machines, kitchen appliances, electric hot water faucets, coffee machines, new energy vehicles and other...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thick film heating elements in China, also supports custom service. Welcome to wholesale high quality thick film heating elements at competitive price from our factory.
Thick film heating elements are characterized by instant heating, so they are especially suitable for equipment that requires rapid hot water, such as smart water dispensers, plumbing machines, kitchen appliances, electric hot water faucets, coffee machines, new energy vehicles and other products and fields. At the same time, it has the characteristics of convenient installation and safety, and will be used on a large scale in the future.

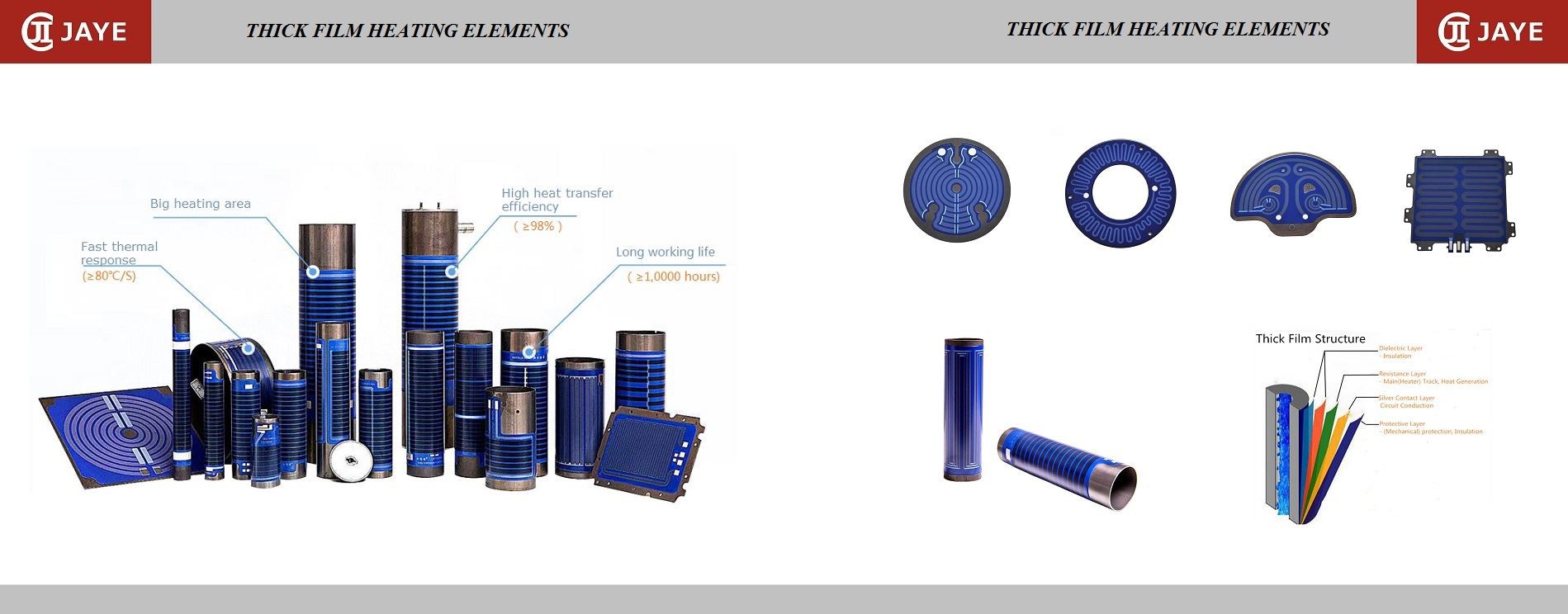

Features for Thick Film Heating Elements
1. Small size and high power density.
2. Fast heating speed.
3. High thermal efficiency and large water flow.
4. Stable and long service life, up to 10,000 hours or more.
5. Energy saving, thermal efficiency can reach more than 98%.
6. Flexible, working voltage and power can be customized.
7. The upgrade speed is fast.
Available Parameters
1.Heat Density>60W/cm²
2. Ramp-Up Rate: 80℃/S-150℃/S
3. Thermal Efficiency>98%
4.Service Life>10,000 hours
5.Dielectric Strength: 1,500V/5mA/60s
6. Power Deviation: -10% - +5%
7.Leakage Current≤0.25mA
8.Insulation Resistance≥200MΩ

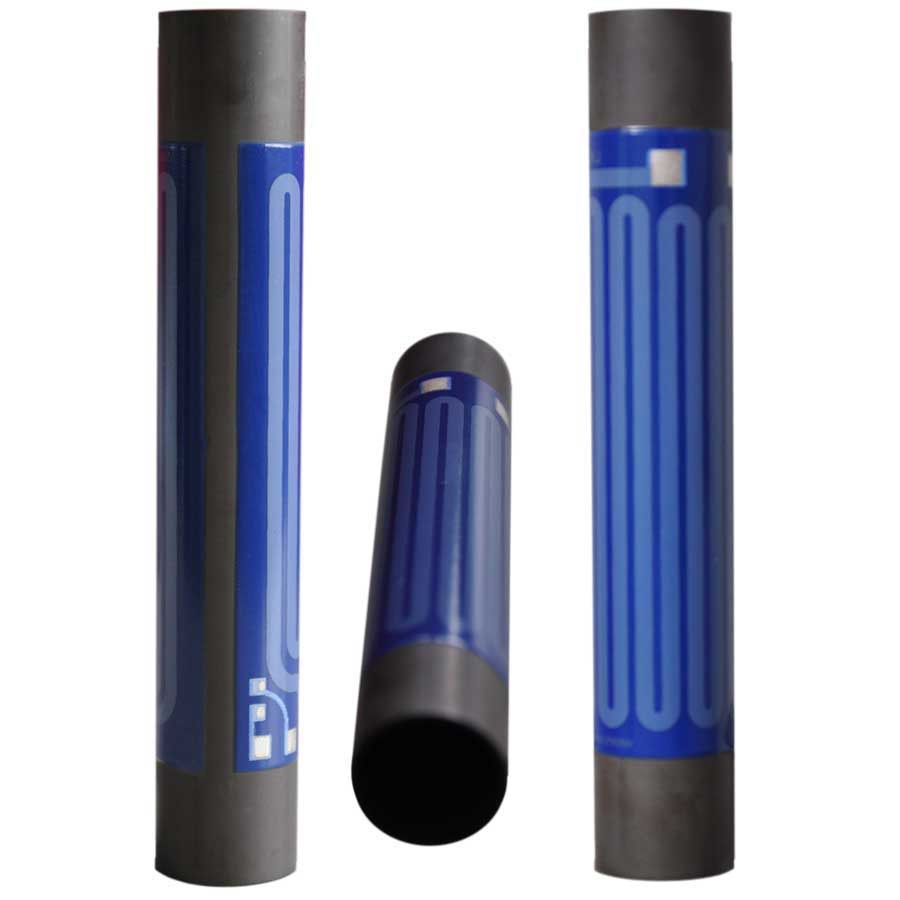

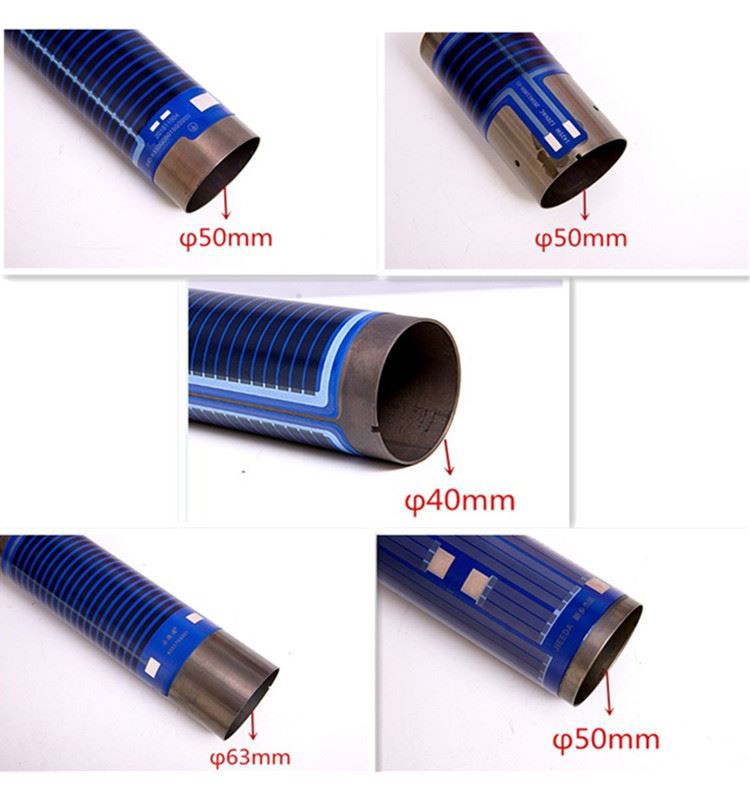

9.Dimension: Φ50mm*150mm(length)
The latest thick film heaters are not only thinner than in the past and can be designed in any shape, they are also more reliable. This opens up new market segments for customers to increase their competitiveness. Combined with the matching material system, the technology of thick film can give the appliances excellent hot uniformity.
