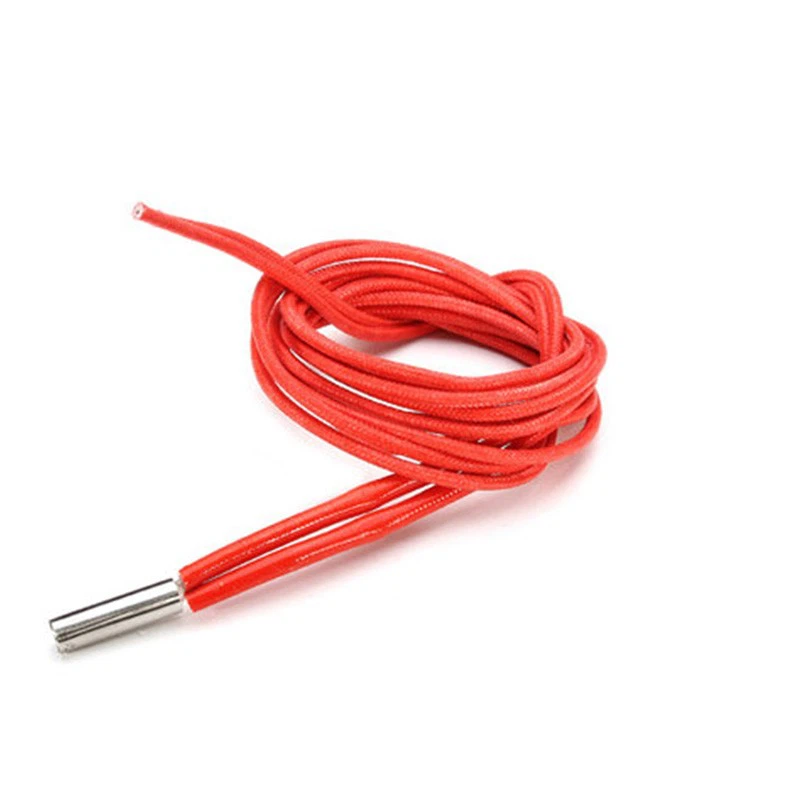

A cartridge heater is the core component responsible for heating the hot end of your 3D printer. It efficiently converts electrical energy into heat, ensuring your nozzle reaches and maintains the precise temperature required to melt filament.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 3d printer cartridge heaters in China, also supports custom service. Welcome to wholesale high quality 3d printer cartridge heaters at competitive price from our factory.
Our high-performance 3D Printer cartridge heater is engineered for reliability, rapid heat-up times, and consistent performance, making it the ideal direct replacement for worn-out heaters or a crucial upgrade for enthusiasts seeking better print quality and faster printing speeds.
| Product name | 3D Printer cartridge heater |

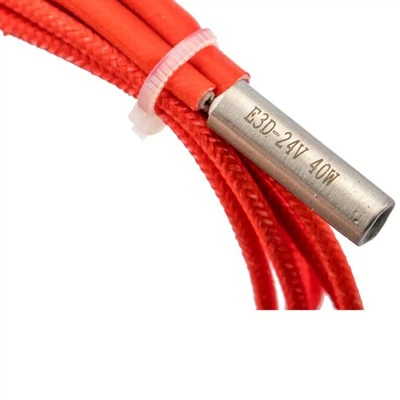

| Voltage | 24V (Also available in 12V and 110V options) |
| Power | 40W (Standard for most printers. Options: 30W, 50W) |
| Diameter | 6mm (Industry-standard size) |
| Length | 20mm (Common length. Also available in 15mm, 23mm, etc.) |
| Max Operating Temperature | Up to 450°C (842°F), suitable for all common 3D printing filaments. |
Precision Temperature Control
Excellent thermal coupling and minimal thermal lag allow for highly accurate temperature readings by the thermistor, reducing temperature fluctuations and preventing heat creep or jams.
Robust & Long-Lasting

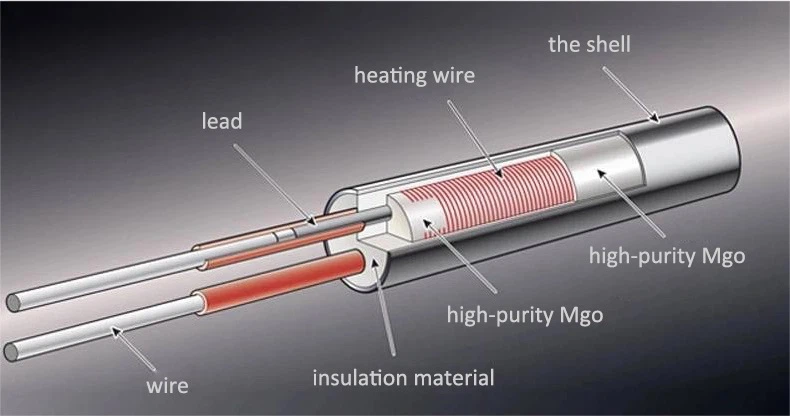

The stainless steel sheath is resistant to oxidation and physical damage, ensuring a long service life even under constant heating and cooling cycles.
Rapid Heat-Up Time
The optimized design and high-quality materials enable the heater to reach your target printing temperature significantly faster, saving you time on every print.
Easy Installation

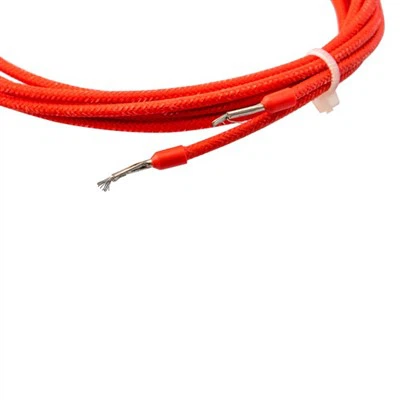

A direct drop-in replacement for most FDM (Fused Deposition Modeling) 3D printers, including Creality, Prusa, Anycubic, and more. The simple two-wire connection makes swapping it out a quick process.
If you are interested in mica band heater, please share information as below:
Q: How do I know if my 3D printer's cartridge heater is broken?
A: Common signs include the nozzle failing to heat up, error messages like "THERMAL RUNAWAY," or the reported temperature not increasing when it should.
Q: Is this compatible with my [Printer Model]?
A: Most 3D printers using a standard 6mm diameter heater cartridge are compatible. Please verify the voltage (24V is most common), wattage (typically 40W), and physical dimensions of your current heater.
Q: Can I use a higher wattage heater for faster heating?
A: While a higher wattage (e.g., 50W) will heat faster, it can strain your printer's mainboard MOSFET if it's not designed for the extra load. Always consult your printer's specifications before upgrading.
