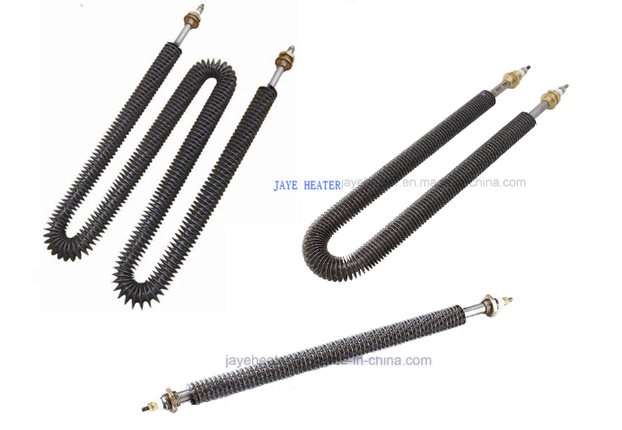

Finned tubular coil heater is used for special applications that require a higher surface area for improved heat transfer. The finned tubular coil heater is usually used in air or gas heating applications, primarily in low temperature and low vacuum environments. Finned tubular coil heater...
Finned tubular coil heater is used for special applications that require a higher surface area for improved heat transfer. The finned tubular coil heater is usually used in air or gas heating applications, primarily in low temperature and low vacuum environments. Finned tubular coil heater consists of a steel tube with small, evenly spaced fins around the outside. The fins increase the surface area of the tube and enhance convection heat transfer from the heated element to the surrounding air. The fins are usually made from the same material as the tube, but can also be made from other materials, such as aluminum or copper, to maximize heat transfer in certain applications.
| Shape | Straight; U shape; M/W shape |
| Tube material | SS304 316 316L INCOLOY 800 or others |
| Tube diameter | 6.5mm,8mm,10mm,12mm and others |
| Length range | 10mm to 6000mm |
| Voltage | 110V 180V 220V 230V 280V 380V or as your demands |
| Wattage | 0.5KW to 15KW |
1. Finned tubular coil heater is tubular metal elements with metal fins attached to the external surface.
2. Finned tubular coil heater provides an efficient way to dissipate heat and are usually used in electric water heaters, electric ovens, and other heaters.
3. Stainless steel is a durable material that is resistant to corrosion and can withstand harsh environments.
4. Finned tubular coil heater is manufactured from long-lasting metals, typically heavy-gauge steel or stainless steel, and are often used with automatic control systems for precise temperature control.
5.Finned tubular coil heater is also capable of achieving higher watt densities than solid-rod elements.
1. Heat tracing systems - Finned tubular coil heater is used in industrial facilities and oil pipes for heat tracing purposes.
2. Wax Molds - Finned tubular coil heater is used in wax molds to melt the wax and create intricate wax figurines or shapes.
3. Electric Boilers - Finned tubular coil heater can be used in electric boilers to transfer heat to the water to produce hot water or steam.
4. HVAC Systems - Finned tubular coil heater is used in HVAC systems to supplement heat in areas where the regular heating system is insufficient.
