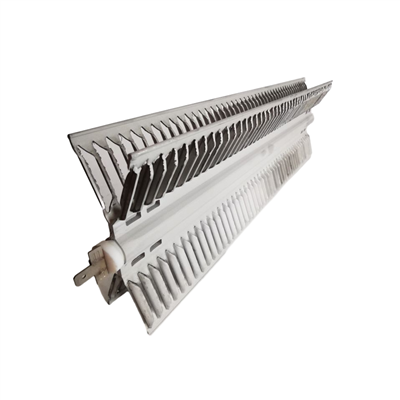

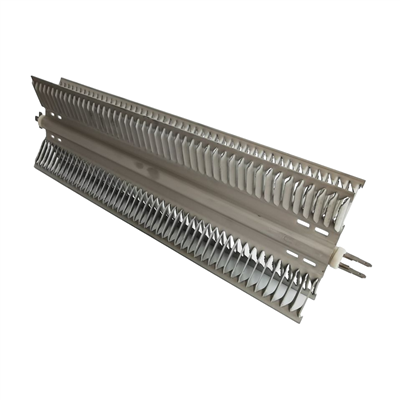

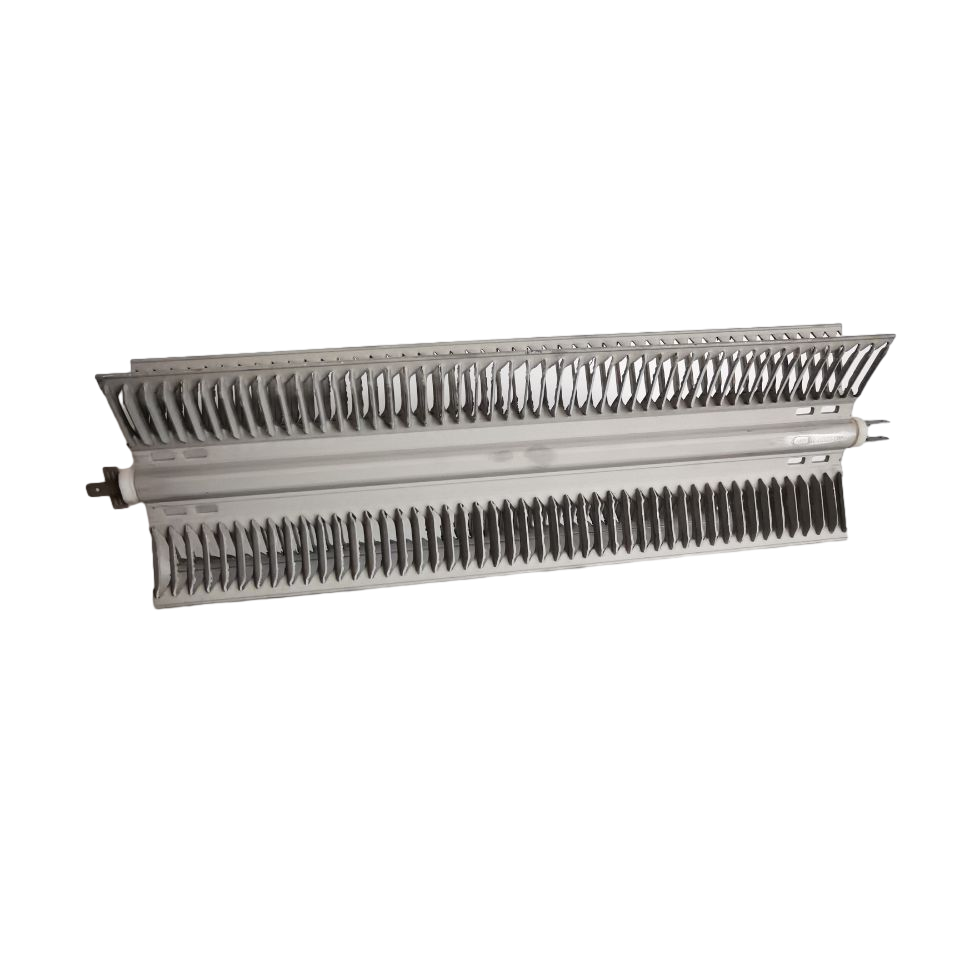

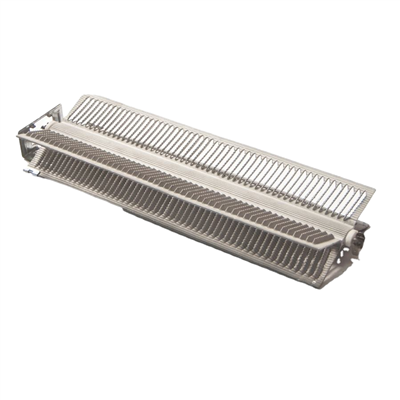

Finned X-Shaped Aluminium Resistors Meticulously designed by Jaye Heater, a trustworthy name in industrial heating and resistance products, our Finned X-Shaped Aluminium Resistor offers outstanding performance in tough service conditions. Finned resistors provide maximum heat dissipation,...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of finned x-shaped aluminium resistors in China, also supports custom service. Welcome to wholesale high quality finned x-shaped aluminium resistors at competitive price from our factory.
Meticulously designed by Jaye Heater, a trustworthy name in industrial heating and resistance products, our Finned X-Shaped Aluminium Resistor offers outstanding performance in tough service conditions. Finned resistors provide maximum heat dissipation, structurally sound performance, and long-term stability as a dynamic braking resistor, motor control, or power supply system. We provide a component with a unique X-shaped finned design made with quality aluminum that maintains expertise handling a high-power load while providing safe operation and durability.
| Resistance Range | 1 Ω to 1000 Ω |
| Rated Power | 50 W to 2000 W |
| Tolerance | ±5% (Standard) |
| Temperature Coefficient | Low ±20 ppm/°C |
| Maximum Operating Temperature | Up to 260°C (500°F) |
| Insulation Resistance | >100 MΩ (at 500V DC) |
| Dielectric Strength | 1500V AC, 50/60Hz for 1 minute |
| Resistance Wire | Cr20Ni80 (Nickel-Chromium) |
| Finned Body Material | High-Purity Aluminum Alloy (1060/1070) |
| Cooling Method | Natural Air Cooling (Convection) |
Reliability and Consistency
Delivers dependable performance and consistent heating thanks to rigorous quality control procedures.
Robust & Non-flammable Construction
The entire unit is non-flammable and features a sturdy, one-piece construction that can withstand vibration, mechanical stress, and high temperatures without degradation.
Optimized Performance
Premium aluminum alloys boost thermal efficiency and ensure even heat distribution, maximizing overall performance.
Stable Resistance Wire
At the core, a high-resistance alloy wire (such as Cr20Ni80) is meticulously wound on a ceramic core and embedded in high-purity magnesium oxide, ensuring excellent electrical insulation and heat transfer from the wire to the aluminium body.
Jaye Heater combines years of engineering expertise with stringent quality control to deliver components you can trust. Our Finned X-Shaped Aluminium Resistors are a testament to our commitment to innovation, quality, and customer satisfaction. For a reliable, high-performance resistance solution that enhances your product's durability and efficiency, look no further.
