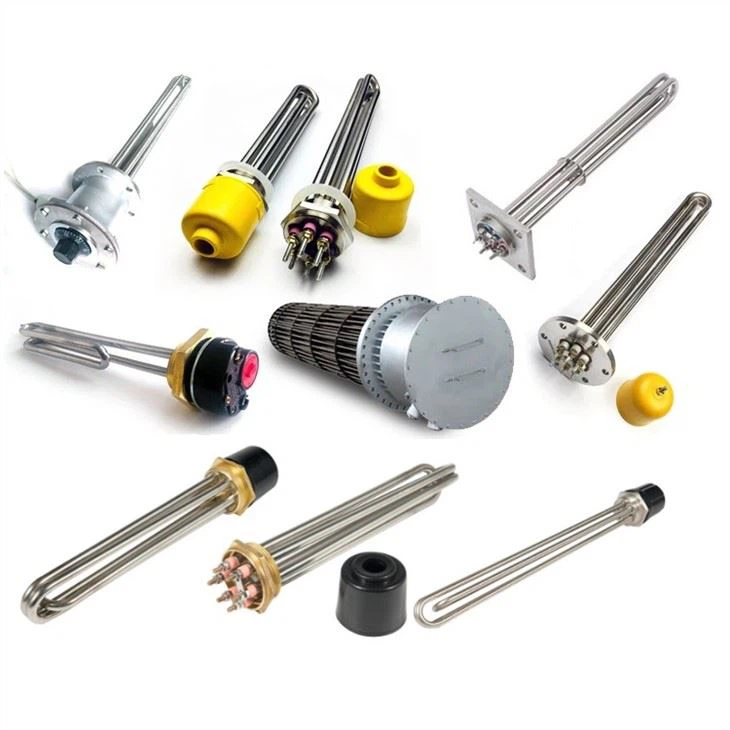

Electric Industrial Water Heater It is generally used in the working environment of heating liquid. Before customizing the design, the customer needs to inform the main components of the specific heated liquid and the ideal installation method so that we can set the flat flanged electric heating...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electric industrial water heater in China, also supports custom service. Welcome to wholesale high quality electric industrial water heater at competitive price from our factory.
Jaye custom Electric Industrial Water Heaters are generally used in the working environment of heating liquid. Before customizing the design, the customer needs to inform the main components of the specific heated liquid and the ideal installation method so that we can set the flat flanged electric heating pipe cooling At the same time, we also need to inform us of the pressure of the specific working environment, so that we can choose the diameter, wall thickness and flange thickness of the heating pipe for you.
Specification of Electric Industrial Water Heaters:
1. Voltage and power
2. Pipe diameter, usually: 8mm, 10mm, 12mm, 16mm, 20mm
3. Plane flange: GB/T9119-2010 plate flat welded steel pipe flange, commonly used sizes are: DN65-DN80-DN100-DN125-DN150-DN200-DN250, etc., according to different pressure, choose different flanges Standard size. Of course, in the design and production process, in order to reduce the cost, the flange thickness will be changed without affecting the life. You can consult the sales staff for details.
4. Usually 1, 2, 3, 6, 9, 12, etc. (usually multiples of 3) U-shaped tubes are combined by TIG argon arc welding on the flange
5. Tube shell material selection: The main materials are 10# carbon steel, SUS304, SUS321, SUS316L, SUS310S (commonly known as: 2520), titanium tube, etc.
6. Tube shell sheath selection: the surface of the metal tube shell can be coated with anti-corrosion or anti-scaling paint, which can effectively enhance the corrosion resistance and anti-scaling performance.
7. Pipe shell sheathing process: liquid spraying and electrostatic powder spraying are available for selection. The electrostatic powder-coated heating tube directly solves many problems of the iron-dragon casing heating tube, and it can be used instead of it, and the effect is better.
8. Flange material: 10# carbon steel, SUS304, SUS321, SUS316L
9. Junction box: ordinary glass fiber reinforced plastic cover or explosion-proof cover can be selected
10. Electric heating wire material selection: generally iron-chromium-aluminum wire (Beijing Shougang), nickel-chromium wire (generally H140, 2080 resistance wire, etc.). The choice of these two depends on the customer's working environment (temperature and vibration).
The flat flange electric heating pipe is generally installed horizontally or vertically. Normally, it is recommended to install it horizontally. This can ensure that the heating part of the electric heating pipe can be completely immersed in the liquid to prevent dry burning. If vertical installation is necessary, it is recommended to consider the design of the cold zone.
