Silicon Carbide (SiC) Heating Elements

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicon carbide (sic) heating elements in China, also supports custom service. Welcome to wholesale high quality silicon carbide (sic) heating elements at competitive price from our factory.







Material	Silicon Carbide(SIC)
Temperature	200 ℃~1625 ℃ (392℉ – 2957℉)
Diameters	10 mm – 55 mm
Hot zones	Max 4.2 m
Lengths	100 mm – 6 m

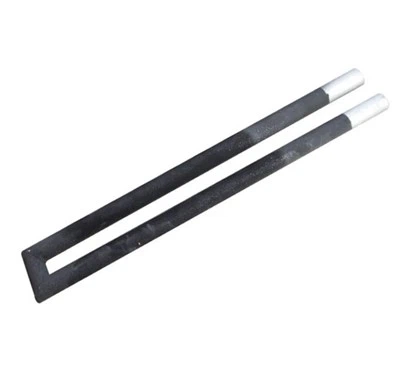

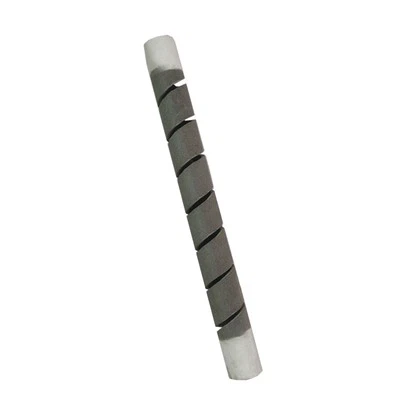

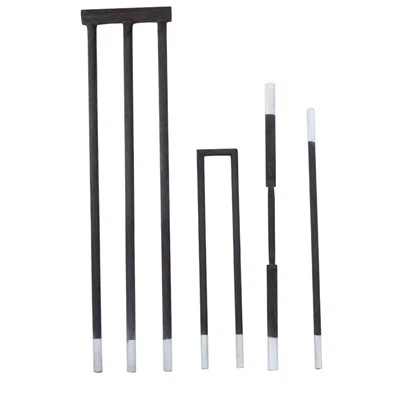

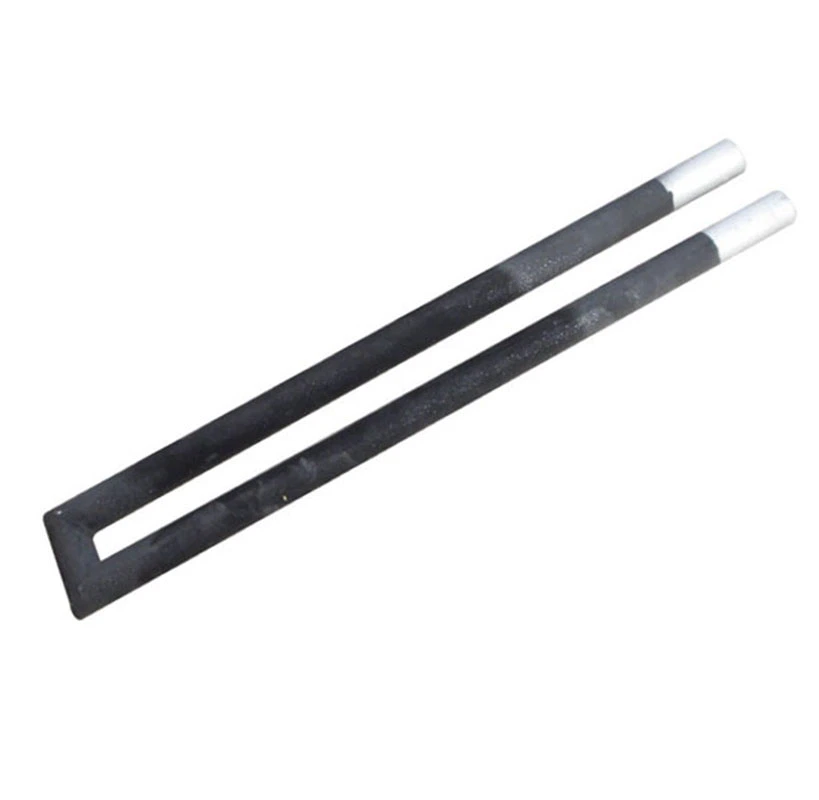

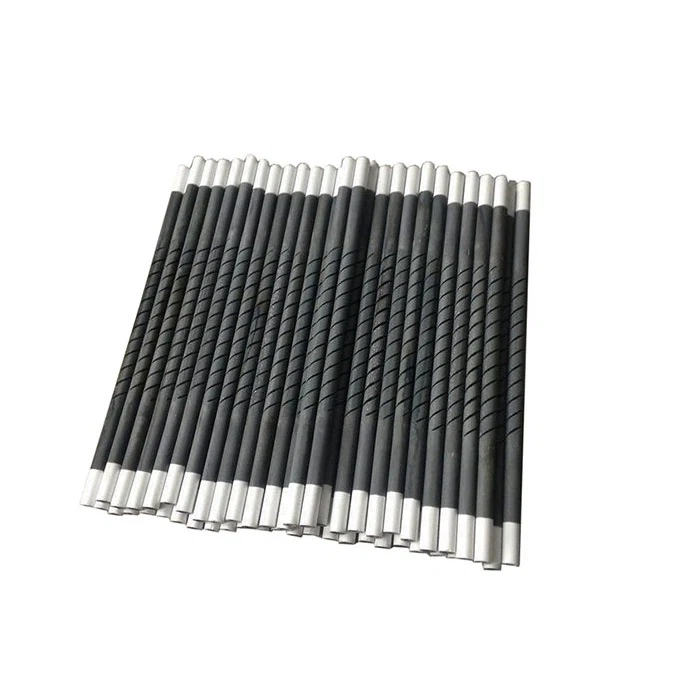

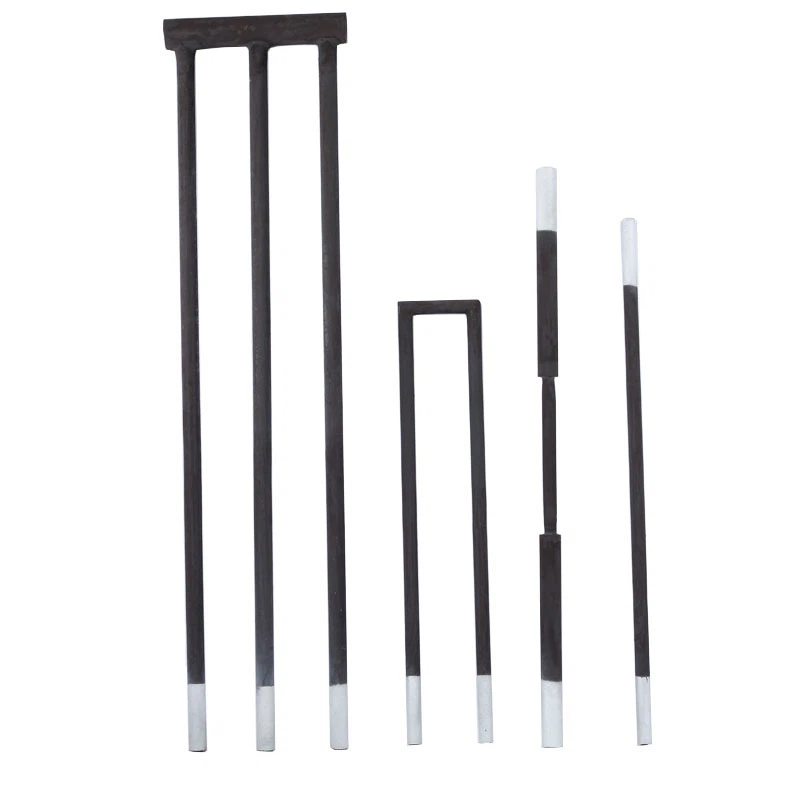

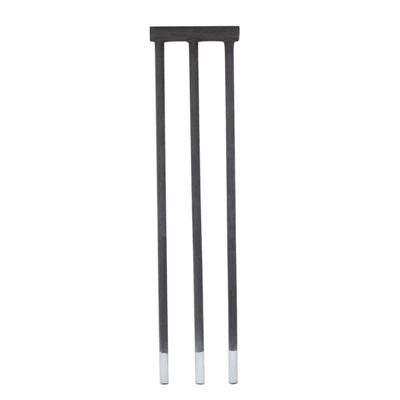

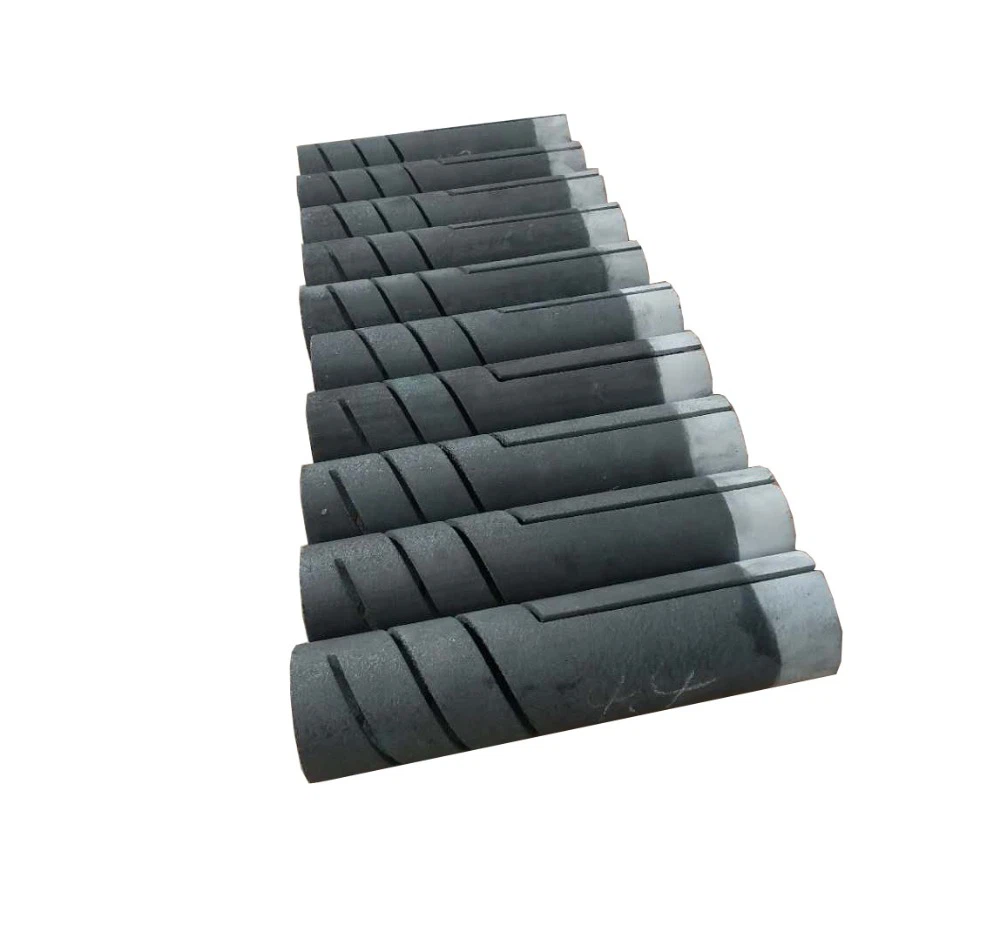

Shape	slot type, U type, SGR type, SG type, M type, ED type, DB type
Coating	Alkali resistant Coating, A Coating, B Coating







• Extreme High-Temperature Capability: Perfectly suited for long-term operation at temperatures ranging from 600°C to 1625°C, making them indispensable for advanced industrial and research processes.
• Exceptional Long Service Life: Thanks to their high oxidation resistance and ability to withstand thermal cycling, our SiC elements offer a significantly longer operational lifespan compared to metallic alternatives, reducing downtime and replacement costs.
• Rapid Heating and High Power Density: SiC's unique properties allow for fast heat-up and cool-down cycles, improving process efficiency. Their high power density enables compact furnace design without compromising on performance.
• Stable Resistance & Aging Performance: While SiC elements experience a predictable resistance increase over time (aging), Jaye Heater's precise manufacturing ensures consistent initial properties and stable aging characteristics for reliable power control throughout their life.
• High Mechanical Strength: These elements retain high mechanical strength even at elevated temperatures, ensuring durability and resistance to warping or sagging in vertical or horizontal installations.



















• Industrial & Ceramic Furnaces: Sintering of technical ceramics, powder metallurgy, and kiln furniture heating.
• Metallurgical Processing: For heat treatment, melting, and sintering of metals in high-temperature furnaces.
• Glass Manufacturing: Used in glass melting, bending, and annealing furnaces.
• Semiconductor & Electronics: For diffusion, oxidation, and CVD processes in semiconductor wafer fabrication.
• Research & Development: Providing precise and reliable high temperatures in laboratory and research furnaces.





Notice for using and installing SIC heater:
1. Be protected against damp during storing or installing to ensure the performance ;
2. Divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other;
3. Be careful when using and maintaining;
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.



Ready to enhance your high-temperature process efficiency and reliability? Contact the heating experts at Jaye Heater today to discuss your application requirements and discover how our Silicon Carbide Heating Elements can provide a superior return on investment.
