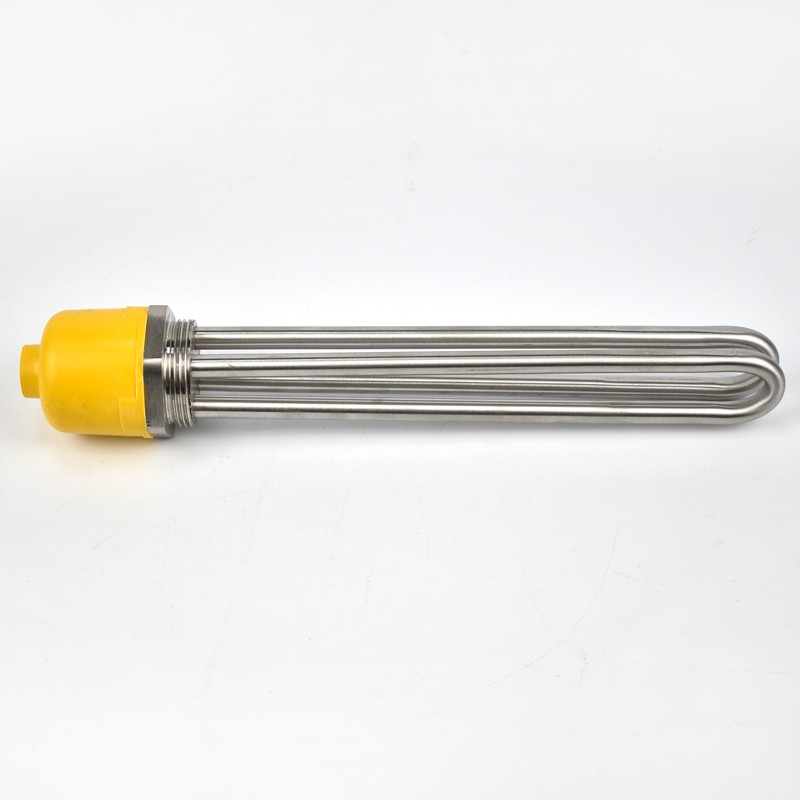

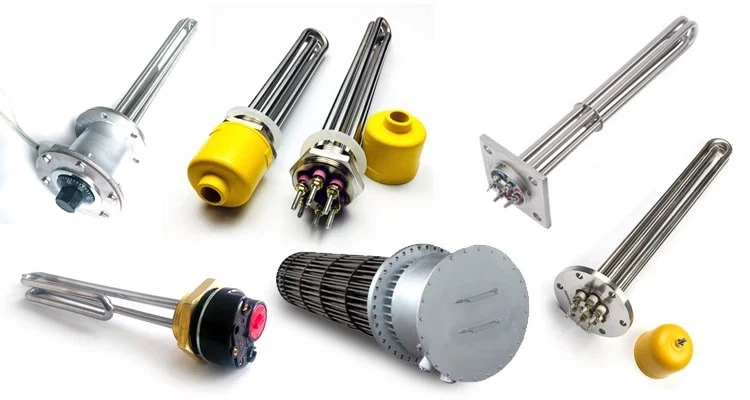

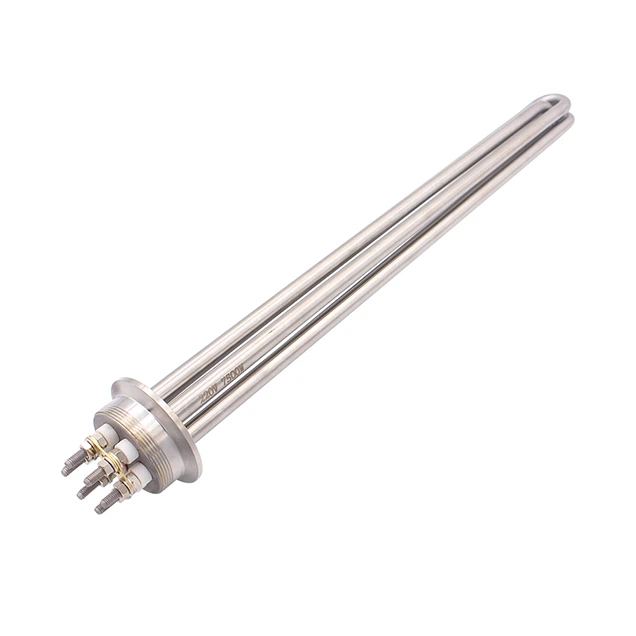

A Flange Immersion Heating Element is an electric heating device designed to be mounted on a tank or vessel using a flange connection. The heating elements extend directly into the liquid or process medium, providing efficient and uniform heat transfer. It is widely used in industrial heating applications such as water, oil, chemicals, and various process fluids.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flange immersion heating element in China, also supports custom service. Welcome to wholesale high quality flange immersion heating element at competitive price from our factory.
A Flange Immersion Heating Element is an electric heating device designed to be mounted on a tank or vessel using a flange connection. The heating elements extend directly into the liquid or process medium, providing efficient and uniform heat transfer. It is widely used in industrial heating applications such as water, oil, chemicals, and various process fluids.
| Product name | Flange Immersion Heating Element |
| Voltage | 120V / 240V / 380V / 415V / 480V / 600V (Customized) |
| Power | 1 kW – 300 kW or higher |
| Sheath Material | SUS304, SUS316, Incoloy 800/840 |
| Operating Temperature | 50°C – 800°C (Depending on material) |
| Size | Customized |
As the heating element is fully immersed in the media, there is direct and uniform heating, minimizing energy loss, reducing heating time, and enhancing process efficiency.
The heater tubes can be manufactured from robust materials such as SUS316, Incoloy, and Titanium that are resistant to corrosion, high temperatures, and harsh chemicals.

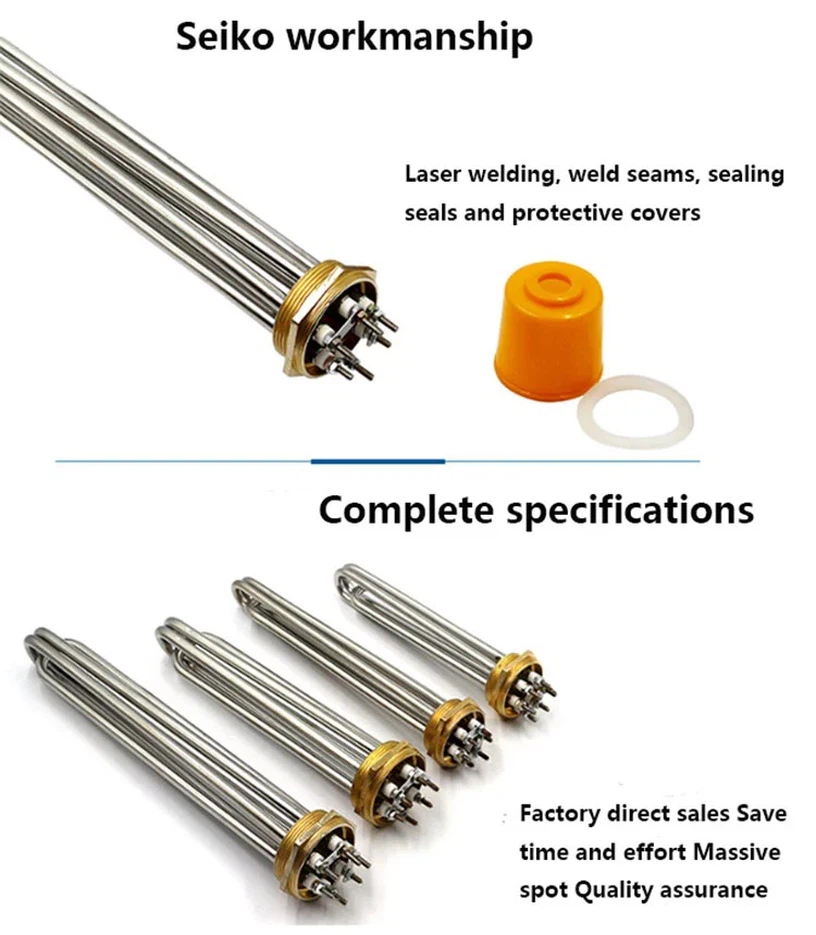

The tubular elements are made from a robust mechanical structure that can withstand wear, scaling, and thermal fatigue, thus leading to lower downtime, maintenance costs and resource expenditures over time.
Differing power ratings, sizes of flanges, lengths of tubes, and sheath materials can be customized to meet exact process requirements and optional components, such as a thermostat or temperature sensor, can also be attached.
Tanks and circulating systems for water
Boilers and steam generators
Water for processing and thermal systems
Lubricating oil
Hydraulic oil
Fuel oil (diesel, heavy oil, HFO)
Heat transfer oil systems
Acid and alkaline solutions
Tanks for storing chemicals
Vessels for reactions
Preheating the solvent and controlling temperature
Process water
Frying systems
Cleaning and sanitation equipment
Biodiesel production
Wastewater treatment
Thermal energy storage systems
If you are interested in Flange Immersion Heating Element, please share information as below:
