Jan 18, 2024

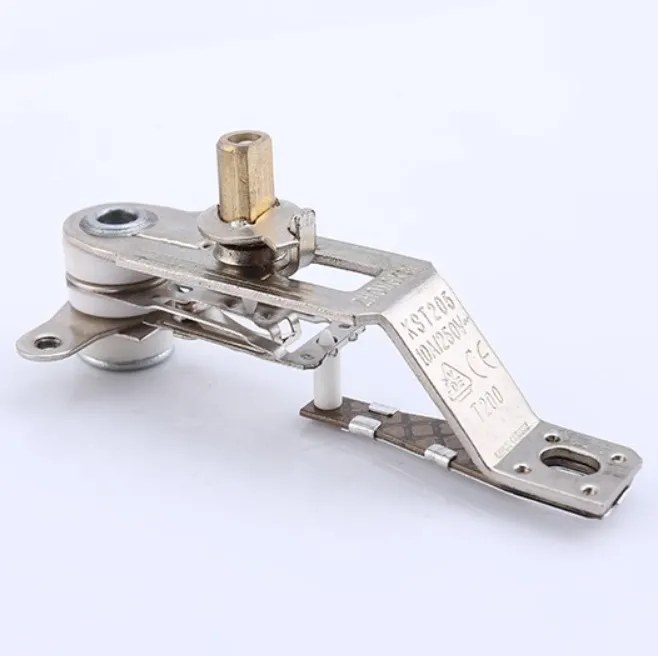

A KST (Klixon Snap-Action Thermostat) bimetal thermostat is a type of temperature control device commonly used in various applications, including appliances, HVAC systems, and industrial equipment. Here's a basic explanation of how a KST bimetal thermostat works:
1. Bimetallic Strip:
The core component of a KST bimetal thermostat is a bimetallic strip. This strip is typically composed of two different metals with different coefficients of thermal expansion. The metals are bonded together, forming a strip that curls or bends when exposed to temperature changes.
2. Snap-Action Mechanism:
The bimetallic strip is designed with a snap-action mechanism. This mechanism allows the strip to rapidly switch between two states as it reaches a certain temperature threshold.
3. Contacts:
The bimetal thermostat has electrical contacts connected to the bimetallic strip. These contacts are positioned in such a way that the snap-action movement of the strip causes them to either open or close.
4. Temperature Setting:
The thermostat includes a temperature setting or adjustment mechanism that allows users to set the desired temperature at which the thermostat should act.
5. Mounting and Sensing:
The thermostat is mounted in the area where temperature control is needed. For instance, it could be placed in a heating element, cooling system, or an environment where temperature regulation is crucial.
6. Heating or Cooling System Control:
The electrical contacts of the bimetal thermostat are part of the control circuit of a heating or cooling system. When the temperature reaches or exceeds the setpoint, the bimetallic strip undergoes a snap-action movement, causing the contacts to change state.
7. Cycling On and Off:
As the bimetallic strip snaps back and forth due to temperature changes, it cycles the electrical contacts on and off. This, in turn, controls the operation of the connected heating or cooling system.
8. Maintaining Temperature:
The KST bimetal thermostat continues to monitor the temperature, cycling the heating or cooling system on and off as needed to maintain the set temperature. The snap-action movement ensures a quick and decisive response to temperature fluctuations.
In summary, a KST bimetal thermostat works by using the snap-action movement of a bimetallic strip to control electrical contacts. The opening and closing of these contacts regulate the operation of a connected heating or cooling system, allowing the thermostat to maintain a desired temperature set by the user.
