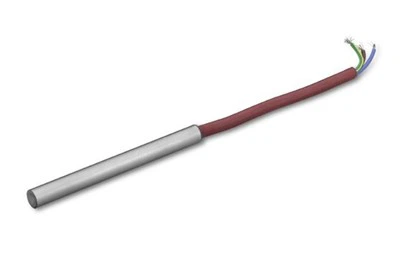

Precision cartridge heaters are essential in semiconductor manufacturing because they provide highly localized, accurate, and consistent heating to specific areas of the equipment, which is critical for the precision and reliability needed in semiconductor processes.
Here's how they work in this context:
Heating Element: At the core of a precision cartridge heater is a metal heating element, typically made from a resistance wire (like Nichrome), which generates heat when electric current passes through it.
Insulation: The heating element is surrounded by high-quality insulation materials like magnesium oxide (MgO) or ceramic, which ensure the heat is efficiently directed to the intended area, minimizing energy loss.
Metal Sheath: The heater is usually encased in a metal sheath (often stainless steel) that protects the heating element and insulation, while also providing mechanical strength and thermal conductivity.
Uniform Heating: The heat generated by the resistance wire is evenly distributed across the heater, ensuring consistent temperatures at the contact points. In semiconductor manufacturing, this is especially important to avoid thermal stress, which could lead to defects in sensitive materials.
Customization: Precision cartridge heaters can be tailored to specific dimensions, watt densities, and temperature profiles based on the needs of the semiconductor equipment. This level of customization ensures that the heat is applied exactly where and how it is needed.
Temperature Sensors: In semiconductor production, maintaining precise temperature control is crucial. Cartridge heaters can be paired with temperature sensors (like thermocouples) that are embedded or mounted on the heater to provide real-time temperature monitoring.
PID Controllers: The heater's power is typically controlled through a closed-loop feedback system using a PID (Proportional-Integral-Derivative) controller, which adjusts the current supplied to the heater based on sensor readings, ensuring the temperature stays within the required range.
Wafer Processing: Precision cartridge heaters are used in processes like wafer baking, drying, or heating, where uniform and controlled heating is essential to prevent warping or cracking.
Etching & Deposition: Certain processes such as chemical vapor deposition (CVD) and etching require precise and consistent temperature control to ensure the proper reaction rates and uniformity of material deposition.
Thermal Bonding: When bonding materials at the semiconductor level, the heat must be localized and consistent to ensure proper adhesion without affecting surrounding areas. Cartridge heaters provide that localized precision.
Quick Response: Precision cartridge heaters are known for their fast heat-up times, which is beneficial in semiconductor processes where rapid heating and cooling cycles are required.
Energy Savings: Since the heat is efficiently concentrated in the desired area with minimal losses, these heaters contribute to energy efficiency, reducing the overall power consumption during manufacturing.
Long Lifespan: In semiconductor manufacturing, equipment uptime is critical. Precision cartridge heaters are designed for longevity, with high resistance to thermal cycling, corrosion, and mechanical stress, making them ideal for the demanding conditions of semiconductor production.
Stable Performance: Their stable and consistent heating ensures that sensitive processes are not interrupted by sudden fluctuations in temperature, which could lead to defective products or downtime.
In summary, precision cartridge heaters in semiconductor manufacturing play a pivotal role by providing highly efficient, localized, and precise heating, which is essential for maintaining product quality, improving energy efficiency, and reducing operational downtime.
