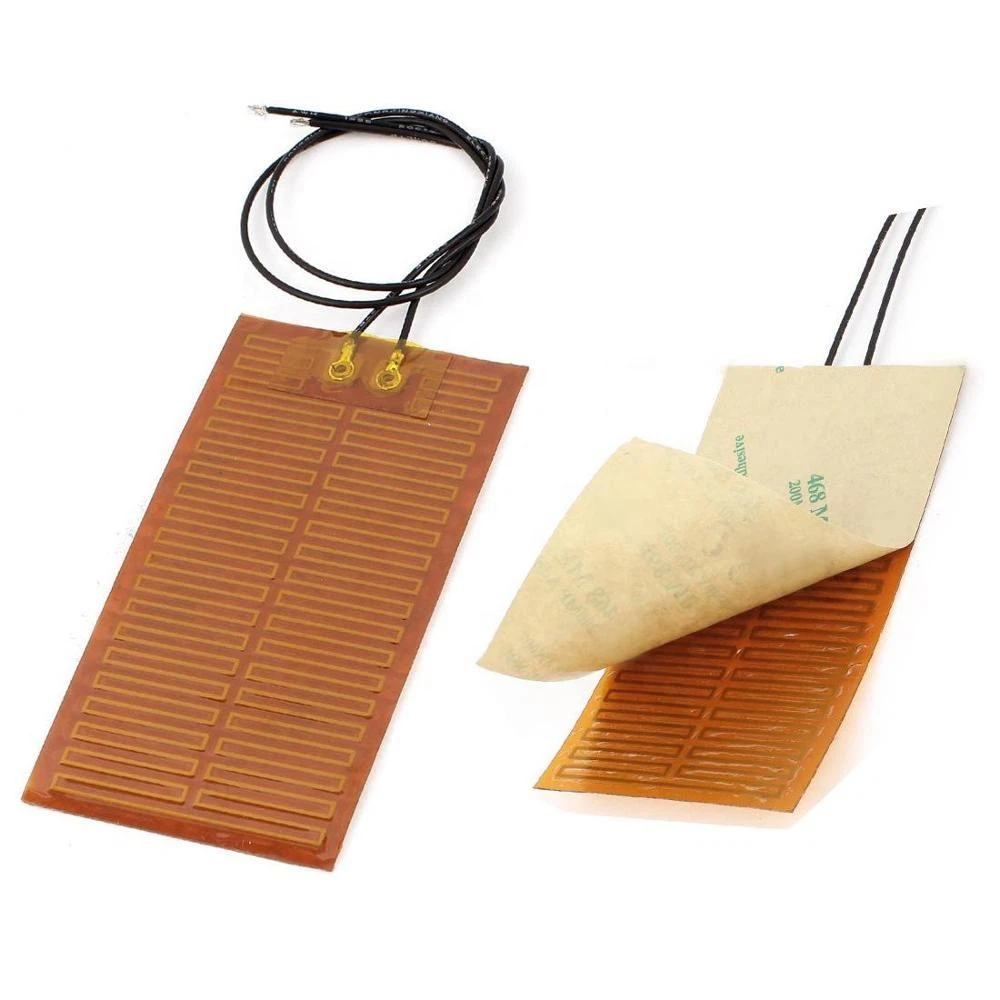

How to select a PI film heater for my application?
Selecting the right Polyimide (PI) film heater for your application involves considering several key factors to ensure optimal performance, safety, and integration. Here's a comprehensive guide to help you make an informed decision:
Standard Range: PI film heaters typically operate within -40°C to +200°C.
High-Temperature Options: Some variants can withstand temperatures up to 250°C, depending on the adhesive used. heatwise.com.my
Thin Films (13µm–25µm PI): Ideal for compact or wearable devices due to their flexibility and low mass.
Thicker Films (50µm PI + 25µm adhesive): Suitable for high-power applications requiring better heat distribution and mechanical strength. best-heaters.com
Power Range: Typically from 1W to 1200W, depending on application needs.
Watt Density: Ranges from 0.5W/cm² to 7.8W/cm²; higher densities may require temperature control systems. heatwise.com.my
Voltage Range: From 1.5V to 500VAC, with some models supporting up to 380V.
Insulation Resistance: Typically >100MΩ; dielectric strength up to 1000V. best-heaters.com
Adhesive Types: Acrylic, silicone, or Teflon-based adhesives, each offering different temperature tolerances.
Mounting Methods: Options include pressure-sensitive adhesives (PSA), epoxy bonding, or mechanical crimping, depending on installation requirements.
