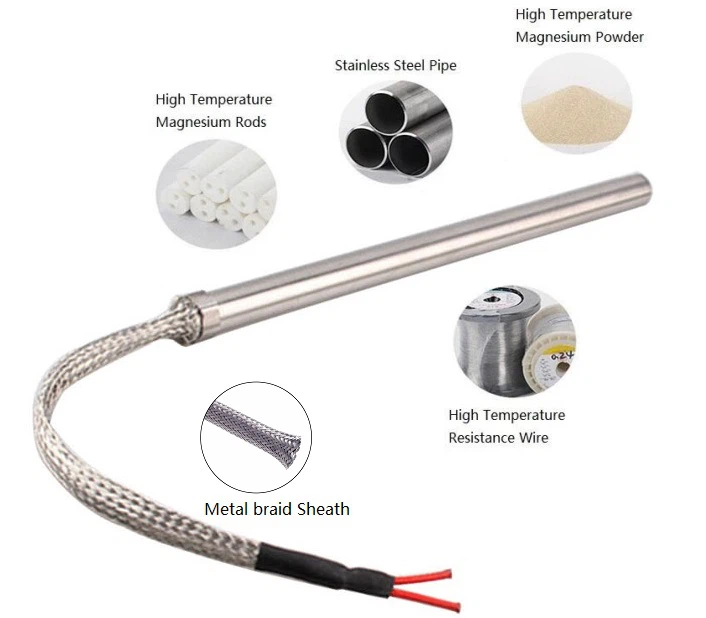

Incoloy, Inconel, or Stainless Steel? A Guide to Cartridge Heater Sheath Materials

Selecting the right cartridge heater is critical for performance, longevity, and application safety. The sheath material is often the deciding factor. Choosing incorrectly can lead to premature failure, process contamination, or safety hazards.



So, how do you choose between the common options of Incoloy, Inconel, and Stainless Steel? This guide breaks down the properties of these three primary sheath materials to help you make an informed decision.

1. Stainless Steel – The Cost-Effective All-Rounder

Stainless steel is the most widely used sheath material, ideal for low to medium-temperature applications in non-corrosive environments.

Common Types: 304 and 316 stainless steel. 316 offers better resistance to chlorides due to its higher molybdenum content.

Advantages:

• Cost-Effective: The most economical option.
• Good General Corrosion Resistance: Resists water, steam, most oils, and atmospheric conditions well.
• Balanced Properties: Offers good mechanical strength and machinability.

Limitations:

Limited High-Temperature Performance: Susceptible to oxidation and intergranular corrosion at sustained high temperatures (typically above 700°F / 370°C), leading to loss of strength.

Poor resistance to strong acids and chlorides.

Ideal For:

Plastic injection molding and extrusion machines

Hot seal jaws on packaging equipment

Water and oil heating systems

Food processing equipment (with non-aggressive cleaners)

2. Incoloy – The Expert in Anti-Carburization & Oxidation

Incoloy (typically 800 or 840) is an iron-nickel-chromium alloy renowned for its exceptional resistance to oxidation and carburization at high temperatures.

Advantages:

• Superior Anti-Carburization: Effectively resists carbon absorption in carbon-rich atmospheres (e.g., heat treatment furnaces), preventing embrittlement. This is its key advantage over stainless steel.
• Excellent Oxidation Resistance: Maximum service temperatures up to approximately 2100°F (1150°C).
• Good Resistance to Sulfide Corrosion.

Limitations:

Higher cost than stainless steel.

Performance can be less robust than Inconel in reducing atmospheres with chloride ions.

Ideal For:

Carburizing, nitriding, and other chemical heat treatment furnaces

Ethylene cracking furnaces

Gas radiant tubes

High-temperature components in industrial furnaces

3. Inconel – The Ultimate Solution for Extreme Heat & Corrosion

Inconel (typically 600 or 601) is a nickel-chromium alloy famous for its outstanding performance under extreme temperatures and in highly corrosive environments.

Advantages:

• Exceptional High-Temperature Strength: Retains superior mechanical properties at temperatures exceeding 2000°F (1100°C).
• Outstanding Oxidation & Corrosion Resistance: Excellent resistance to chloride-induced stress corrosion cracking and performs well in both oxidizing and reducing atmospheres.
• Superior Creep Resistance: Resists deformation under high heat and pressure.

Limitations:

Highest cost.

Ideal For:

Aerospace and turbine engine components

Semiconductor diffusion furnaces

Glass manufacturing and melting equipment

Highly severe chemical processing environments



Therefore, all our cartridge heater sheath materials can be customized to your specific requirements. Whether you need a non-standard size, a specific alloy tweak, or engineering advice for your unique operating environment (such as special corrosive media or temperature profiles), our engineering team is ready to collaborate. We are committed to delivering a heating solution optimized for maximum performance and service life.



Contact us today to discuss your custom requirements.
