1. Structural Design & Manufacturing
Flat-Type:
- Features a uniform, planar surface with consistent thickness.
- Easier to manufacture due to simple geometry, reducing production costs.
- Typically uses standard alumina or silicon carbide ceramics with even heat distribution.

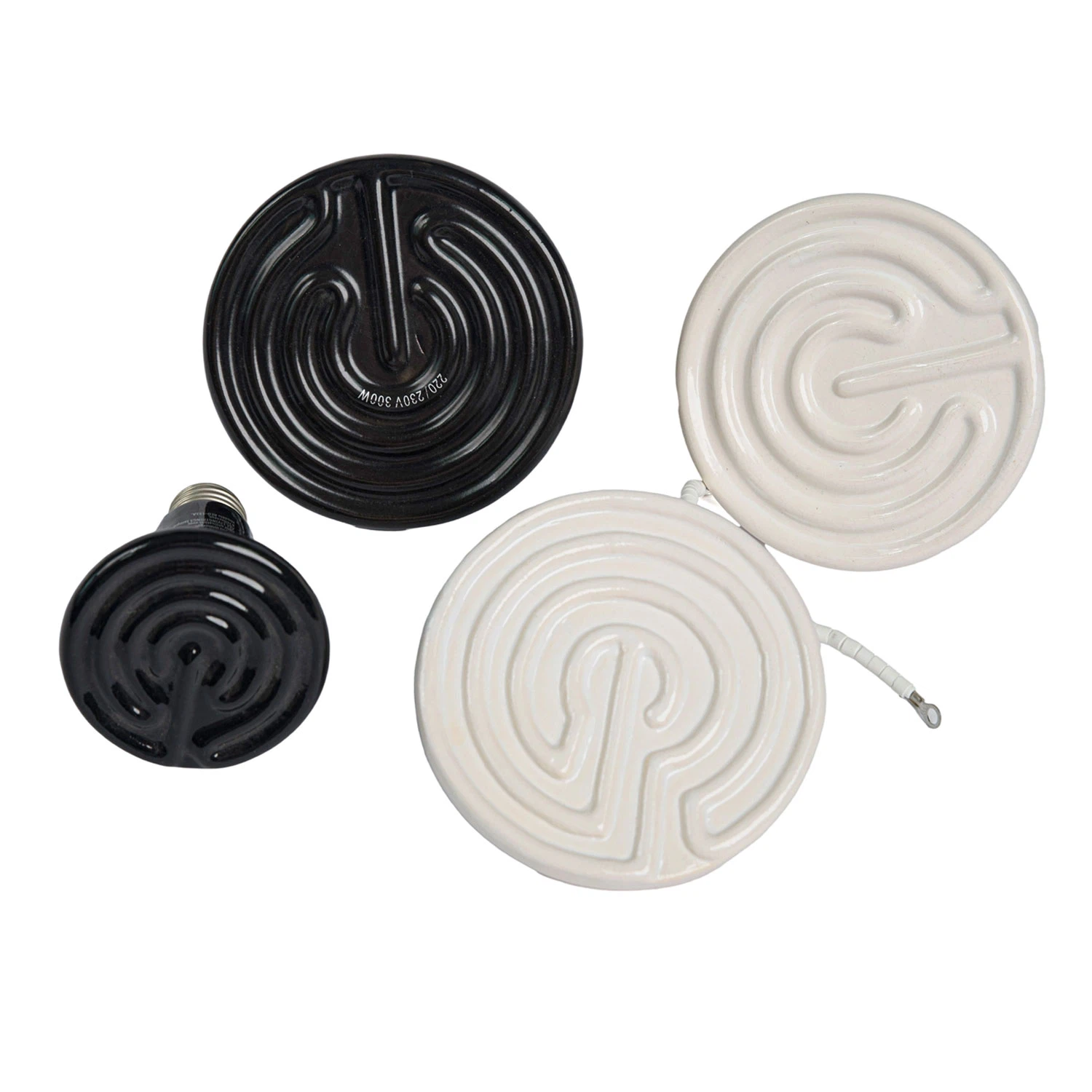

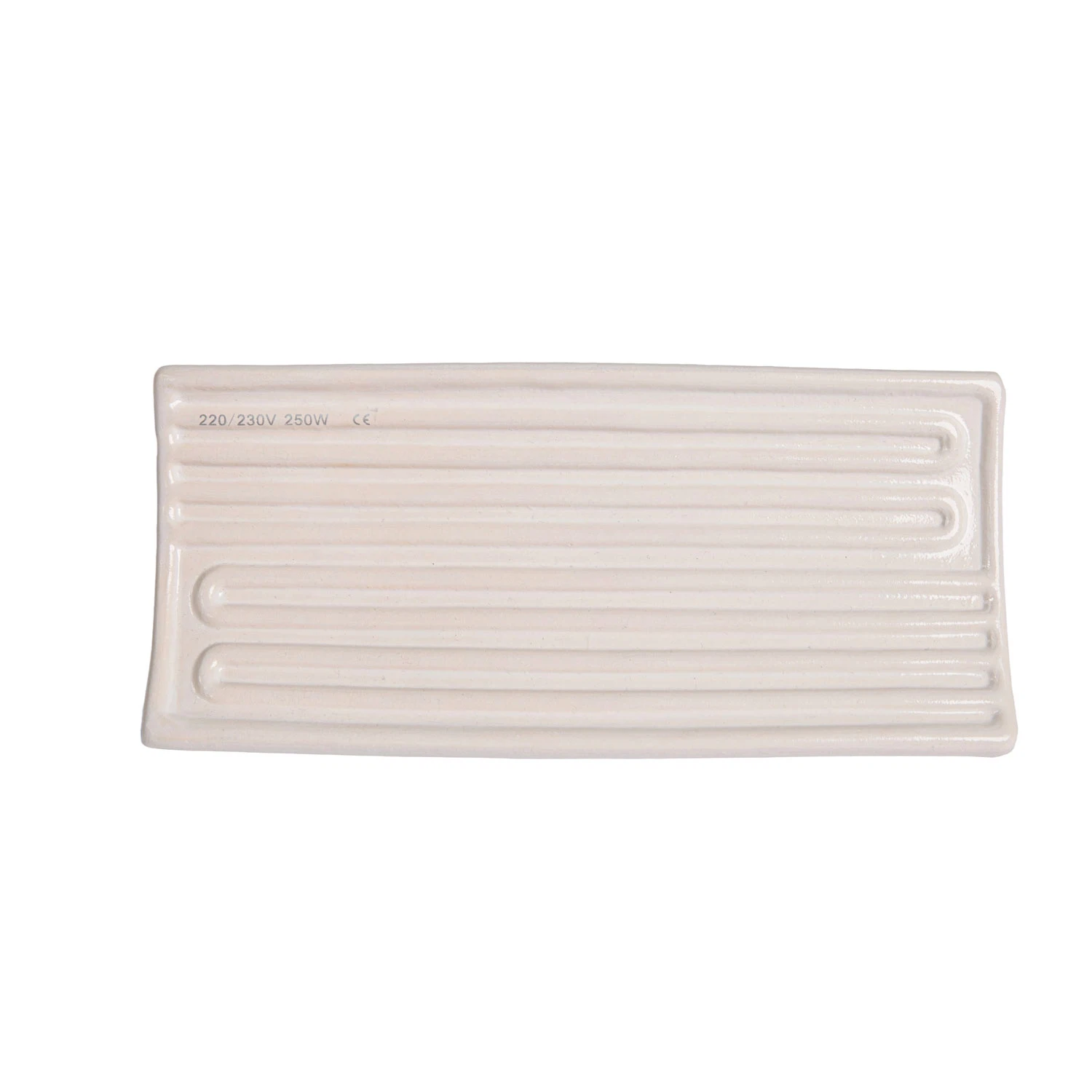

Curved-Type:
- Designed with a concave/convex or custom curvature to fit specific applications.
- Requires advanced molding/sintering techniques, increasing production complexity.
- Often reinforced to prevent structural stress cracks during heating cycles.
2. Thermal Performance
Flat-Type:
- Provides even heat dispersion across the entire surface, ideal for uniform heating (e.g., industrial drying).
- Higher risk of edge heat loss due to exposed flat edges.
Curved-Type:
- Focused heat projection due to curvature, improving efficiency in directional heating (e.g., HVAC systems).
- Reduced heat dissipation at edges, as the curved design minimizes exposed surface area.
3. Mechanical Durability
Flat-Type:
- Prone to thermal stress fractures under rapid temperature changes (thermal shock).
- Less resistant to mechanical impacts due to rigid flat structure.
Curved-Type:
- Curvature distributes stress more evenly, enhancing crack resistance.
- Better vibration resistance in dynamic environments (e.g., automotive heating systems).
4. Application Suitability
Flat-Type Best For:
- Industrial ovens, PCB preheating, and laboratory equipment requiring stable, uniform heat.
- Low-cost consumer appliances (e.g., electric heaters, cooking plates).
Curved-Type Best For:
- Pipe/wall-mounted heaters where curvature improves contact efficiency.
- Aerospace/automotive heating (e.g., defrosting curved windshields).
- Custom HVAC systems requiring directional heat flow.
5. Energy Efficiency
Flat-Type:
May require higher energy input to compensate for edge heat loss.
Curved-Type:
More energy-efficient in targeted applications due to reduced heat wastage.
Conclusion
The choice between flat and curved ceramic heating plates depends on:
- Heat distribution needs (uniform vs. directional).
- Mechanical/environmental stress (curved resists shocks better).
- Budget vs. performance trade-offs.
