Terminal block means terminating the process sensor (thermocouple, RTD or other transducers or sensors) inside the thermocouple head. Jaye industry supply KNE, KSE, KD, MAA & NAA series terminal blocks in ceramic and bakelite in 2 poles, 3 poles, 4 poles and 6 poles types.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic terminal block for thermocouple head in China, also supports custom service. Welcome to wholesale high quality ceramic terminal block for thermocouple head at competitive price from our factory.
Ceramic Terminal Block for Thermocouple Head
Terminal block means terminating the process sensor (thermocouple, RTD or other transducers or sensors) inside the thermocouple head. Jaye industry supply KNE, KSE, KD, MAA & NAA series terminal blocks in ceramic and bakelite in 2 poles, 3 poles, 4 poles and 6 poles types. The ceramic terminal block made by Jaye industry have the advantage of high mechanical strength, high temperature resistance, high chemical stability, and long life service time.
Specifications:
** Across fixing holes 27mm
** 45%Al2O3 ceramic block
** Nickel plated brass poles
** Stainless steel screws.
Terminal block: ceramic, bakelite
Available models: KNE, KSE, KB, DANA, NAA, TL, TS
You can choose 2, 3, 4, 5, 6 terminals

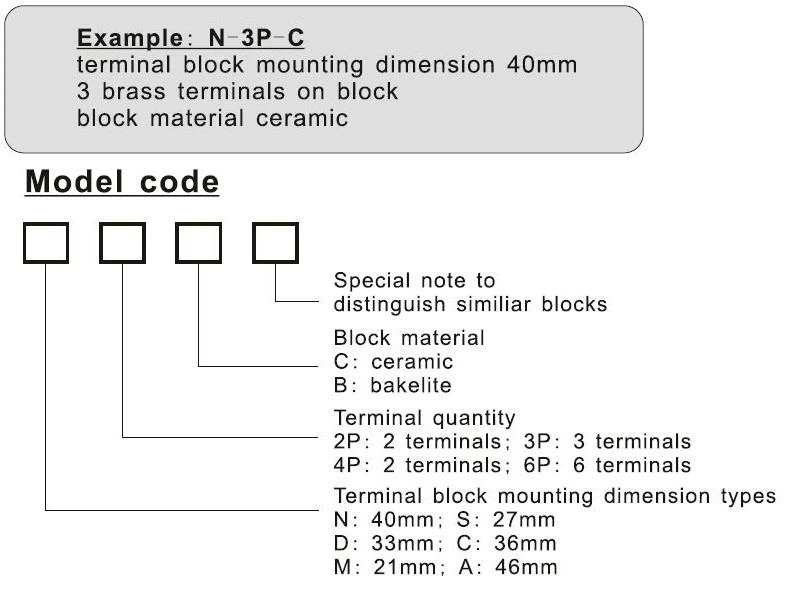

More types of terminal block can be offered, according the request below;
1)Terminal block can be Ceramic or Bakelite material , Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3, Bakelite material is also available, black color
2) Mounting holes distance can be different: 40mm, 36mm, 33mm, etc.
3) Terminal material:nickel coated brass
4) Screw material: stainless steel, nickel coated iron
Terminal Blocks
1) Available models: KSB,KSE,KSY,
2) Ceramic body
3) Mounting holes distance: 27mm
4)Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3
5)Bakelite material is also available, black color
6)Terminal material:nickel coated brass
7)Screw material: stainless steel, nickel coated iron

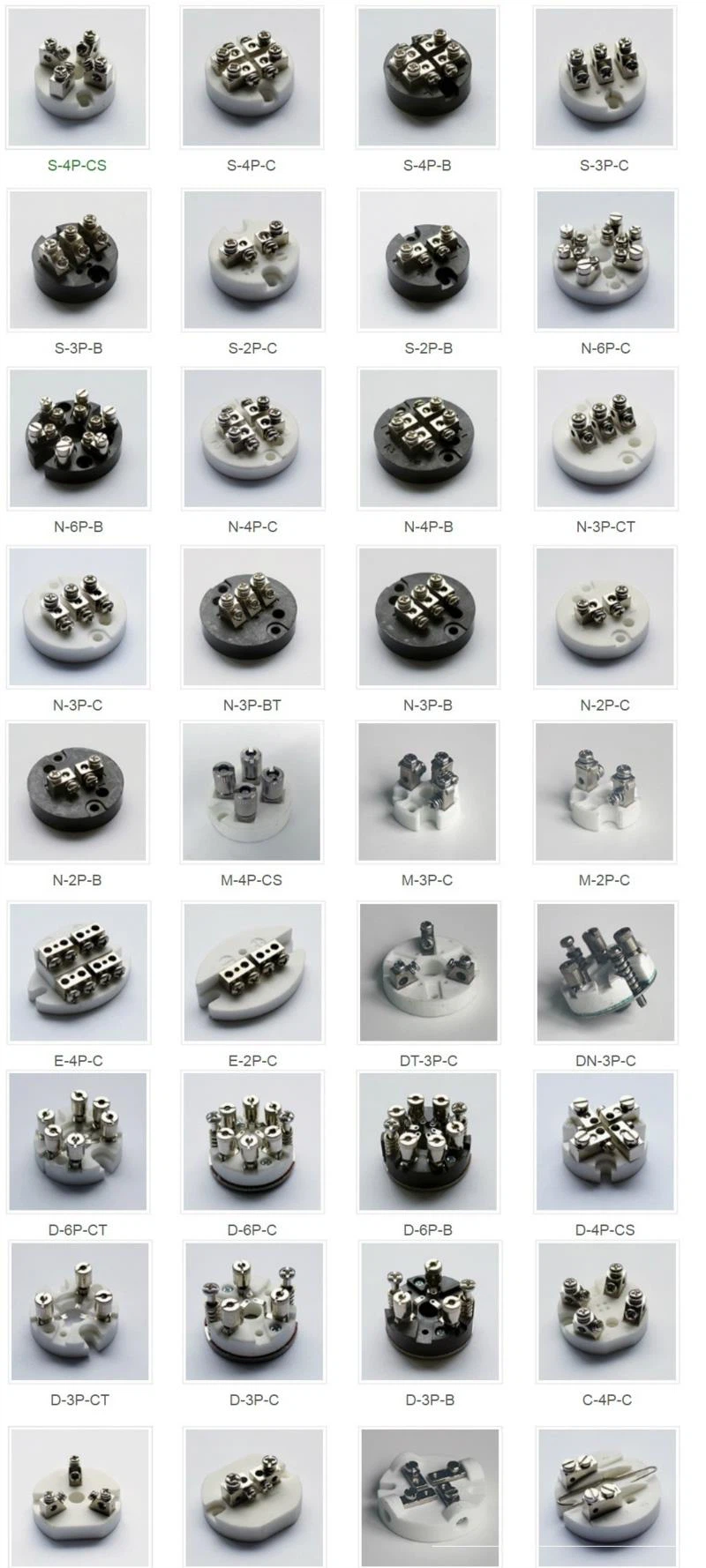

Types of Terminal Blocks:
