The MgO Ceramic Rod made by Jaye Industry used the high grade raw materials that contain at least 90% magnesium oxide (MgO). The MgO ceramic Rod made by Jaye industry own the features of excellent electrical insulation, high heat-shock resisting ability, high temperature resistance
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 4 holes mgo ceramic rod in China, also supports custom service. Welcome to wholesale high quality 4 holes mgo ceramic rod at competitive price from our factory.

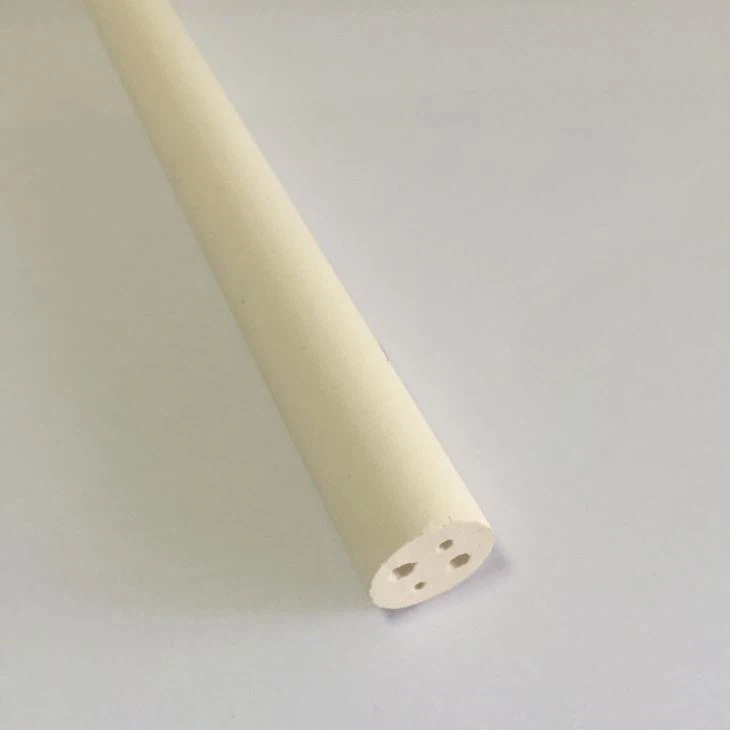

4 Holes MgO Ceramic Rod
The MgO Ceramic Rod made by Jaye Industry used the high grade raw materials that contain at least 90% magnesium oxide (MgO). The MgO ceramic Rod made by Jaye industry own the features of excellent electrical insulation, high heat-shock resisting ability, high temperature resistance,, high corrosion resistance, excellent thermal stability, good chemical stability and resistance. All the MgO ceramic Rod made with high precise process accurate, small hole size tolerance, smooth and beautiful surface. The MgO ceramic Rod made by Jaye industry own high reputation from all the customers from the world.
For the 4 hole MgO ceramic Rod made by Jaye industry, can be make with 4 same size holes or two big holes and two small holes. Jaye industry can customized the size of the holes and diameter of the MgO ceramic Rod based on customers’ heating elements requirements.
Normal Size:
OD | ID | Length |
1.4mm | 0.4mm | 200-300mm |
1.6mm | 0.4mm | 200-300mm |
1.8mm | 0.5mm | 200-300mm |
2.0mm | 0.5mm | 200-300mm |
2.2mm | 0.6mm | 200-300mm |
2.5mm | 0.7mm | 200-300mm |
3.0mm | 0.7mm | 200-300mm |
3.5mm | 1.0mm | 200-300mm |
4.0mm | 1.2mm | 200-300mm |
5.0mm | 1.4mm | 200-300mm |
6.0mm | 1.8mm | 200-300mm |
7.0mm | 1.9mm | 200-300mm |
8.0mm | 2.0mm | 200-300mm |
9.0mm | 2.2mm | 200-300mm |
10mm | 2.5mm | 200-300mm |
11mm | 2.7mm | 200-300mm |
12mm | 2.9mm | 200-300mm |
13mm | 3.1mm | 200-300mm |
14mm | 3.5mm | 200-300mm |
16mm | 4.0mm | 200-300mm |
18mm | 4.5mm | 200-300mm |
20mm | 4.5mm | 200-300mm |
Order Guide:
Jaye industry can customized all size of the MgO Ceramic Rod based on your requirements, but at least you need to let us know the below information:
1-The Tube Out Diameter
2-How many holes do you need
3-What is the diameter of the holes
4-What is the requested length of the MgO ceramic Rod
5-What is the order Quantity
