Mechanical Timer with Bell

Mechanical Timer with Bell

The Mechanical timer have the type with bell and without bell. Electric Mechanical oven timer made by Jaye industry has 5 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes. It is used for the timing of electric oven, microwave oven, health equipment and other electric heater.

product description

Application

Packing & Delivery

Quality

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mechanical timer with bell in China, also supports custom service. Welcome to wholesale high quality mechanical timer with bell at competitive price from our factory.



Mechanical Timer With Bell


The Mechanical timer have the type with bell and without bell. Electric Mechanical oven timer made by Jaye industry has 5 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes. It is used for the timing of electric oven, microwave oven, health equipment and other electric heater.


FEATURES

1.It would cut the power and stop the control system when working time to be ended;
2.Single current system. ON--OFF;
3.Nicely precise construction to mininize the operation trouble to almost zero ,high temperature resistance;
4.The timer will be stopped after alarming one voice. (turn off)

image001(001)


Technical parameters:

Time Setting Range

5min/15min/30min/60min/75min/90min/120min/180min

Contact Capacity

AC250V 16A

Time Setting Directing

CW. Clockwise

Working Directing

CCW. Counter clockwise

Operating Temperature

-10C to +125 C

Working Angle

270 degree / 5 degree

Insulation Resistance

100M or more 500V DC

Withstand Voltage

1 minute min. At 1500V AC, or 1 second min, at 1800V AC

Endurable Life

10000times or more, at 5 times/min

Operating Torque

3kgfcm

Release Torque

5% or less

Packing

200pcs/CTN
CTN SIZE 42.5X30X30.5CM
N.W.17KG
G.W.18KG

Certificates

UL, VDE, CQC


Jaye industry specializes in producing various electric Mechanical timers, among which the high-temperature resistant oven timer product has passed the safety and

system certifications such as UL, TUV, CQC, CB, and CE. All the products are in accordance with the instruction of EU ROHS, REACH and other environmental requirements. From designing to processing and to manufacturing, all the products have passed the ISO9001: 2008 International Quality and Management System Certification.


Hot Tags: mechanical timer with bell, China, manufacturers, suppliers, factory, wholesale, custom, price, electric, high quality, DKJ Y Timer, 15 Minute Mechanical Timer, Mechanical Electric Timer, Mechanical Timer Switches, 60 Minute Mechanical Timer, Belling Cooker Timer

Application-Timer

Packing & Delivery

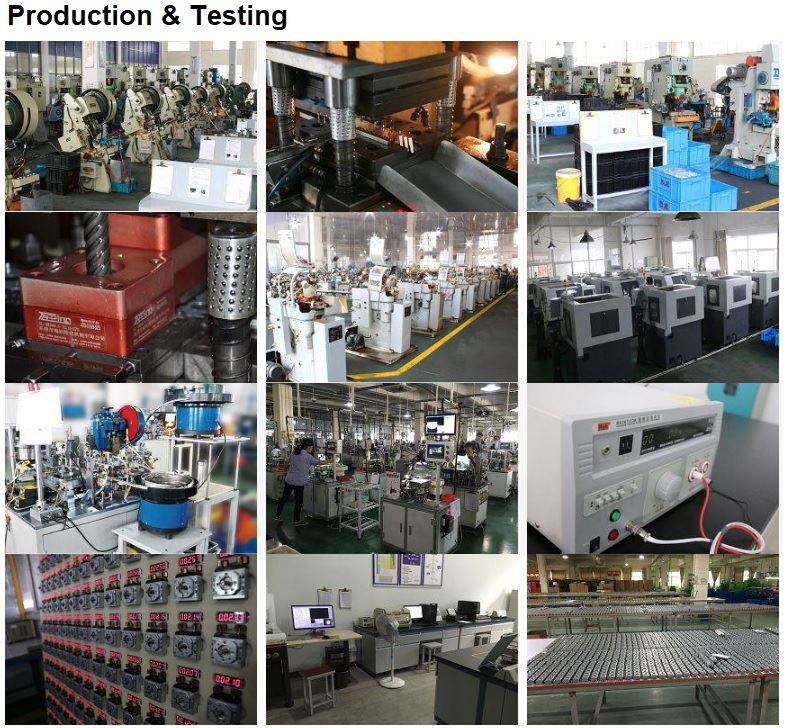

Quality-Timer
