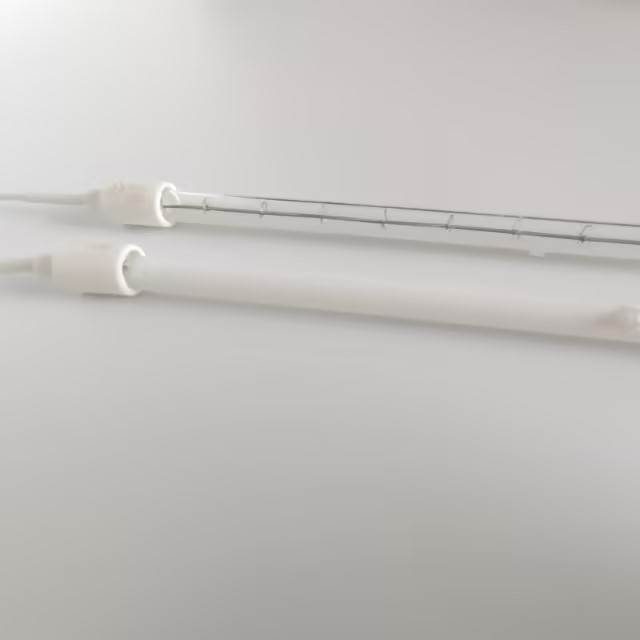

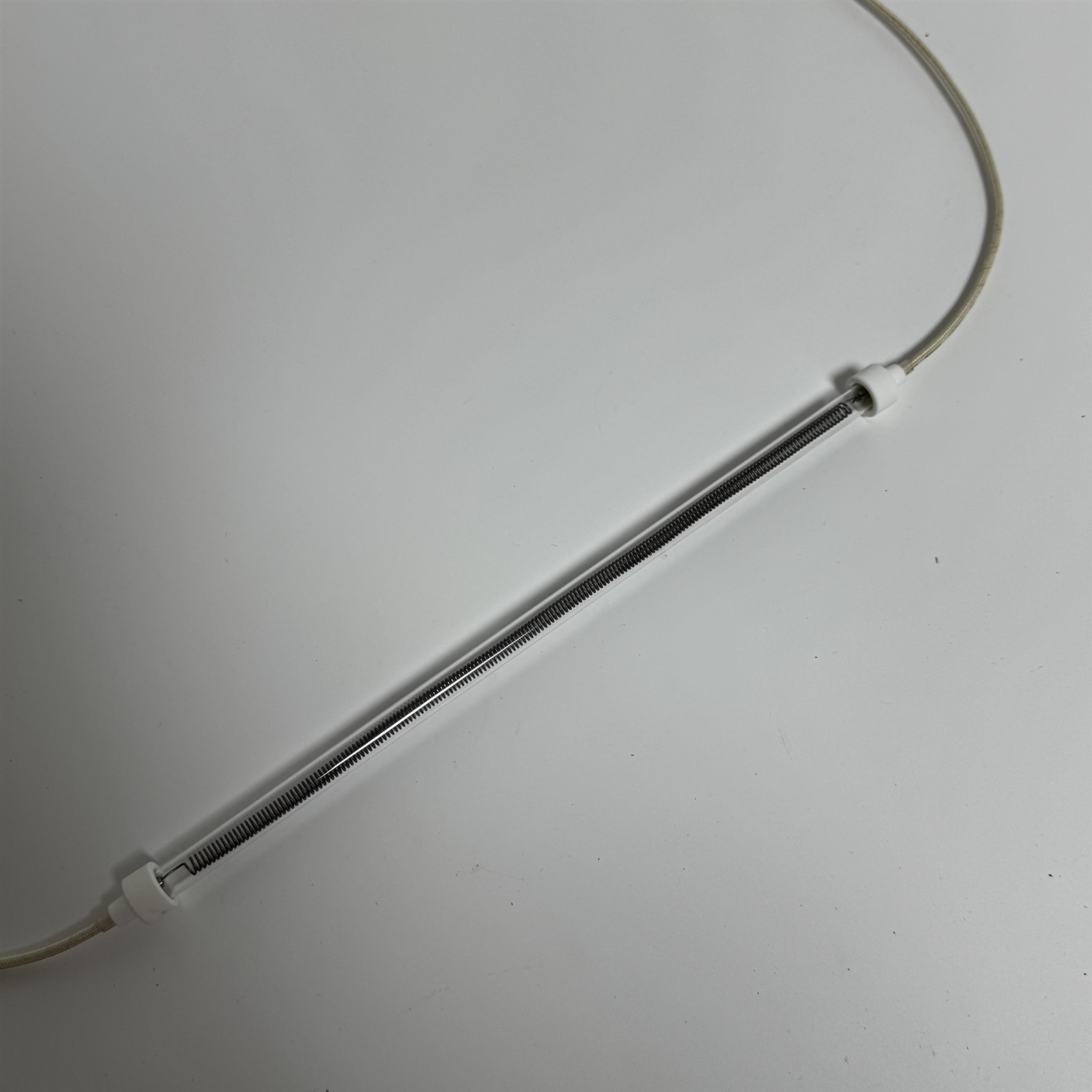

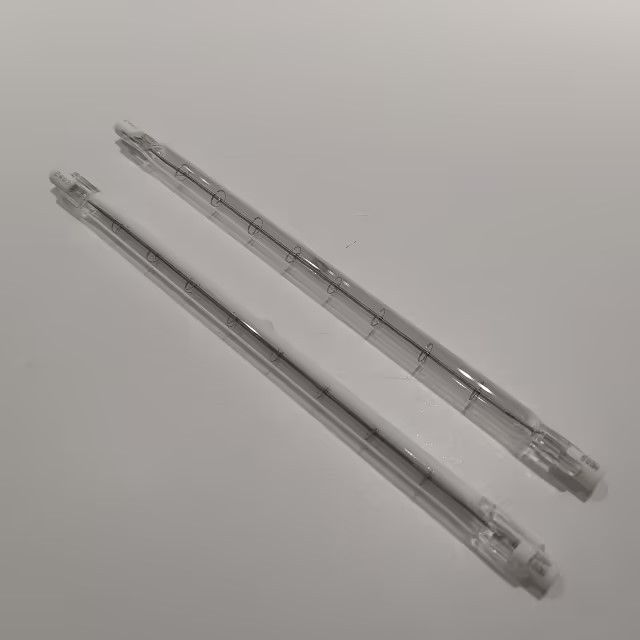

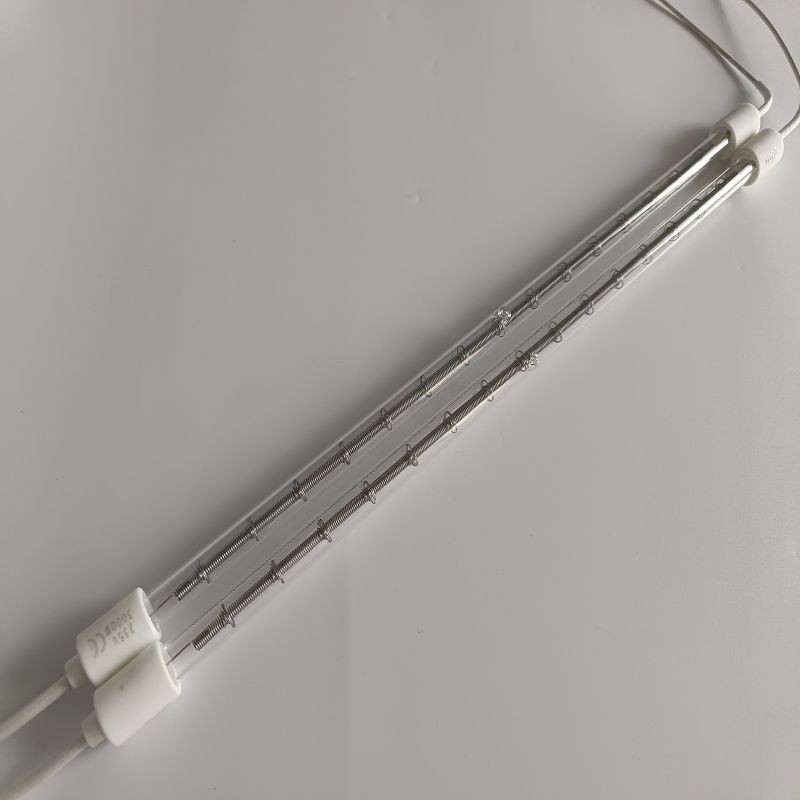

Our Infrared Halogen Quartz Heating Tubes are designed to provide high-intensity short-wave infrared radiation with almost instantaneous response for industrial processes that require speed, efficiency, and precise control over heating. The center of the tube consists of voltage heated tungsten filaments suspended in non-pressurized quartz glass filled with halogen gas. This generates a brilliant light source that rapidly responds to power input. In fact, over 90% of power consumption is converted to infrared heat, allowing for non-contact heating without compromising energy efficiency.
Our Infrared Halogen Quartz Heating Tubes are designed to provide high-intensity short-wave infrared radiation with almost instantaneous response for industrial processes that require speed, efficiency, and precise control over heating. The center of the tube consists of voltage heated tungsten filaments suspended in non-pressurized quartz glass filled with halogen gas. This generates a brilliant light source that rapidly responds to power input. In fact, over 90% of power consumption is converted to infrared heat, allowing for non-contact heating without compromising energy efficiency.
| Voltage | 24-480V |
| Power | 100-4000W |
| Diameter | 10mm, 12mm,14mm,18mm |
| Length | 50mm to 500+ mm,Customized |
| Max working temperature | 600 degrees |
| Filament Material | Tungsten |
| Tube Coating | Clear,Half white/gold plated reflection,Ruby,Jacketed,All gold plated |
| Lamp Type | Short-Wave / Near-Infrared Halogen Lamp |
1-Instant On/Off: Offers full power output in a split second, avoiding warm up and wasted energy in idle operation.
2-High-Efficiency Conversion: Turns over 90% of input power directly into usable infrared radiation, reducing convective heat loss and cost of operation.
3-Accurate Process Control: Short-wave IR is highly absorbed by many materials (plastics, water-based coatings, textiles) creating the opportunity for selective heating and consistent process repeatability.
4-Compact High-Density Source: Delivers high power from a slim, compact tubular form factor that can be easily fit into small machines.
5-Self-Cleaning Filament: The halogen cycle will redeposit evaporated tungsten back onto the filament, continually supporting high output and longer life in the output compared to standard quartz tubes.
This Infrared Halogen Quartz Heating Tubeis ideal for rapid, non-contact heating and drying across industries.
1-Industrial Drying & Curing: Instant drying of inks, coatings, and adhesives on paper, film, and metal.
2-Plastic Thermoforming & Welding: Uniform pre-heating of sheets and precise weld seam activation.
3-Food Processing: Browning, cooking, and heat-setting in commercial production lines.
4-Semiconductor Manufacturing: Rapid thermal processing (RTP) in controlled environments.
5-Printing & Packaging: Drying in high-speed digital and flexographic printing presses.
Elevate your thermal process with the speed and efficiency of our halogen quartz IR technology. As your dedicated manufacturer, we are ready to deliver a standard solution or co-design a fully custom OEM tube for your application.
Contact us today with your technical requirements for a detailed proposal and expert support.
