Quartz Infrared Heaters Also known as halogen heating tube: a tungsten filament is placed in a quartz shell, and the filament's luminous spectrum is in the range of 2400-3500K through the design of the filament and the shell. Divided into civil and industrial use. Civilian ones are mainly...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of quartz infrared heaters in China, also supports custom service. Welcome to wholesale high quality quartz infrared heaters at competitive price from our factory.

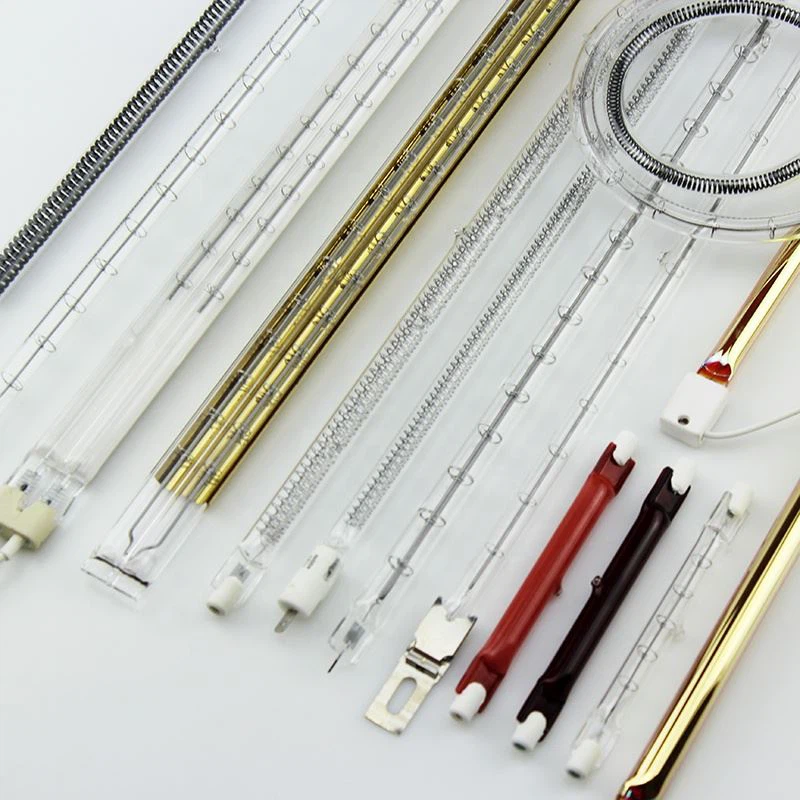

Quartz Infrared Heaters
Also known as halogen heating tube: a tungsten filament is placed in a quartz shell, and the filament's luminous spectrum is in the range of 2400-3500K through the design of the filament and the shell.
Divided into civil and industrial use.
Civilian ones are mainly used for heaters and convection ovens.
Industry is suitable for almost all industries that require heating: printing and dyeing, shoemaking, painting, food, electronics, medicine, textiles, wood, paper, automobiles, plastics, furniture, metals, heat treatment, packaging machinery, etc.
The far-infrared heating tube has the remarkable characteristics of high density, high thermal efficiency, and low energy consumption. Compared with ordinary infrared heating, heating equipment such as heaters and oven drying tunnels that use this tube as a heating element can greatly improve work efficiency, shorten the heating cycle, save equipment space, save energy, and reduce production costs.
﹡The wavelength can be controlled between 0.76um-2um and 2um-16um. Different wavelength heating tubes can be selected according to the physical characteristics of the heated object. The thermal efficiency can reach more than 86%.
﹡The thermal inertia of the high infrared heating tube is very small. After energizing, it can reach 50% of the rated power in 0.8 seconds, 80% of the rated power in about 1 second, and run at the rated power in about 2 seconds, with rapid heating and cooling.
﹡The high-infrared heating tube can spray heavy metals such as gold and titanium on a certain part of the tube wall to form a directional reflection layer, which can greatly improve the thermal efficiency and reduce the temperature of the reflector.
﹡The service life of high infrared heating tube is 3000-5000 hours (according to different use environment),
﹡The high-infrared heating tube itself is small in size, but the power can be very large. For example, the power of a heating tube with a diameter of 12mm and a length of 300mm can reach 1KW. The power of our company's products ranges from 300W to 6000W, the voltage is 110V, 220V, 380V, and the length is from 60mm to 2000mm. There are finished products, and various non-shaped tubes can be produced according to the needs of users.
