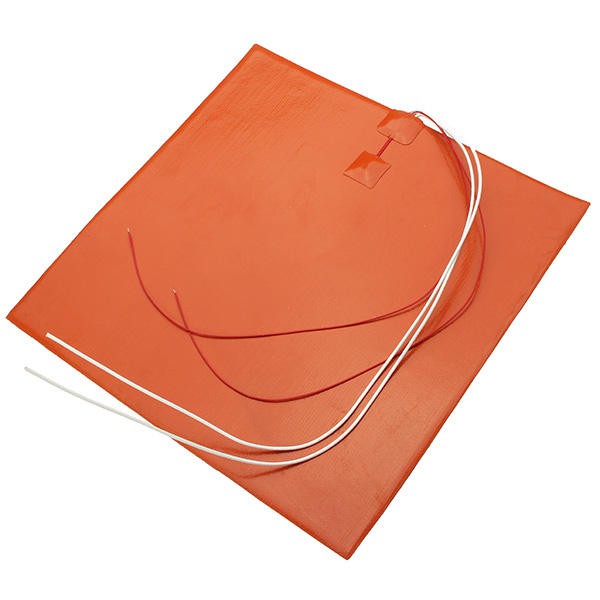

Jaye industry can make the silicone rubber heater for 3D printing bed, The professionally-produced "silicon rubber heater" by Jaye is a planar heating element with superior softness performance. It has softness unmatched by traditional metal heaters. It can be made into any shape to...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicone rubber heater for 3d printing bed in China, also supports custom service. Welcome to wholesale high quality silicone rubber heater for 3d printing bed at competitive price from our factory.
Jaye industry can make the silicone rubber heater for 3D printing bed, The professionally-produced "silicon rubber heater" by Jaye is a planar heating element with superior softness performance. It has softness unmatched by traditional metal heaters. It can be made into any shape to closely fit the heated object to achieve maximum thermal efficiency, Fast heating speed, even heat. It can achieve constant temperature heating, and can also be selected by various temperature control methods to achieve free temperature adjustment. As a customized product, customers can choose the size, shape, voltage, power, temperature and installation method of the silicone rubber heater according to the usage. The service life is more than five years.
Dimensions and thickness of silicone rubber heater:
Thickness: conventional 1.5-1.8mm, can be thickened as request.
Minimum size: 10 x 20mm
Maximum size: 1200 x 5000mm
Shape: any shape as designed.
Temperature characteristics of Silicone rubber heater:
Continuous use temperature: ≤200 ℃
Instantaneous maximum temperature resistance: 250 ℃
Ambient temperature: ﹣60-250 ℃
Temperature control: temperature can be directly constant, or a variety of temperature control devices can be used to adjust the temperature.
Electrical performance:
Rated voltage: 1-480V, AC or DC
Power density: 0.01-2w / cm2, recommended power density: 0.1-0.8w / cm2
Power deviation: ± 8%
Insulation withstand voltage: 1500V / min
Insulation resistance: ≥1000MΩ
Mechanical compression: 100KG / cm2
Wire tension: 80N
Ordering guide:
1. What substance do you need to heat?
(Such as water, oil, resin, iron, copper, air, plastic, nitrogen, etc.)
2. How much do you need to heat this substance?
3. What is the power supply voltage?
4. What is the initial temperature?
5. What is the final temperature?
6. After the heater starts, how quickly do you want to reach the final temperature?
7. Please describe the application of the product in detail
