High temperature glass fiber etched silicone rubber heater made by Jaye industry is composed of two pieces of glass fiber cloth and silica gel glass fiber cloth made of two pieces of pressed silica gel. Etching (0.02mm) metal foil plate be pressed onto silica gel sheet.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature glass fiber etched silicone heater in China, also supports custom service. Welcome to wholesale high quality high temperature glass fiber etched silicone heater at competitive price from our factory.

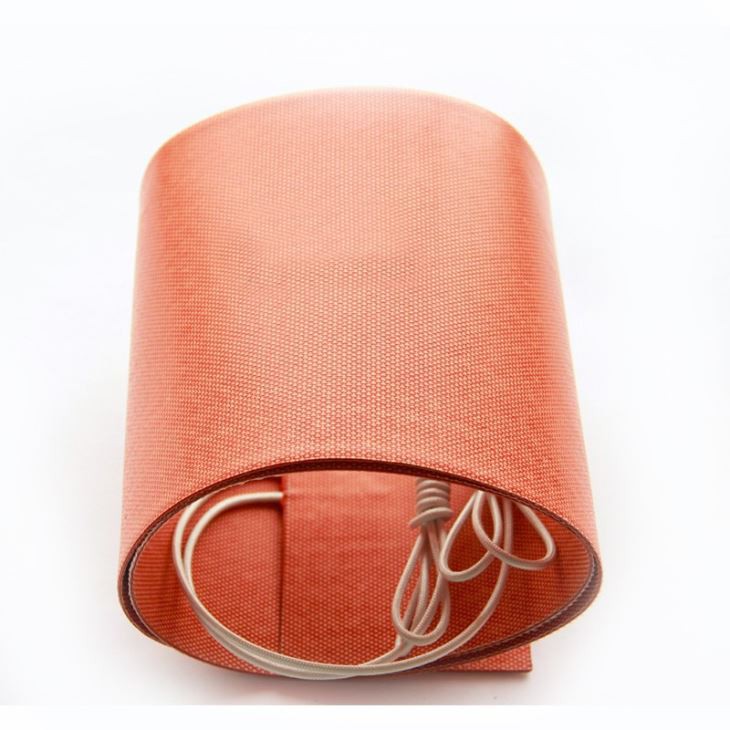

High Temperature Glass Fiber Etched Silicone Heater
High temperature glass fiber etched silicone rubber heater made by Jaye industry is composed of two pieces of glass fiber cloth and silica gel glass fiber cloth made of two pieces of pressed silica gel. Etching (0.02mm) metal foil plate be pressed onto silica gel sheet. Usually nickel alloy as resistance element.The imported silicone cloth material is produced from half raw rubber and half cooked rubber, and a silicone rubber heating belt made by a high-temperature hot-press vulcanizing machine.
Technical parameters of Glass Fiber Etched Silicone Heater:
1. Maximum temperature resistance of insulating material: 250 ℃.
2. Maximum service temperature: 250 ℃ ~ 300 ℃.
3. Insulation resistance: ≥ 5m
4. Withstand voltage strength: 1500V / 5S
5. Power deviation 5 ± 8%
6. Max. 1000-x8000 min. 20m × 20 thickness 1.5mm (min. 0.8mm max. 4mm) lead length: Standard 200mm, please contact us if it exceeds the above size.
Heating pad with thermostat:
1. The power density of 1 ~ 5W / cm 'will change greatly due to different heating conditions and different temperature control methods. Please contact our company when selecting.
2. Surface temperature when the heater is suspended in 20 cm 'still air.
3. According to the use of the environment, the material and shape of the heating object, the temperature of the electric heater will change.
