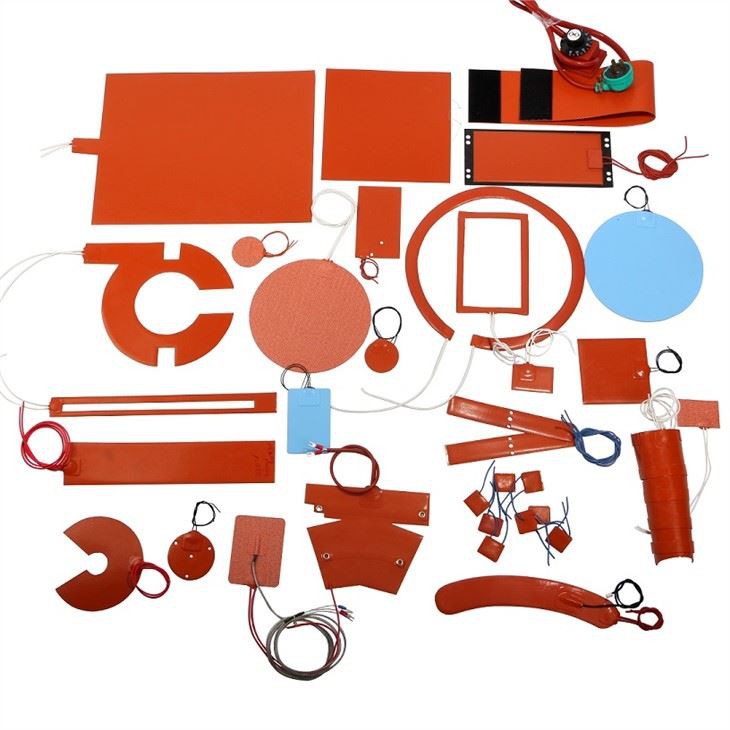

Silicone rubber flexible heaters made by Jaye is a flake-shaped product (generally the standard thickness is 1.5mm, some times, we also call them silicone heater sheet or silicone heating film), which has good flexibility and can be in close contact with the heated object. It has flexibility and...
Silicone rubber flexible heaters made by Jaye is a flake-shaped product (generally the standard thickness is 1.5mm, some times, we also call them silicone heater sheet or silicone heating film), which has good flexibility and can be in close contact with the heated object. It has flexibility and is easier to be close to the heating body, Jaye makes the shape can be changed to your design heating according to requirements, we can make beyong your immagination, so that heat can be transferred to any place needed.
Characteristic
1. The highest temperature resistance of insulating materials: 250℃
2. Maximum operating temperature: 250℃-300℃
3. Insulation resistance: ≥5MΩ
4. Compressive strength: 1500v/5s

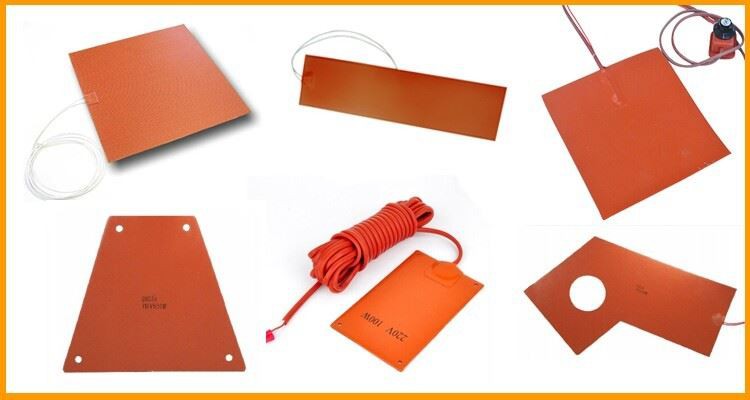

Can be made into various shapes and sizes (such as round, oval, cone).

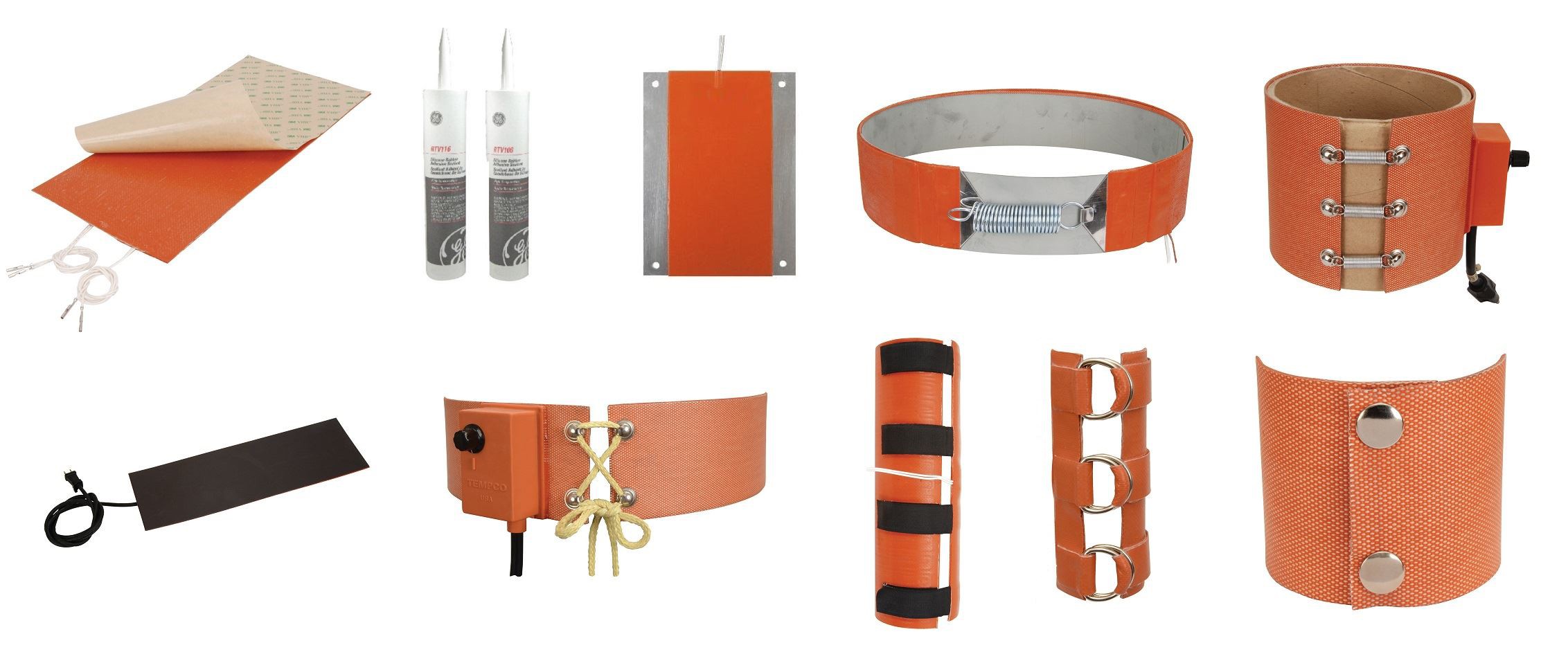

Installation
Due to the different shapes of this product, various methods such as pressing, double-sided tape sticking, punching positioning, room temperature vulcanization, etc. can be installed and used according to the actual site. The safe life span is as long as five years.
The Silicone rubber flexible heaters made by JAYE has excellent aging resistance and weather resistance. As the surface thermal conductive material of the electric heating sheet, it can reasonably avoid the surface cracking of the product and improve the impact toughness. Silicone electric heating film has excellent resistance to biological erosion. Silicone electric heating film can be used in damp, cold, irritating gas and other harsh environments.
