The stainless steel electric mica heating plate is made of a 0.38-0.5mm stainless steel plate, and the inside is made of high-insulation and high-temperature resistant mica as a heating insulation core, and various standard iron-chromium, nickel-chromium round or flat resistance wires are evenly wound as the heating element. Then after processing into various required shapes.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of stainless steel electric mica heating plate in China, also supports custom service. Welcome to wholesale high quality stainless steel electric mica heating plate at competitive price from our factory.
The stainless steel electric mica heating plate is made of a 0.38-0.5mm stainless steel plate, and the inside is made of high-insulation and high-temperature resistant mica as a heating insulation core, and various standard iron-chromium, nickel-chromium round or flat resistance wires are evenly wound as the heating element. Then after processing into various required shapes. It can be wired according to user needs. And the specifications, voltage and power can be provided by the customer. The maximum power can be 3.5 watts per square centimeter.
Performance:
1. Insulation resistance: ≥100 MΩ.
2. Withstand voltage: 1500V/1min.
3. Temp. resistance: 600℃.
4. Power deviation range: ±5%.
Technical Parameter:
1. Voltage: customized within in 380V
2. Power: up to 1000W
3. Working temp.: from -20 to 600℃
4. Shape and size Designed according to customer needs

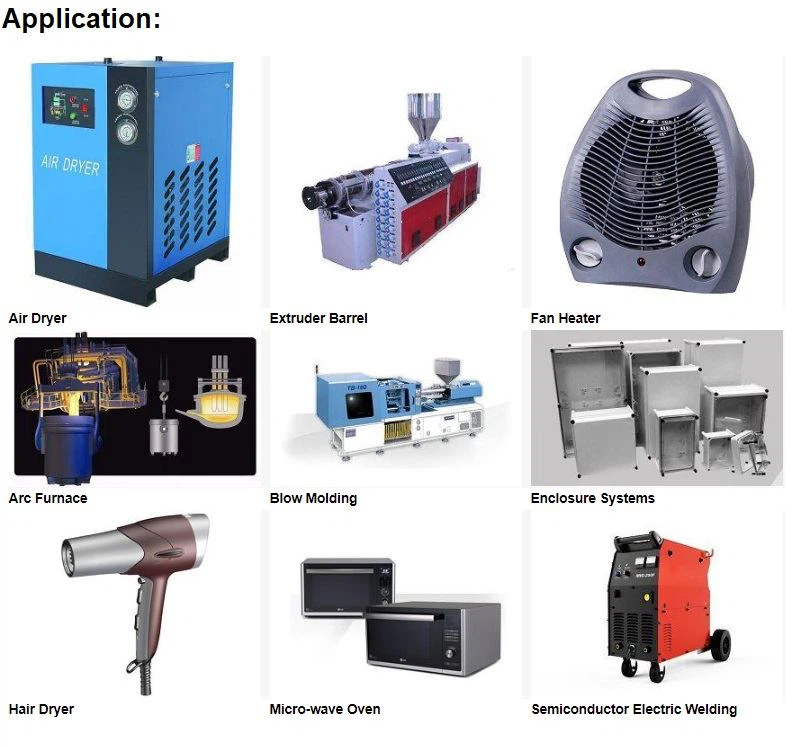

Applicable Range:
1. It is widely used as heating parts on various machinery and equipment, such as plastic presses, copiers, printers, packaging machines, slicers, vulcanizers, washing machines, fax machines, etc.;
2. Various industrial and agricultural heating occasions, such as mold heating, plastic machinery, medical treatment, drying equipment and other heating and drying devices;
3. For electric heating of instruments and solutions in school laboratories and scientific research institutes.

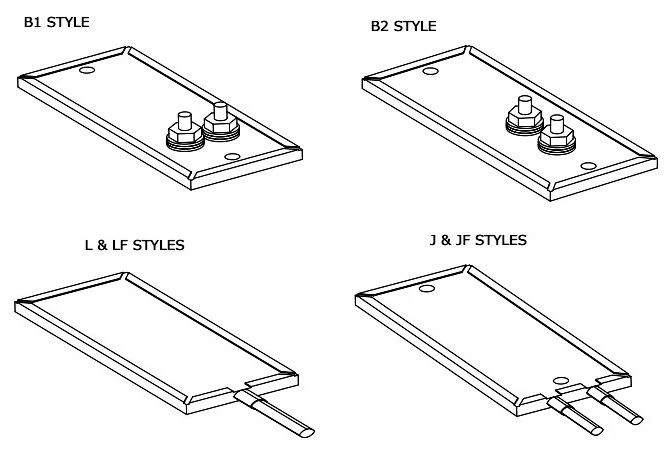

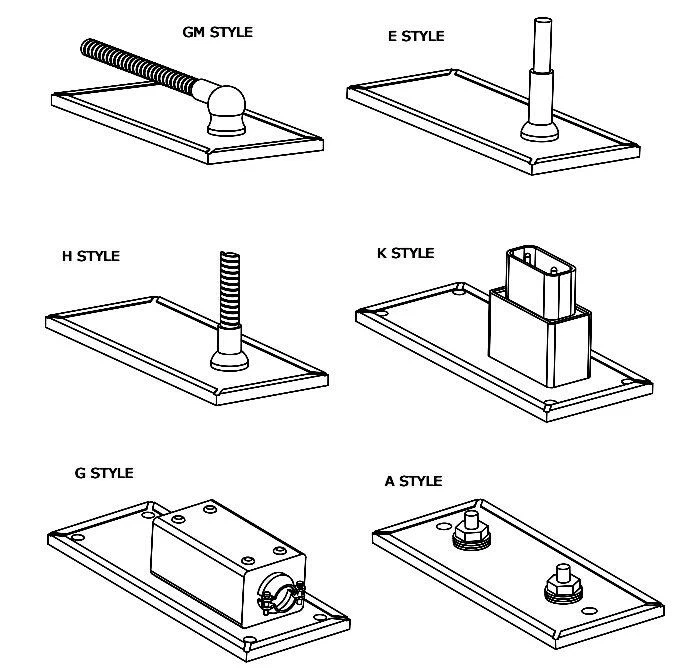

Different Types are available:
1) Junction box
2) High temperature plug
3) High temperature wire
4) Metal hose
5) Metal braided wire
6) Ceramic block
7) Screw pin(M4,M5 etc)
All the stainless steel electric mica heating plate adapt high quality material and strictly controlled. Only the high quality products can get from our factory. We are not the right choise if you need the low quality.
Hot Tags: stainless steel electric mica heating plate, China, manufacturers, suppliers, factory, wholesale, custom, price, electric, high quality, Stainless Steel Strip Heater Mica Insulated
