Introduction A capillary thermostat is a temperature control and safety component commonly used in water distillers. Its primary function is to monitor temperature and regulate the heating element to ensure efficient water distillation while preventing overheating and equipment damage. Water...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of capillary thermostats in water distiller devices in China, also supports custom service. Welcome to wholesale high quality capillary thermostats in water distiller devices at competitive price from our factory.

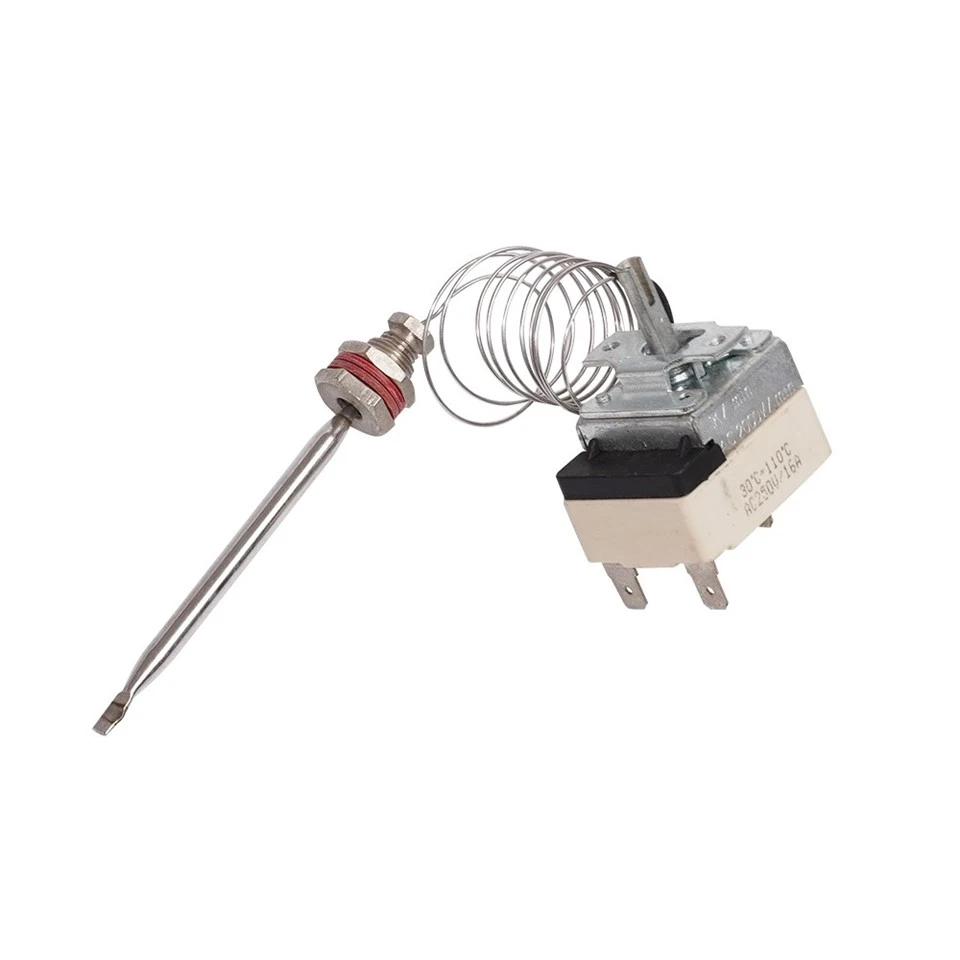

A capillary thermostat is a temperature control and safety component commonly used in water distillers. Its primary function is to monitor temperature and regulate the heating element to ensure efficient water distillation while preventing overheating and equipment damage.
Water distillers operate by heating water until it evaporates, then condensing the steam into purified water. Accurate temperature control is essential throughout this process, making capillary thermostats a reliable and widely adopted solution.
The sensing bulb is installed near the boiling chamber or heating surface of the water distiller. As the water temperature rises, the fluid inside the sensing bulb expands.
The expansion creates pressure within the sealed capillary tube. This pressure is transmitted from the sensing bulb to the thermostat's switching assembly.
When the preset temperature is reached, the pressure causes the internal diaphragm or bellows mechanism to move. This movement opens or closes an electrical contact.
Depending on the design of the distiller:
The thermostat may switch off the heating element when a target temperature is reached.
It may cycle the heater on and off to maintain a stable operating temperature.
It may function as a high-temperature safety cut-out.
As the temperature drops, the pressure inside the capillary system decreases. The thermostat returns to its original position and can automatically restore power to the heating element if required.
Parameter | Specification |
Product Name | Capillary Thermostat |
Application | Water Distiller Devices |
Function | Temperature Control & Overheat Protection |
Sensing Type | Liquid/Gas Filled Capillary System |
Temperature Range | 30°C to 180°C (customizable) |
Common Set Point | 100°C – 160°C(customizable) |
Temperature Tolerance | ±3°C to ±5°C(customizable) |
Capillary Length | 500 mm – 3000 mm(customizable) |
Bulb Diameter | 6 mm – 8 mm |
Contact Rating | 16A 250VAC (typical) |
Capillary thermostats offer several benefits for water distiller manufacturers and users:
Reliable mechanical operation
No external power required for temperature sensing
Fast response to temperature changes
High durability in hot environments
Cost-effective design
Easy installation and maintenance
Under normal operating conditions, a high-quality capillary thermostat can perform more than 100,000 switching cycles and provide many years of reliable service.
Yes. Most capillary thermostats are replaceable components. When replacing a thermostat, it is important to match the temperature rating, capillary length, electrical rating, and mounting configuration specified by the manufacturer.
Typical capillary lengths range from 500 mm to 3000 mm. The required length depends on the distance between the sensing bulb and the thermostat mounting location.
