When the temperature of the controlled object changes, the working medium in the temperature sensing part of the thermostat will generate the corresponding physical phenomenon of thermal expansion and cold contraction (the change of working medium volume), and the capsule connected with the...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of liquid expansion adjustable capillary thermostat in China, also supports custom service. Welcome to wholesale high quality liquid expansion adjustable capillary thermostat at competitive price from our factory.
When the temperature of the controlled object changes, the working medium in the temperature sensing part of the thermostat will generate the corresponding physical phenomenon of thermal expansion and cold contraction (the change of working medium volume), and the capsule connected with the temperature sensing part will generate expansion or contraction. Through the lever principle, the on-off action of the switch is driven to achieve the goal of constant temperature. Capillary thermostat (liquid expansion temperature controller) has the characteristics of accurate temperature control, stable and reliable, small temperature difference between start and stop, large temperature control range, large overload current and so on.

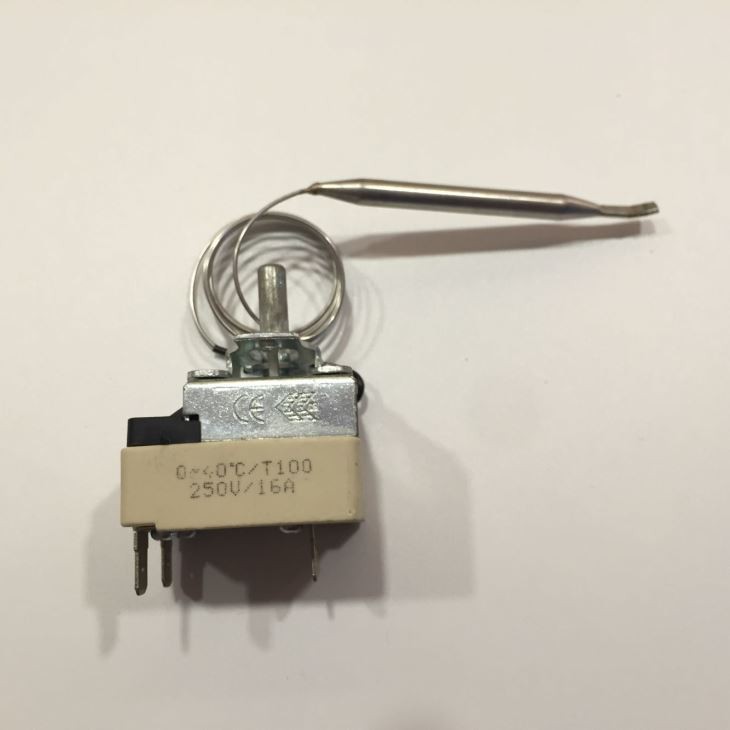

Technical Parameters of Liquid Expansion Adjustable Capillary Thermostat:
Model: WY85-C
Type: liquid expansion material: Ceramic
Fusing speed: Fast (F)
Volume type: Small
Shape type: Spiral
Standard type: European gauge
Rated voltage type: Safe voltage
Maximum voltage: 250 (V)
Holding current: 16 (A)
Maximum current: 16 (A)
Temperature range:-35°C~350°C
Tube material:Copper
Shell material: composite board / color zinc
Lifetime:100,000 cycles
Certificate: CE,TUV,UL,ROHS,CQC,ISD9001
Application:
It is mainly used for temperature control in home appliance industry (bath machine, drum washing machine, heater), electric heating equipment (stainless steel automatic water heater, electric fryer, grill, electric oven, food machinery, medical equipment), refrigeration industry (kitchen freezer, fresh-keeping cabinet, cold storage, ice maker, fish pond, cold drink machine, heater).
